Full T1 Configuration Using PPP
WPIM-RT1 User’s Guide 3-11
3.3 FULL T1 CONFIGURATION USING PPP
This section provides step-by-step instructions for configuring the
WPIM-RT1 to use a full T1 circuit in a PPP environment. This simplified
example assumes the setup shown in
Figure 3-6 using a CSX400 with a
WPIM-RT1 installed at Site #1. Configurations may vary depending on
the host platform.

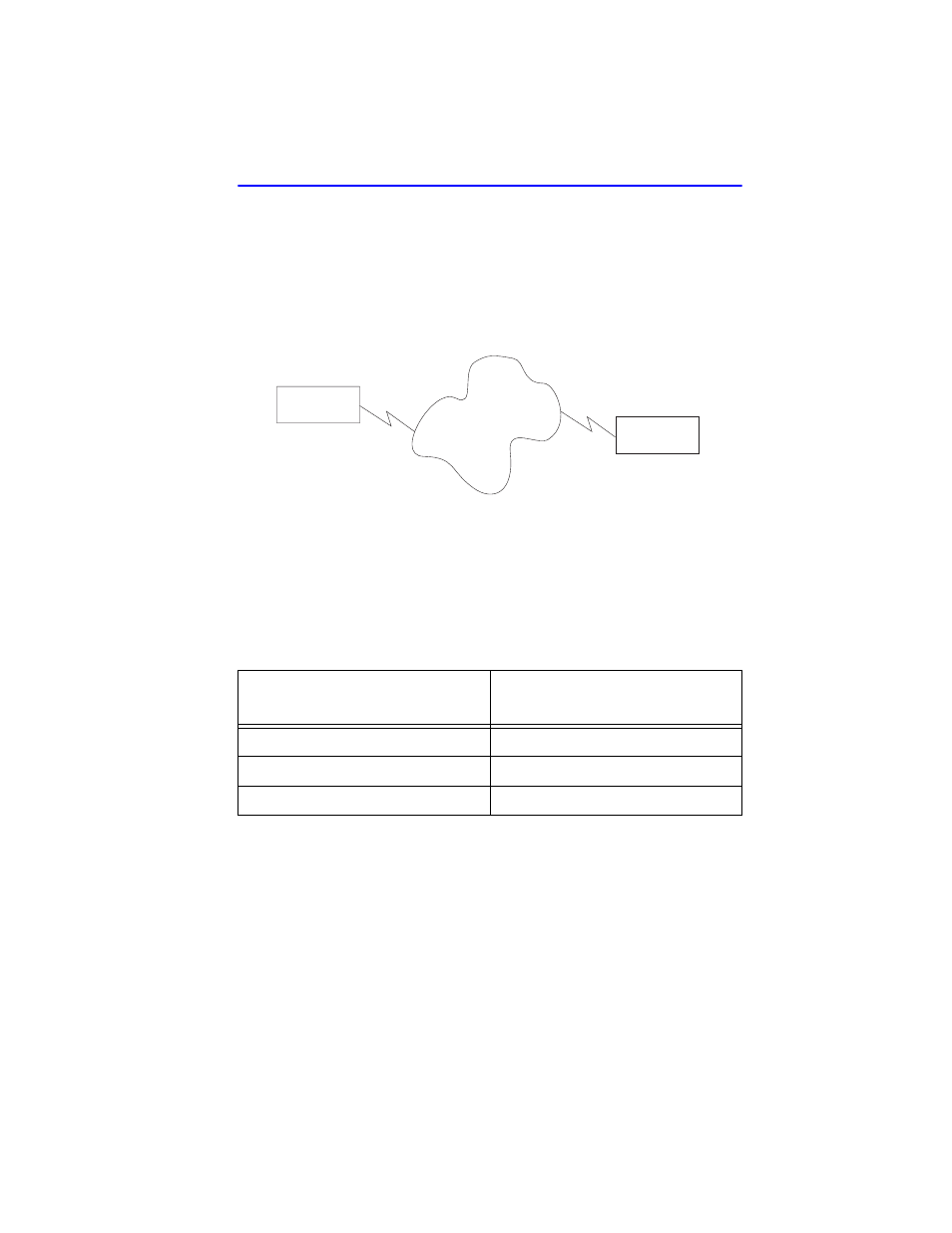

Figure 3-6 Full T1 Configuration
The line configuration information shown in Table 3-1 must be supplied
by the service provider.
Table 3-1 Telco Configuration Information
Configuration Information
Required by User
Configuration Information
Supplied by Service Provider
Line Coding B8ZS or AMI
Frame Type ESF or D4
Clock Source Loop Timing or Local Timing
SITE #1
Telco Cloud
24 Timeslots
24 Timeslots
SITE #2
1482_05
