Installing the WPIM-RT1
WPIM-RT1 User’s Guide
2-3
4.
Press down firmly on the WPIM-RT1 until the pins slide all the way
into the connector. Ensure that the WPIM-RT1 seats flush on the
standoffs.
5.
Secure the WPIM-RT1 to the three standoffs with the WPIM screws.

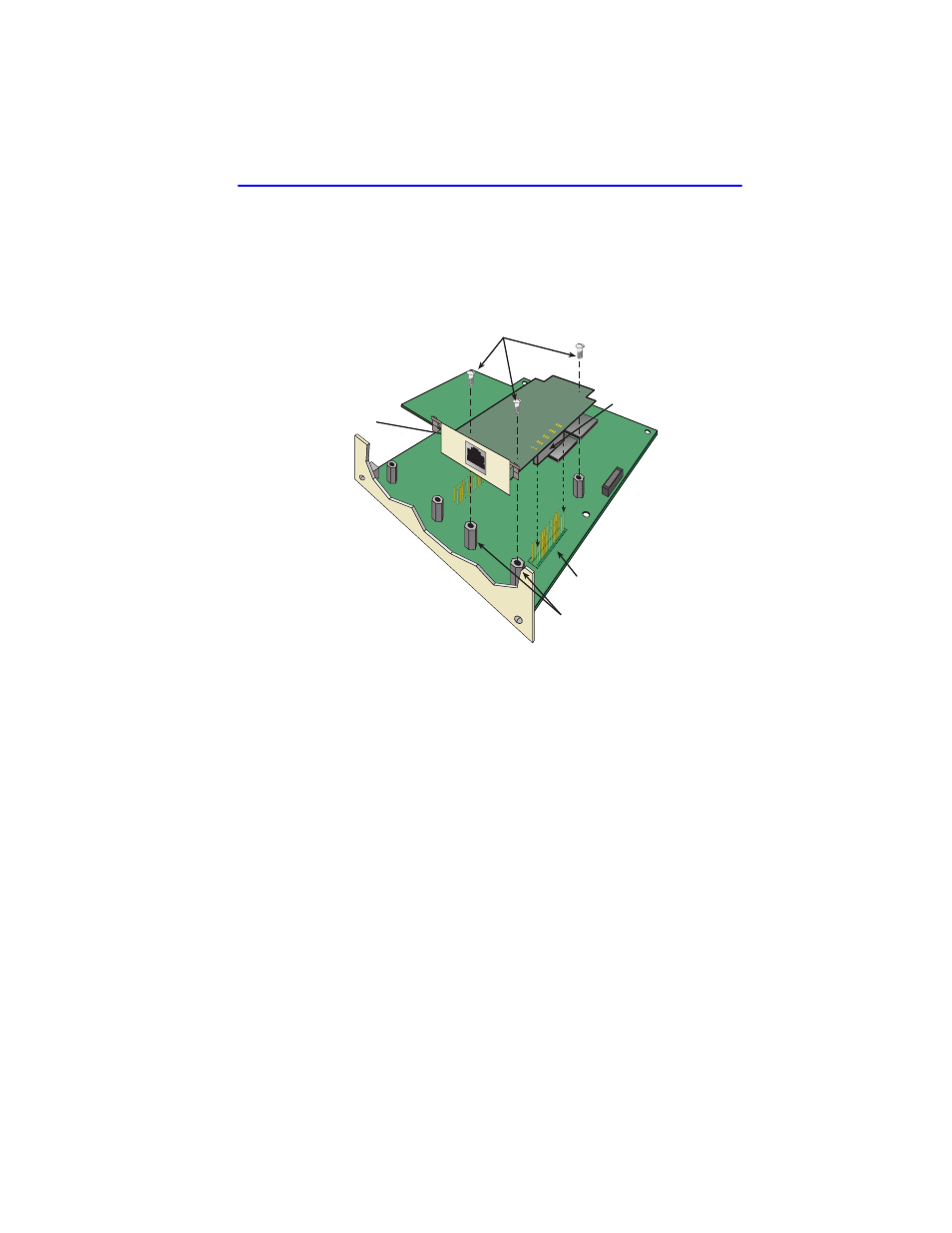

Figure 2-2
Installing the WPIM-RT1
2.1.4
Post-Installation
1.
Reinstall the cover if applicable.
2.
Refer to the host platform user’s guide to reinstall the network cables
and refer to
for cabling information for the WPIM-RT1.
Do not connect the WAN cable at this point.
3.
Refer to instructions contained in the host platform user’s guide to
reapply power.
4.
After reapplying power, check the LEDs for the following conditions:
•
Verify that the PWR LED is on, indicating that the device is
receiving power.
•
After the host platform runs a self test, the CPU LED blinks green
indicating normal operation.
•
If the CPU LED remains red, contact Cabletron Systems.
WPIM
WPIM Screws
Standoffs
WPIM
Connector Pins
WPIM
Connector
WPIM-RT1
