Connecting the WAN cable to the WPIM-RT1
WPIM-RT1 User’s Guide 2-5
The RJ45 cable from the WPIM-RT1 must be plugged into the WAN
connection wall jack (see
Figure 2-3 , below). The cable is not supplied
with the WPIM-RT1, but may be ordered separately from Cabletron
Systems, cable part number 9372094. Refer to
Appendix A for details.

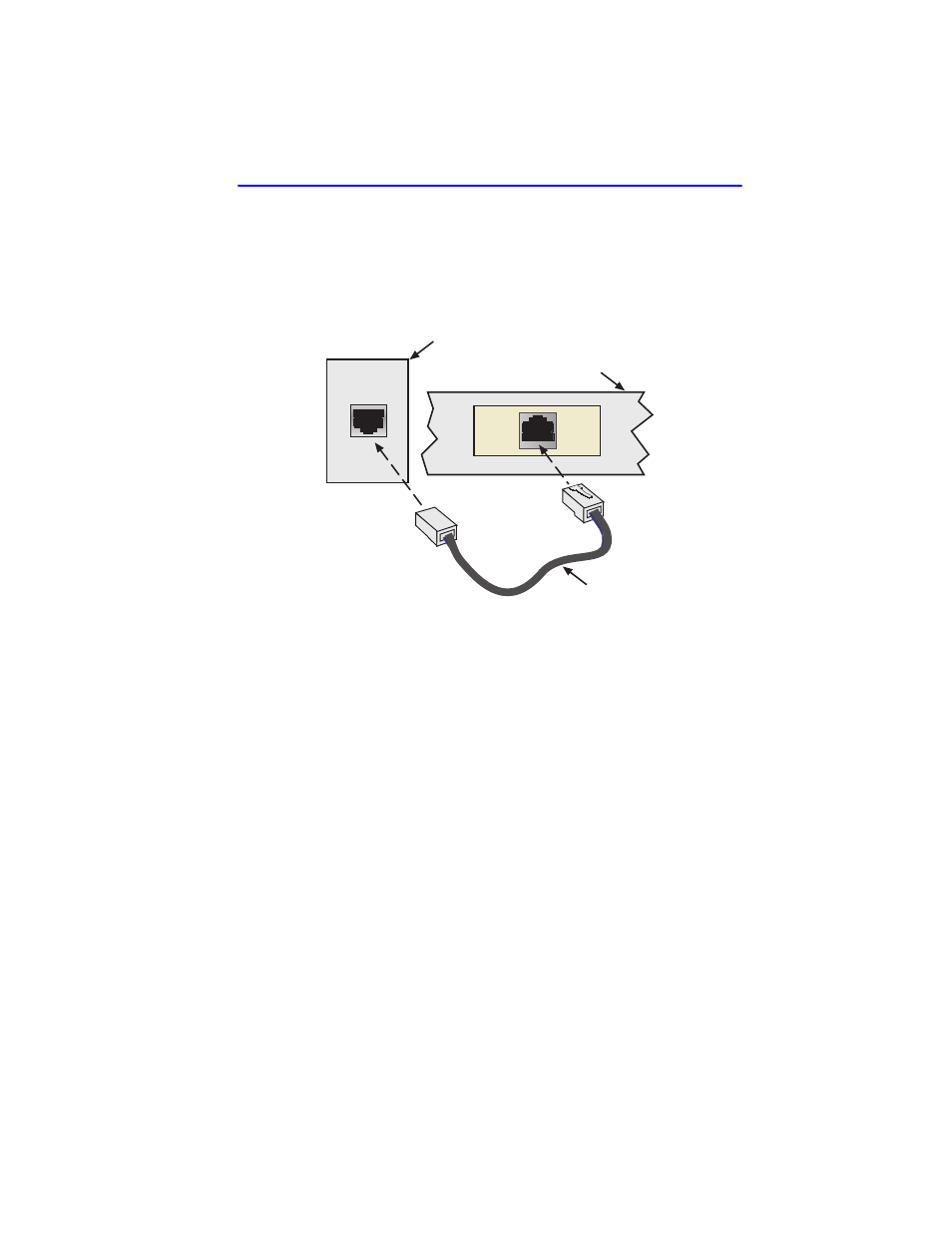

Figure 2-3 WAN Connection to the WPIM-RT1
connect
WAN Connection Wall Jack
Host Platform
WAN Cable
WPIM-RT1
