7000 Series Indicators EN-9
2 3 4 5 6
1
11 10 9 8 7
Item Description
Item Description
1 Display
window
7 LIBRARY Edit button
2 UNDER
LED
8
TARE Menu Exit button
3 ACCEPT
LED
9 FUNCTION Mode Back button
4 OVER
LED
10 PRINT Units No button
5 Capacity
label
window
11 ON/ZERO Off Yes button
6 Keypad

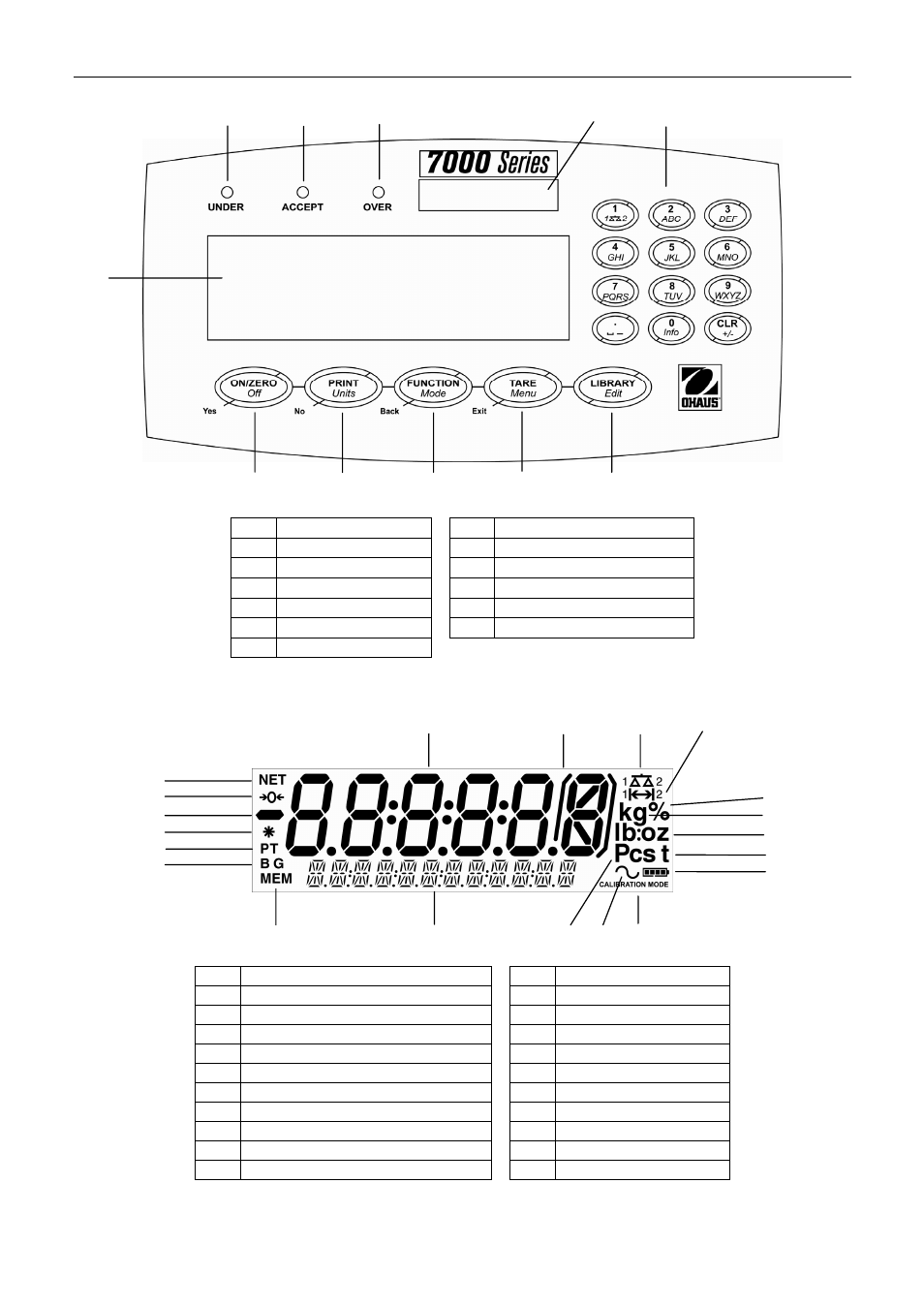

Figure 1-4. Control Panel
1 2 3 4
20
19
18
17
16
15
5
6
7
8
9
14 13 12 11 10
Item Description
Item Description
1
7-segment display
11
Dynamic symbol
2
Brackets (not used)
12
Pieces symbol
3
Scale symbol
13
14-segment display
4
Range symbol
14
Memory symbol
5
Kilogram, gram symbols
15
Brutto, Gross symbols
6
Percent symbol
16
Preset Tare, Tare symbols
7
Pound, Ounce, Pound:Ounce symbols 17
Stable weight symbol
8
Tonne symbol
18
Negative symbol
9
Battery charge symbol
19
Center of Zero symbol
10 Calibration
Mode
symbol
20 NET
symbol
Figure 1-5. Display
