HI 6600 Series Modular Sensor System User Guide
Page | 80

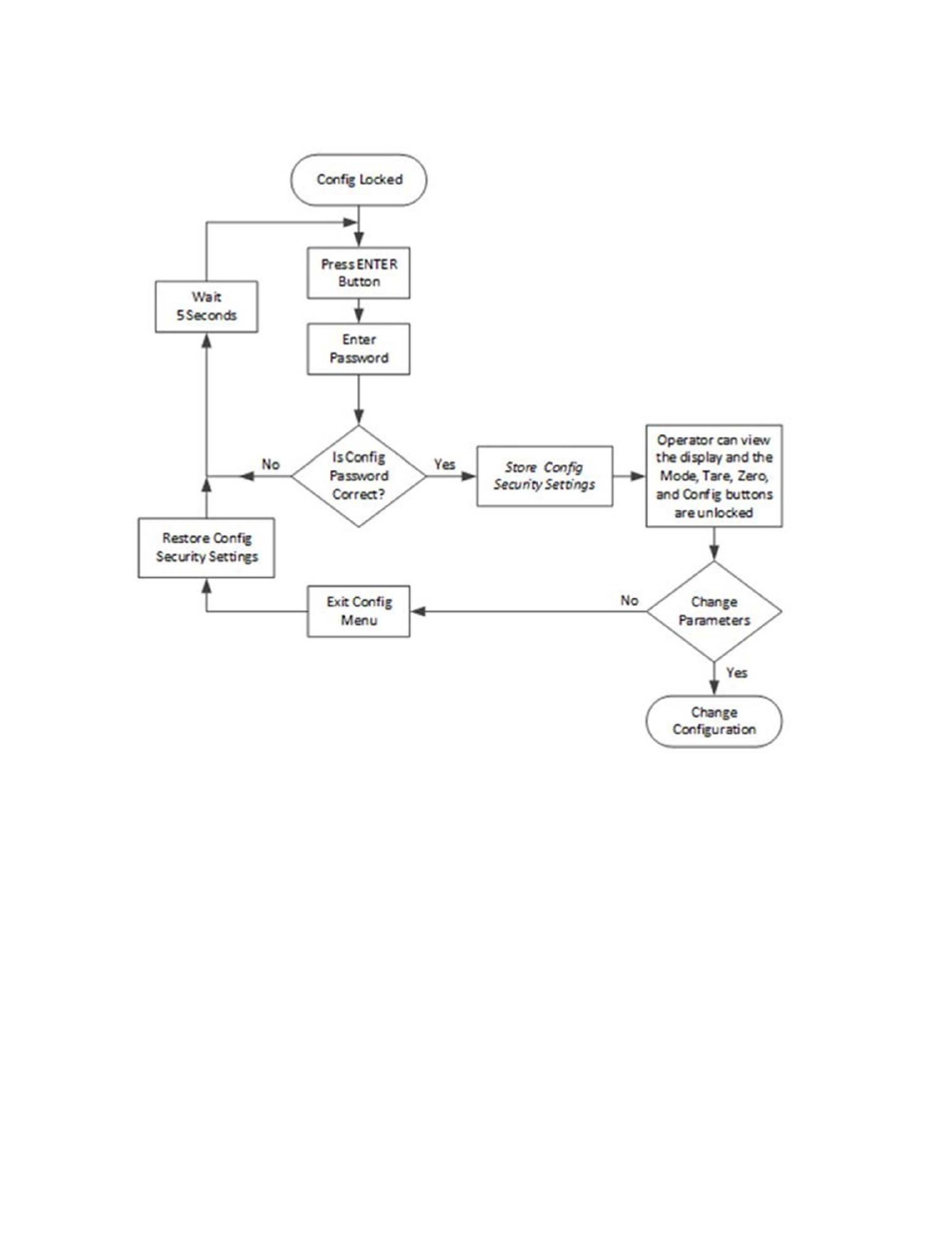

Figure 3: Configuration Lock Flowchart
The following list explains the operation and features available if the correct 4 alphanumeric character password is
entered by the operator.
Configuration Password:
 The current configuration lock setting is saved.
 The CONFIG button is also enabled allowing the operator to open the configuration menus.
 When the operator exits the configuration menu, if no changes to the configuration lock or password
parameters were made the configuration lock is set to its original lock settings; otherwise the latest
configuration security settings is used.
