Appendix E
Wiring Junction Boxes or Summing Cards
• • • • • •
Connecting to Hardy Junction Boxes or Summing Cards
To connect more than one load cell to a Hardy HI 6610 WPM module, you will need a summing card or junction box
to aggregate the signals to provide a singular weight reading. While a platform, bench or floor scale has a built in
summing card to perform this function, load cells need an external Summing Card or Junction Box.

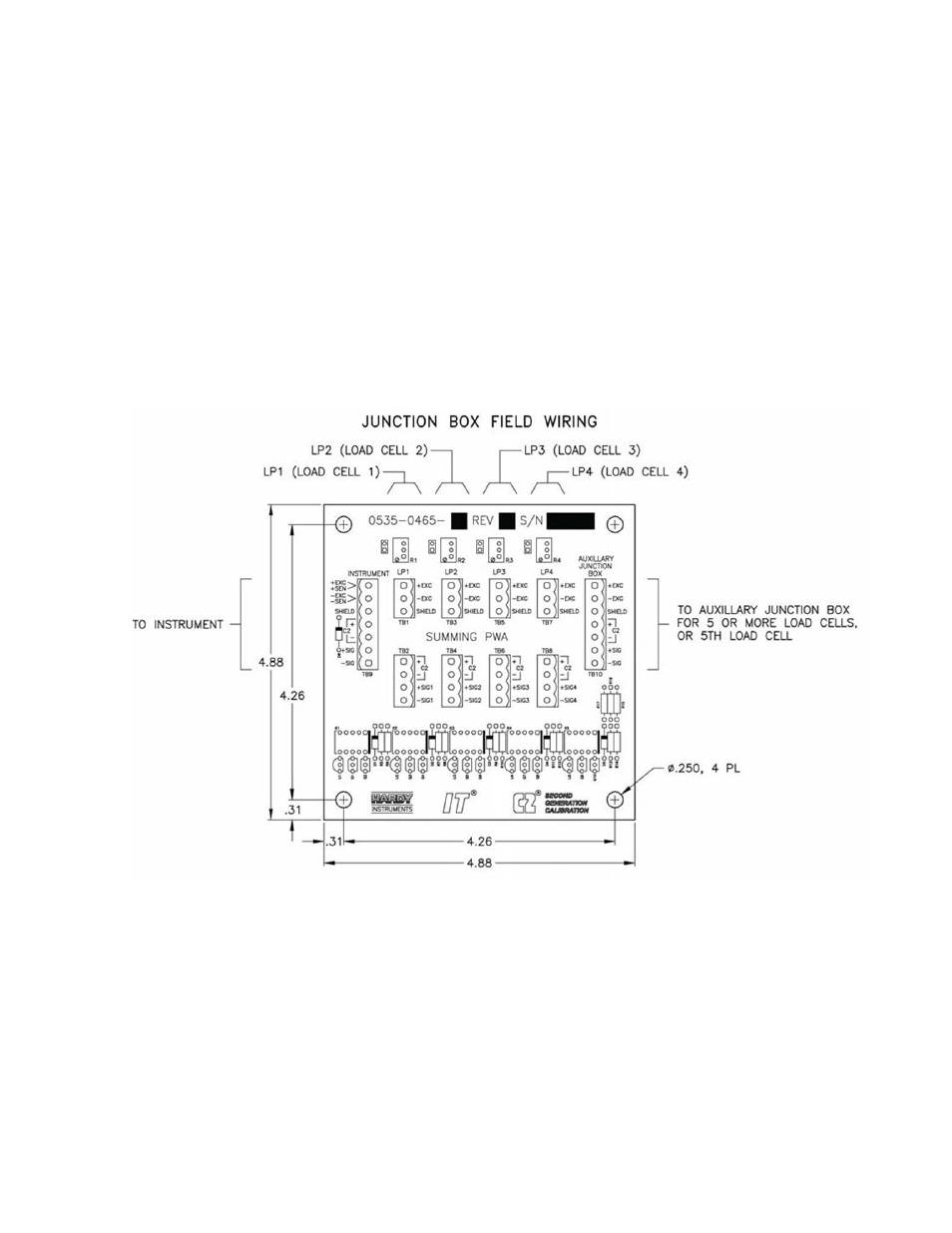

Junction Box Wiring Diagram
