HI 3010 Filler/Dispenser/IBC 18
User Guide
ingredient being filled and becomes part of the
Ingredient Parameter. It is highly recommended
that you turn the Auto Pre-Act function ON. (For
configuration information see the HI 3010 Ser-
vice Manual for instructions)

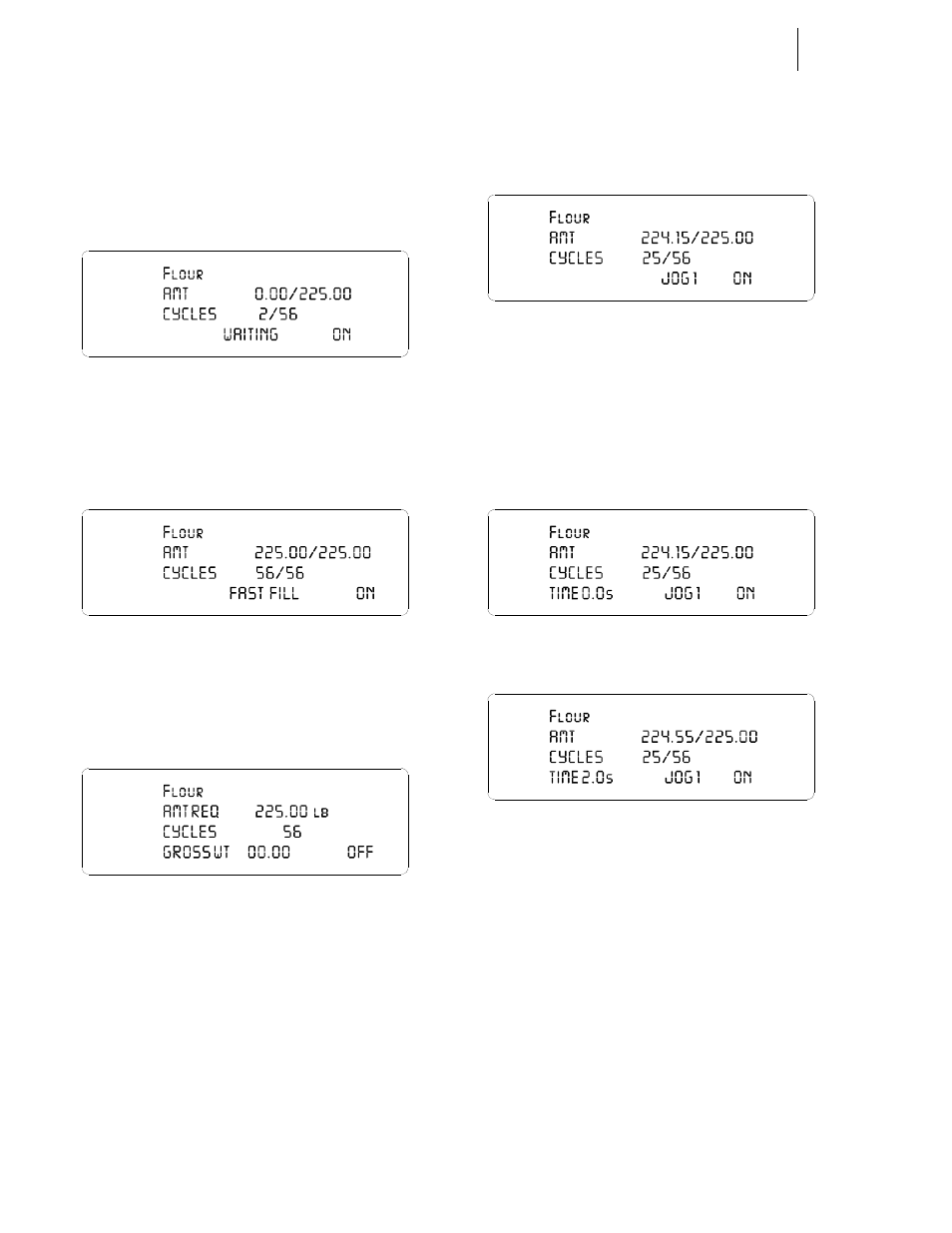

FIG. 3-26 BEGINNING FILL CYCLE #2
Step 11. The Filler Continues going through the fill cycles
until all the fill cycles are completed. (See Fig. 3-
27)
FIG. 3-27 LAST FILL CYCLE
Step 12. After completion of all the cycles, the Filler/Dis-
penser goes back to the Standby Menu. (See Fig. 3-
28)
FIG. 3-28 STANDBY MENU
Step 13. The Standby Menu enables you to select another
ingredient, Target Weight, Number of Cycles, and
User to begin a new filling process.
Jog Function
Step 1. If the gain-in-weight detected in the wait timer/state
is below the target window and the Jog Function is
turned on, the Jog function automatically comes on.
(See Fig. 29)
NOTE: To prevent excessive Jogging make sure you have
turned the Auto Pre-Act ON.
FIG. 3-29 JOG ON DISPLAY
• The Filler/Dispenser goes through one
JOG sequence that was previously set up
for this ingredient. (See Figs. 3-30 & 3-31)
• To set up the JOG Parameters see the HI
3010 Installation and Service Manual.
FIG. 3-30 JOG 1 DISPLAY
FIG. 3-31 JOG DISPLAY/JOG 1 2.0 SECONDS
1. The instrument goes to the Jog Off
state where it checks to see if the gain
in weight is within the target window.
A timer is displayed counting the time
the instrument is in the Jog Off state.
(See Fig. 3-32)
2. If the gain in weight is still NOT
within the target window, the instru-
ment automatically continues through
the preset JOG sequences until the tar-
get window is reached and then con-
tinues on to another procedure.
3. If gain in weight is within the target
window, the fill process continues to
another function.
