TRACK EFFECTS
30
BASIC FILTER CONTROLS
The track effect system offers a resonant 24dB low/high/band-pass filter. The parameters
are untraditional, giving the user control of both the low and high filter cut-offs, as well as a
variable gap band-pass filter.
BASE (filter base) controls the base filter cut-off frequency. When WDTH is set to its max-
imal value, the BASE parameter functions as the cut off parameter of a high-pass filter.
WDTH (filter width controls the filter gap width, that is the distance between the high pass
and low pass cut-off frequencies. When the BASE is set to its minimum value, the WDTH
parameter functions as the cut off parameter of a low-pass filter.
HPQ (high pass filter Q) controls how much the volume is boosted around the high-pass
cut off frequency.
LPQ (low pass filter Q) controls how much the volume is boosted around the low-pass cut
off frequency.

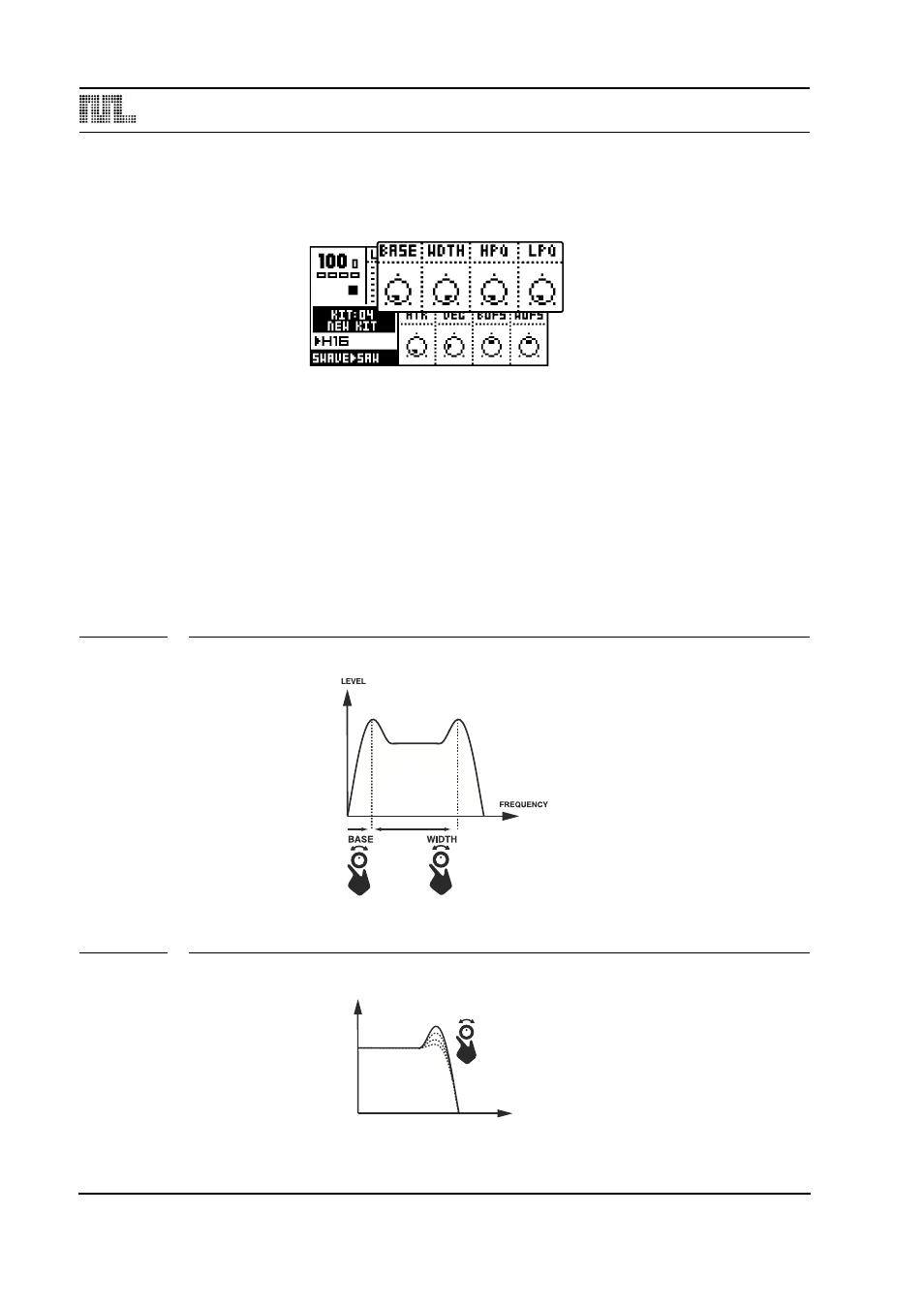

FIGURE 3. How the BASE and WDTH parameters works.
FIGURE 4. How LPQ affecs the audio signal.
FREQUENCY
LPQ
LEVEL
