USER INTERFACE AND CONNECTORS

FRONT / MAIN CONTROL PANEL

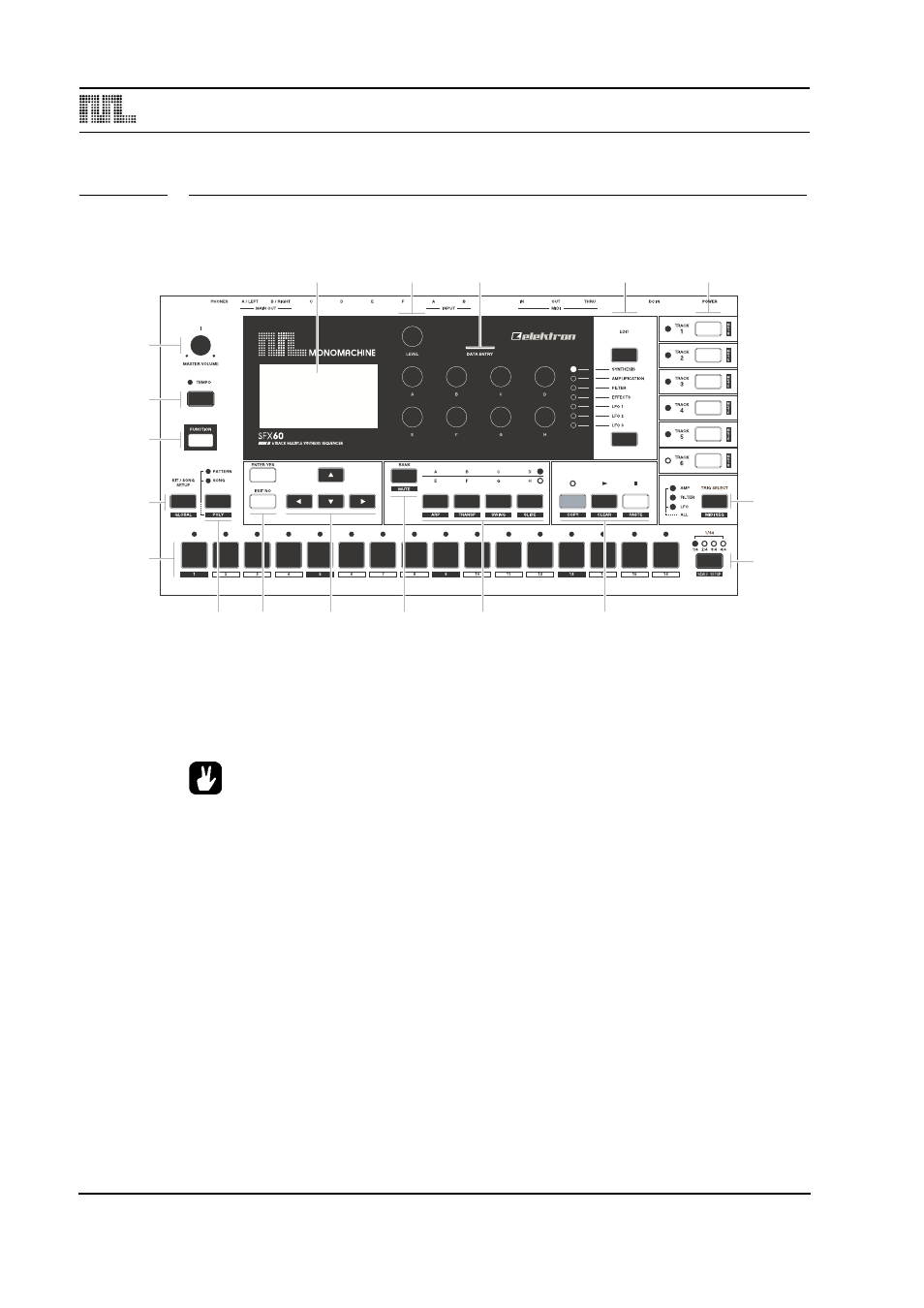

The Monomachine main control panel:

Master volume control. Sets the volume for the main output and the headphone jack.

The LCD graphical interface display.

LEVEL knob. Sets the overall volume level of the track in focus.

DATA ENTRY knobs. Used for tweaking parameters for the machines and effects.

•

The DATA ENTRY and LEVEL knobs allow accelerated editing by pressing the
knob while turning it.

[DATA PAGE] selection keys. These keys are used for browsing through the seven
DATA pages. The current selection is indicated by the LED’s to the left of
these keys.

Press both [DATA PAGE] keys simultaneously to open the MULTI ENV window.

[TRACK] keys 1-6. These keys are used for selecting which track is in focus of editing.
The secondary function is to mute or activate the track. The LED’s are
located to the left of the [TRACK] keys. These indicate which tracks are active or muted,
and also which track is in the editing focus. The LED colours indicate the following:
Green = Active, Non-lit = Muted, Red = Active in focus, Yellow = Muted in focus

[TEMPO] key. Press to bring up the tempo window for adjustment. The current tempo is
always indicated by the speed of the flashing of the LED. While holding
[FUNCTION] you can use [TEMPO] for tapping the tempo.

[FUNCTION] key. Press and hold it for accessing the secondary function of another key.

[KIT/SONG] key. Opens the kit menu, or the song menu if in song mode. The secondary
function is calling the [GLOBAL] menu.

)

(
