ANALOG KEYS WITH AN ELECTRIC GUITAR

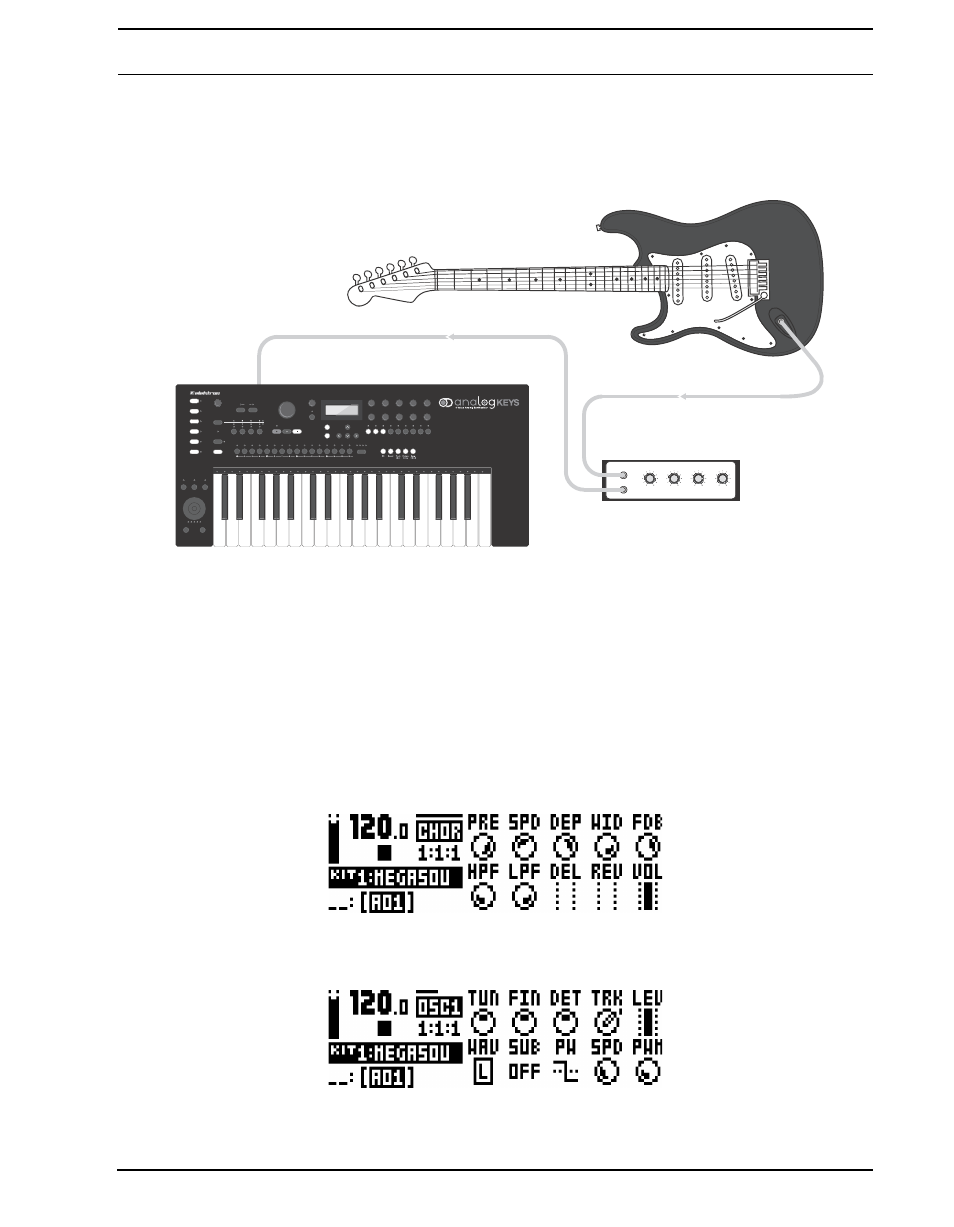

In this setup example Analog Keys is used for processing the sound output from an electric guitar. The first,
most basic method uses the FX track to turn Analog Keys into an effects box sporting the Wideshift Chorus, Sat-
urator Delay and Supervoid Reverb effects. The second, more elaborate method routes the sound through
Track 1 and allows all the sound-shaping possibilities offered by the FILTERS, AMP, ENV and LFO.
1. Connect the electric guitar to the audio input of an amplifier using a standard mono phone cable.
2. Connect the audio out from the amplifier to the left audio input of Analog Keys.
3. First method: Select the FX track on Analog Keys with [TRACK] key 5.To make use of the Wideshift Cho-
rus, press [PARAMETER] key 3, CHORUS. Change the volume and other aspects of the effect using the
DATA ENTRY knobs. Use Saturator Delay and Supervoid Reverb effects in a similar manner by pressing
[PARAMETER] key 4, DELAY and key 5, REVERB respectively.
4. Second method: Select Track 1 on Analog Keys by pressing [TRACK] key 1.
5. On the OSC1 menu page, set the WAV parameter to IN L using DATA ENTRY knob F. Set SUB, the sub
oscillator, to off. Turn the LEV all the way up.
