SETUP EXAMPLES
71

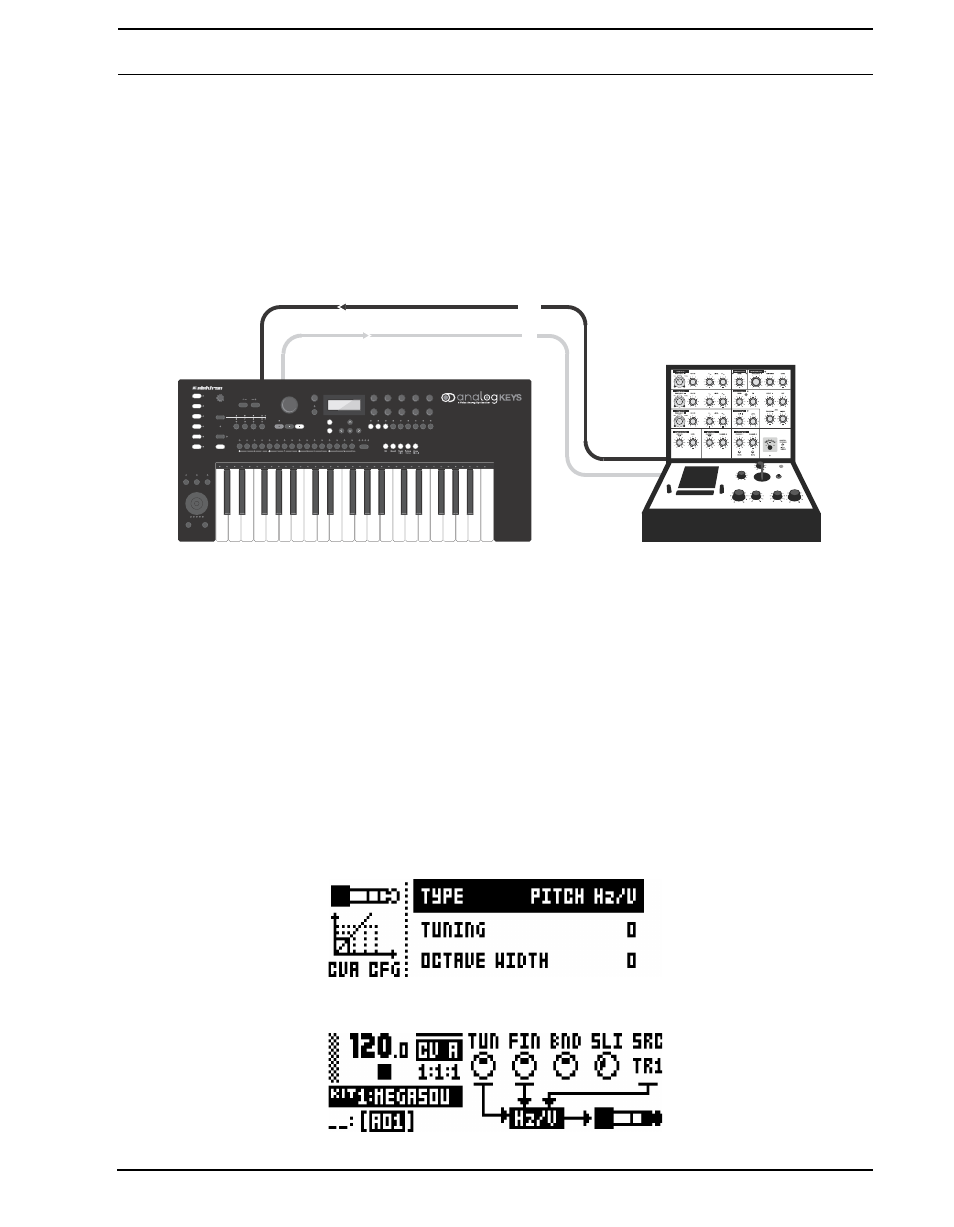

USING AN EXTERNAL OSCILLATOR WITH ANALOG KEYS
The CV/Gate outputs and the external inputs allow an external oscillator to be used with the internal Analog
Keys oscillators. Use this trick when you want a different (perhaps old, quirky and unpredictable yet charming)
oscillator to provide the fundamental tone but still want the control and modulation power of Analog Keys.
In this setup example, the CV track will trig the oscillator of an external analog synth. The output of this oscillator
will be routed to left input of Analog Keys. Synth track 1 of Analog Keys will control the pitch of both the internal
oscillators and the external oscillator. The filters and envelopes of track 1 will shape both the internal and the
external oscillators.
1. Connect a standard mono phone (or insert/Y) cable to Analog Keys CV AB output.
2. Connect the output of the external oscillator to the left external input
3. Connect the mono phone (or tip of the insert/Y) cable from CV AB to the pitch CV control input of the exter-
nal synth.
4. Select the CV track and press [FUNCTION] + [CV A]. In this menu, depending on the specification of the
external analog synth, set TYPE to either PITCH V/OCT or PITCH Hz/V. Exit the menu.
5. Set the SRC parameter of the CV A page to TR1. This will make the CV track send out pitch voltages
according to the note trigs on synth track 1.
AUDIO OUT
PITCH
Trk 1 Master
Volume Level
Tempo Tap Sound Selection
Bank Group Direct Change
Song Edit
Mode
Trig Mute Accent Note
Slide Parameter Slide
Chain New
Perf Setup
Page Scale
A B C D E
F G H I J
Arp Setup Note Setup Osc 1 Ext In CV A Osc 2 CV B Filters Chorus CV C Amp Delay CV D Env Reverb Env LFO LFO LFO
Copy Clear Paste
Transpose Lock 1:4 2:4 3:4 4:4
Mute
Yes/Save
No/Reload
Multi Map Edit Poly Edit
Octave
Down Up
Transpose As Seq
I Function
- +
Headphones Left Right Trk 1 Trk 2 Trk 3 Trk 4 In Left In Right CV AB MIDI In MIDI Out Sync A MIDI Thru Sync B USB AC In Power CV CD
Trk 2 Mute
Trk 3 Mute
Trk 4 Mute
FX Mute
CV Mute
