36 ZT-2800 ® /ZT-3100™/ZT-3400™
aXLe sHafT (ZT-2800/ZT-3100)
Refer to Figure 33
disassembly
1. Remove all items beginning on page 22.
2. Remove the retaining ring (90).
3. Remove and discard the lip seal (96).
4. Remove the axle shaft (94) in the direction
of arrow.
5. Remove the bearing (95).
NOTE: Remove the bearing from the axle shaft
only if worn or damaged.
inspection
1. Inspect the splines on the axle shaft for wear
or damage. Replace if necessary.
2. Inspect the bearing (95) for wear or damage.
Replace if necessary.
assembly
1. Assemble items in reverse order of disas-
sembly.
NOTE: To protect the lip seal from possible
damage when installing into the bore
and over the axle shaft, apply a protec-
tive covering over the splines, sharp
corners and/or keyway of the axle shaft
(e.g., cellophane, tape, etc.).

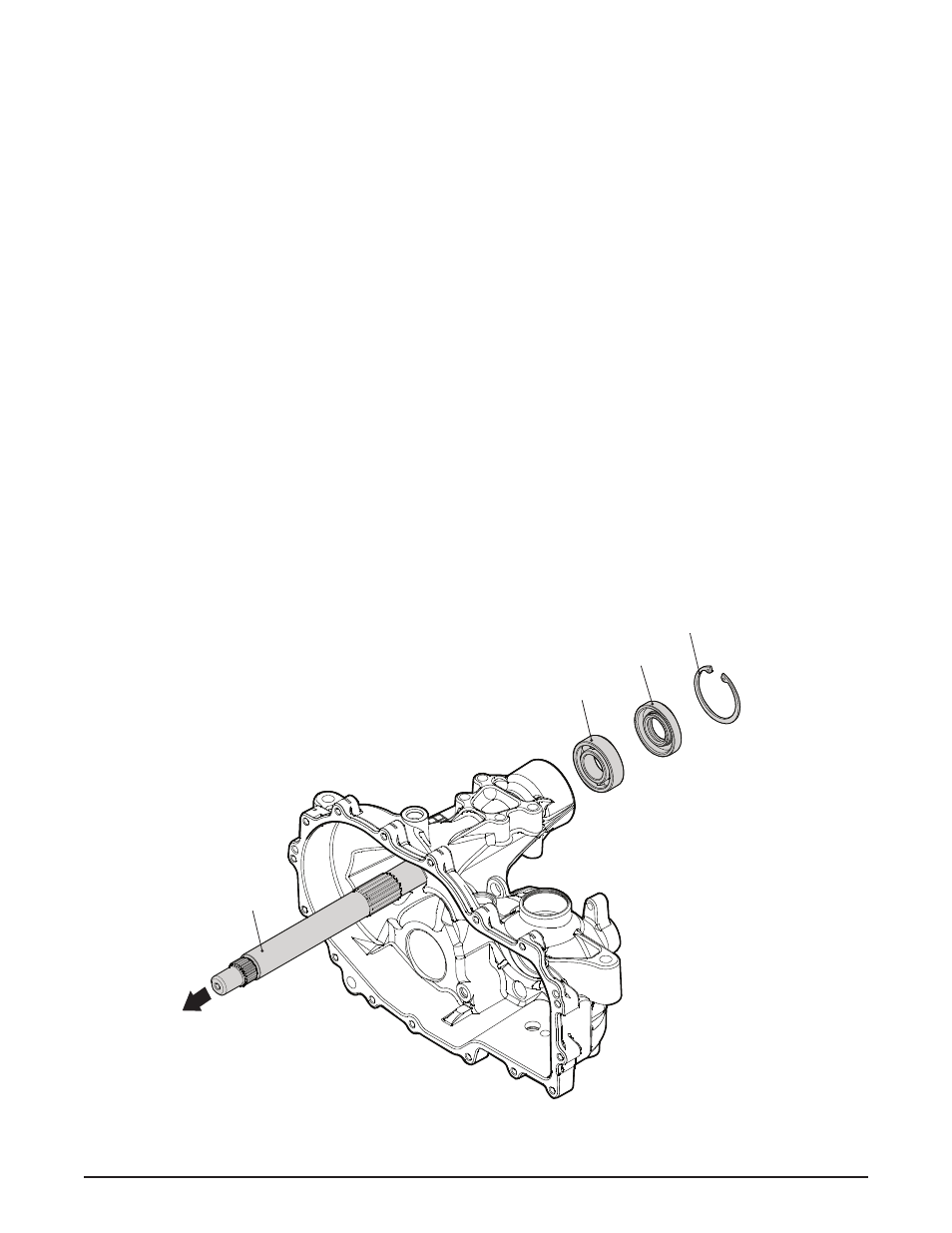

figure 33, axle assembly
90
96
95
94
