6. Inspect the pick up tube. See Figure 2.9.
NOTE: If the pick up tube is loose or missing, it must be
replaced.
7. Install the grommet in the fuel tank.
8. Insert the pick up tube into the fuel tank, through the
grommet.
9. Re-connect the fuel line.
10. Install the left fender.
11. Test run the mower in a safe area before returning it
to service.
Fuel Line
The fuel line used by Cub Cadet is GREENbar
TM
. This
is a multi-layer fuel line that meets the current EPA guide-
lines.
NOTE: This fuel line has a thin inner liner. If a tear forms in
this inner liner, fuel can get between the liner and
the hose. This will cause the liner to collapse, cut-
ting off the fuel flow.
NOTE: Replace the fuel line only with GREENbar
TM
700
series fuel line.

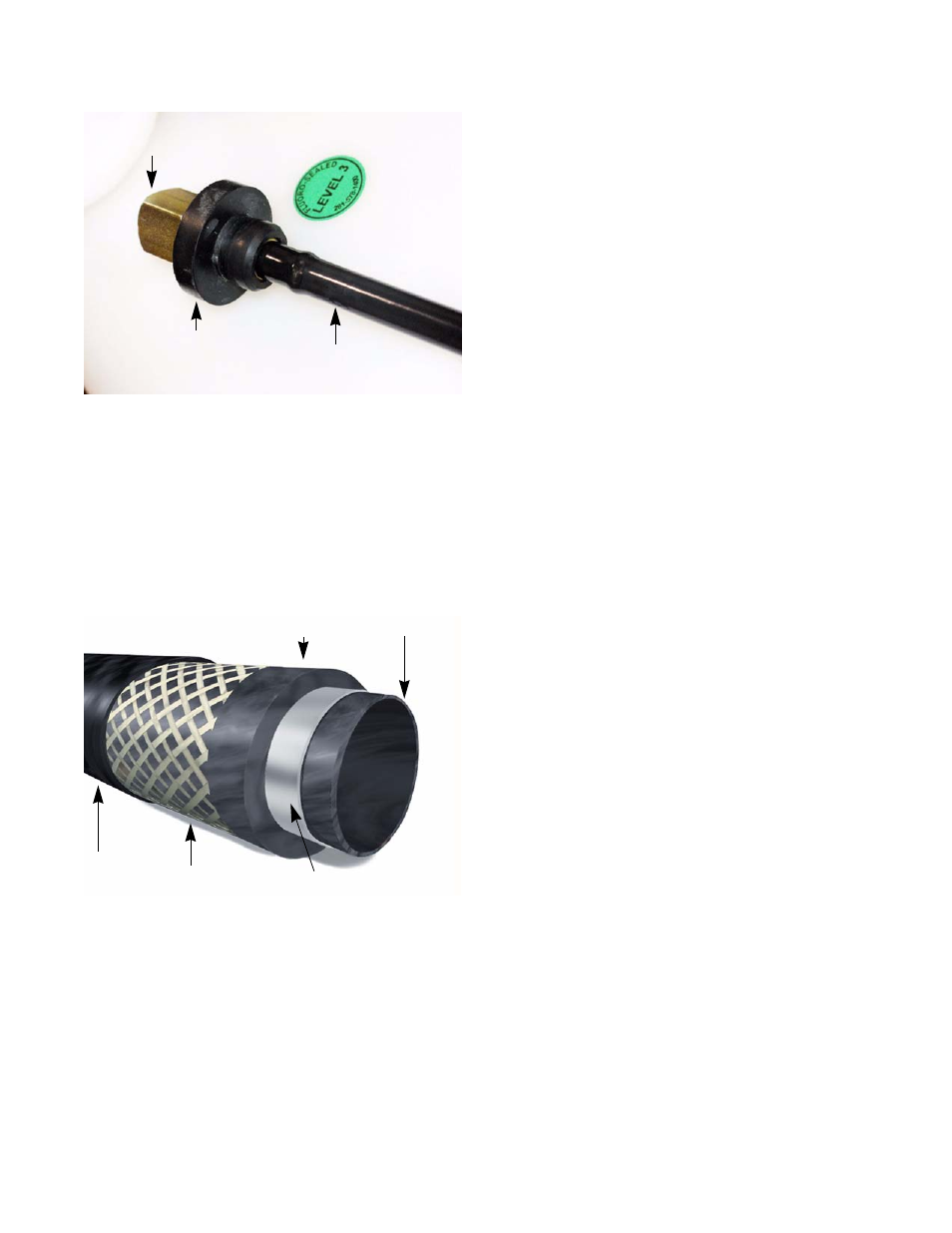

Figure 2.9
Fitting
Grommet
pick up tube
Figure 2.10
NBR inner liner
THV barrier layer
NBR intermediate layer
Reinforcement
CSM Cover
Picture courtesy of Avon Automotive
