Fuel pick up tube
The fuel tank on the RZT-S mower has a fuel pick up tube. This is a rigid tube that runs from the bottom of the
tank to the top of the tank were the fuel line attaches to it.
NOTE: A loose or missing pick up tube will allow air into the fuel system and will reduce or prevent fuel follow
from the fuel tank to the engine.
To remove/replace the pick up tube:
1. Remove the left fender by following the procedures
described in Chapter 3: Body.
2. Clamp off the fuel line between the fuel tank and the
fuel filter. See Figure 2.7.
3. Disconnect the fuel line from the pick up tube.
4. Gently pry the pick up tube and grommet out of the
fuel tank. See Figure 2.8.
5. Inspect the grommet.
NOTE: If the grommet is cracked or damaged,
replace as needed.

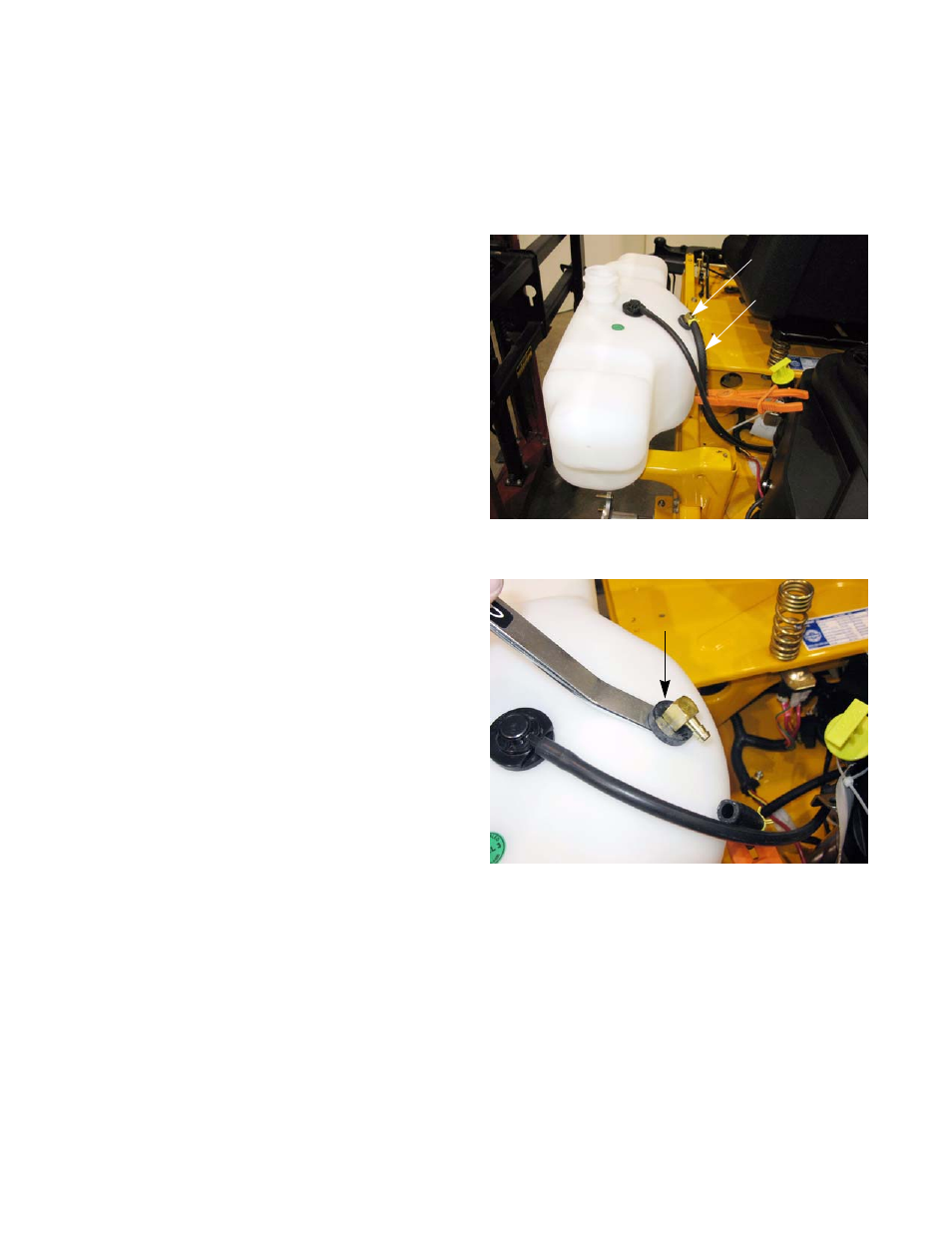

Figure 2.7
Fuel line
Pick up tube
Figure 2.8
Grommet
