7
IV.Installation
1.Conect description
1.1 4 kinds of bracket installation for outdoor speed dome：wall mount, cornet
mount, ceilling mount, pole mount.

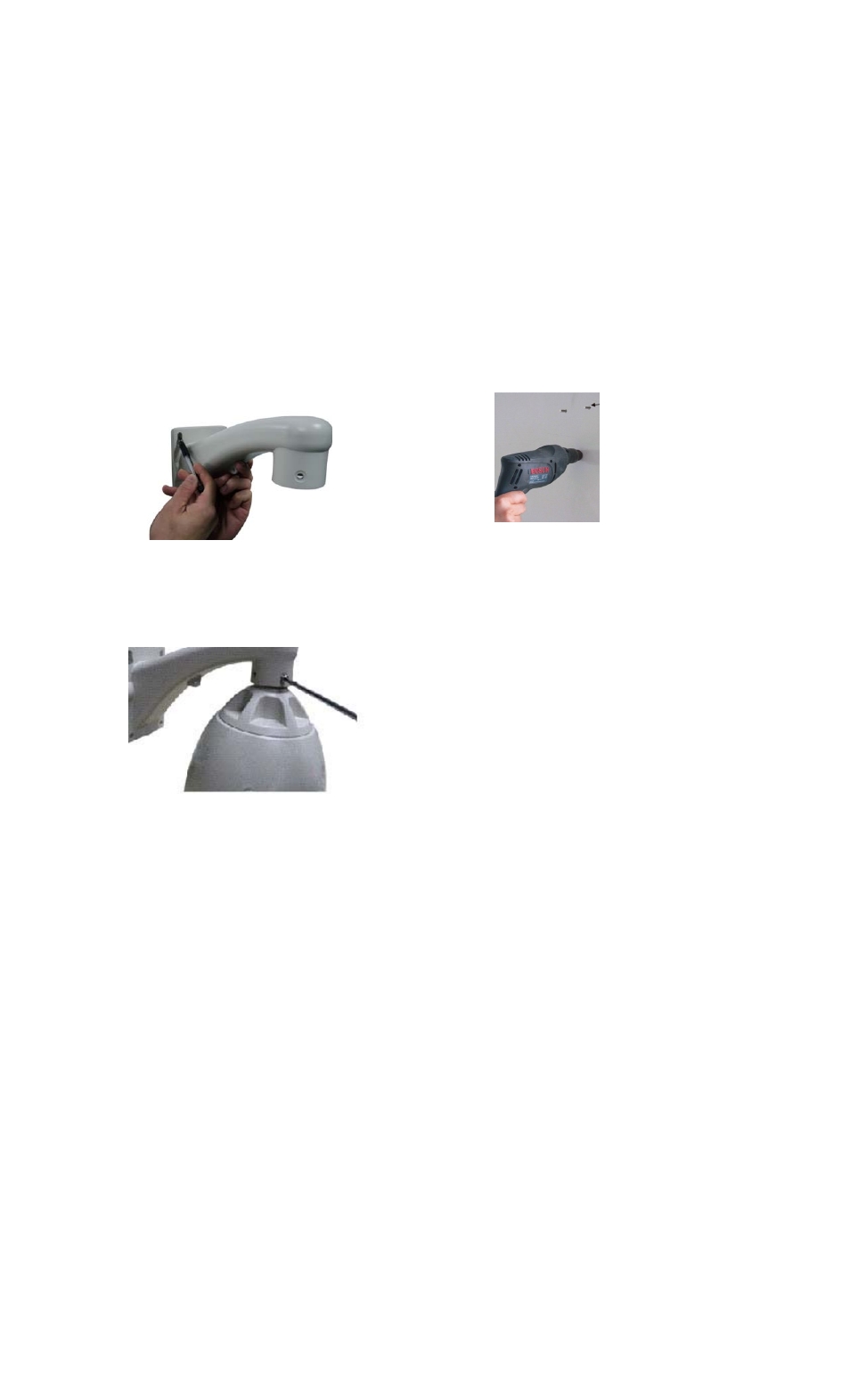

1.1.1 Wall mount
Check the wall and make sure it’s firm. The bearing weight is more than 8 times of the
speed dome weight.
a. Label installation position b. Install the bracket
c. Assemble the speed dome d. Fix the speed dome
e. Connection of cables
