COP-USA CD55-H-SDI - Manual (Page 14)

13
TOP/BOTTOM.
1.3.2.3 RETURN: to return to the DISPLAY SETUP menu.

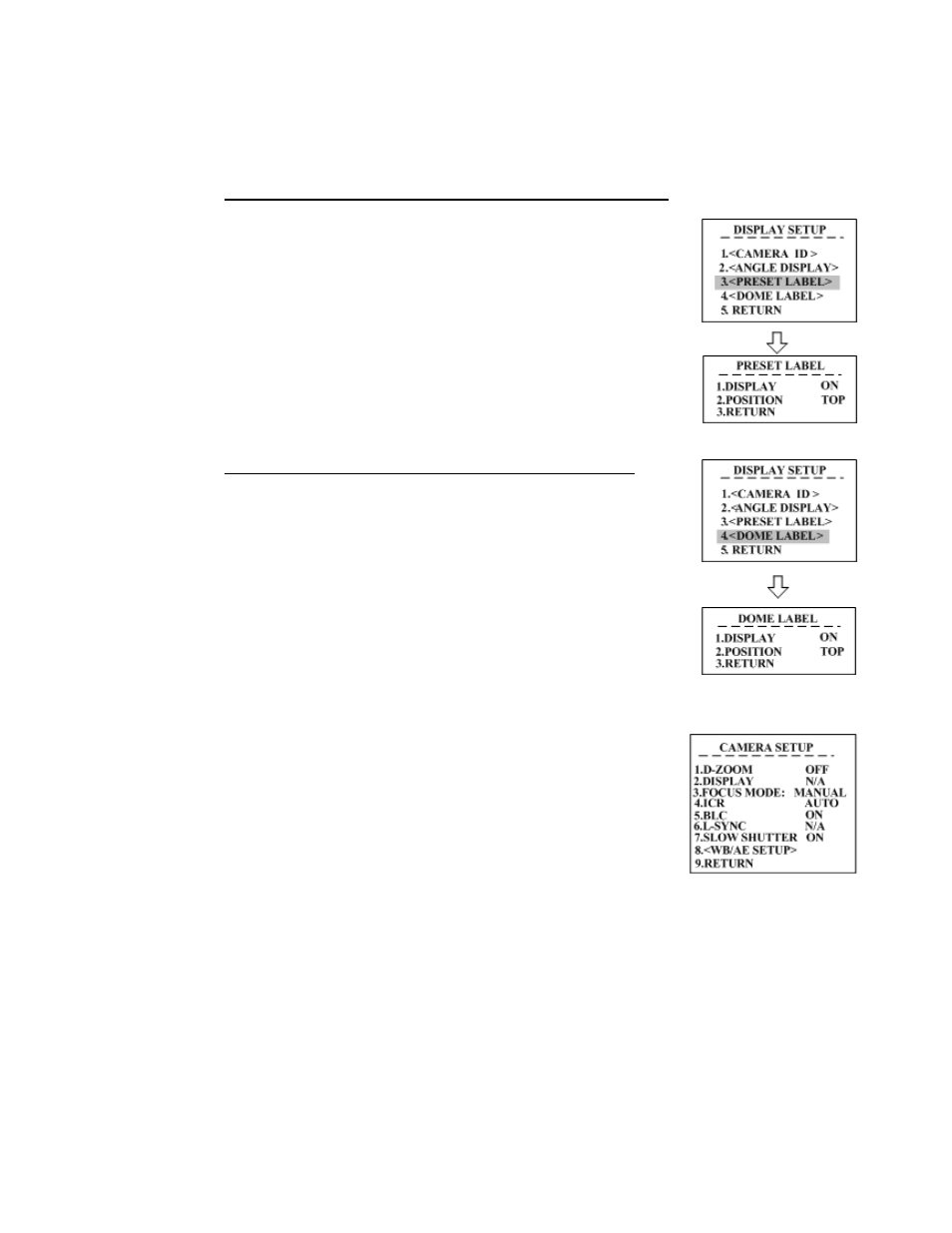

1.3.3 PRESET LABEL: to enter the PRESET LABEL submenu.
1.3.3.1 DISPLAY: to ON/OFF the display of the preset label. If it
is ON, the preset label will be displayed on the left of the
monitor when the preset position is setting.
1.3.3.2 POSITION: to set the display position of the preset label:
TOP-at the top of the monitor, BOTTON- at the bottom of
the monitor.
1.3.3.3 RETURN: to return to the DISPLAY SETUP menu.
1.3.4 DOME LABEL: to enter the DOME LABEL submenu.
1.3.4.1 DISPLAY: to ON/OFF the display of the dome label.
1.3.4.2 POSITION: to set the display position of the dome label:
TOP-at the top of the monitor, BOTTON- at the bottom of
the monitor.
1.3.4.3 RETURN: to return to the DISPLAY SETUP menu.
1.3.5 RETURN: to return to MAIN MENU.
1.4 CAMERA SEUP: If setting camera parameter is N/A, it
means the camera can not support this function.
1.4.1 D-ZOOM: to ON/OFF the digital zoom.
1.4.2 DISPLAY: to ON/OFF the display of the camera
information.
1.4.3 FOCUS MODE: NON: iris & focus invariably / A-AUTO:
Auto iris / F-AUTO: Auto focus / AF-AUTO: Auto iris and focus.
1.4.4 ICR: to set the AUTO/DAY/NIGHT situation.
1.4.5 BLC: to ON/OFF the back light compensation.
1.4.6 L-SYNC: to ON/OFF the external synchronization. (Only for some
special cameras.)
1.4.7 SLOW SHUTTER: frame accumulation with two options
