20

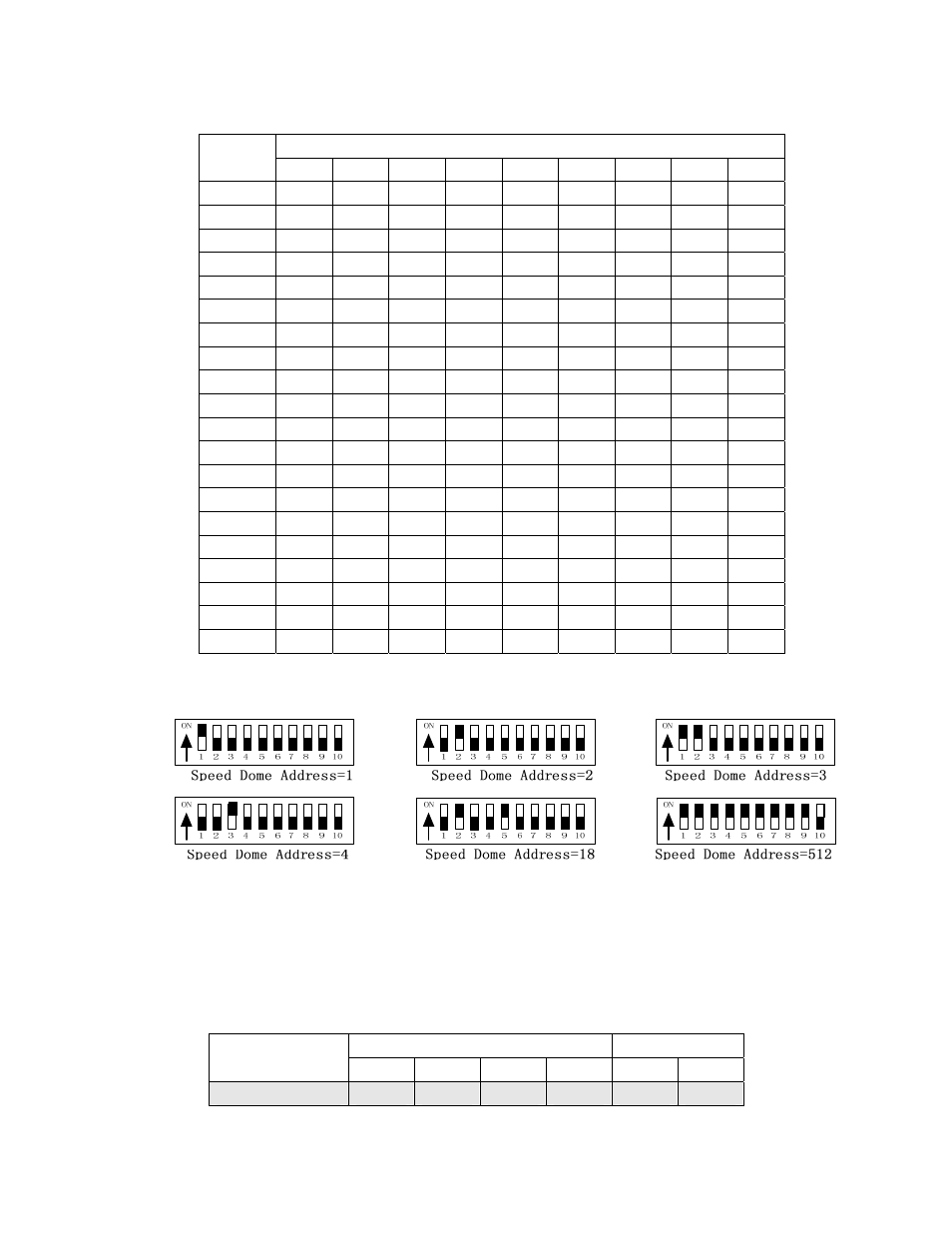

switches of some addresses.
Dome
Address
ID-CODE Status
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9
1 ON OFF OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF
16
OFF OFF OFF OFF ON OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF
… … … … … … … … … …
512 ON ON ON ON ON ON ON ON ON
Table 1
Eg：
3.3 Setup of the Protocol and the Default Baud Rate
As shown of figure 5.1, J8 set the protocol and baut rate of speed dome. DIP-4to DIP-1
to choose the protocol,DIP-1 to DIP-4 are all OFF means PELCL-D protocol
Protocol
Protocol selcection Baute rate
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
PELCO-D OFF OFF OFF OFF OFF OFF
