2.0 Overview
– 25 –
12.0 Specifications
Display Unit Calibration According to factory procedure
Units of Measure daN
Accuracy ± 1% FS* ± 1 digit (typically ± 0.5% FS*)
Overrange 10% FS*, without accuracy guarantee
Overload Protection 150% FS*
Measuring Principle Strain gauge bridge
Signal Processing Digital 16 bit A/D converter
Damping Adjustable electronically (averaging)
Measuring Frequency Approx. 5 kHz internally
Display Update Rate 2x per second
Display 4-digit LCD, height of digit 11 mm
Memory Average, last value, MAX, MIN, MAX PEAK, MIN PEAK
Memory Modes 3 - for up to 4000 readings
Temperature Coefficient Gain: less than ± 0.01% FS*/°C
Analog Output Signal 0 - 2 V DC (linearized) RLoad > 1 k Ω ± approx.1%
Converter Frequency 100 Hz
Digital Output Signal RS232 (9600, 8, N, 1) (2 readings per sec.)
(with Tension Inspect > 50 readings/sec possible)
Temperature Range 10 - 45 ° C
Air Humidity 85% RH, max.
Auto Power Off Automatically after approx. 3 min. of non-use
Power Supply 9 V E block
9 V lithium for about 80 hours of continuous use
Housing Material Aluminium profile with plastic outer casing (PVC)
Housing Dimensions 230 mm x 45 mm x 48 mm (L x W x H)
Weight, net (gross) Approx. 370 g / 1050 g *FS = Full Scale
Sensor:
Measuring Rollers 2x 22 mm ball bearing rollers
Width of Outer Rollers 100 mm (ball bearing rollers)
Total Width of Rollers 50 mm
Reference Frame Height
Adjustment
24 mm
Material Anodized aluminium
Dimension 165 x110 x 140 mm (L x W x H)
Weight, net (gross) 1050 g (1500 g)
2.2 Complete kit
•฀฀ XLE฀Tension฀Meter.
•฀ 9฀volt฀battery.
•฀ Digital฀connecting฀cable.฀Part฀number฀ETC-CC.
•฀ TENSION฀INSPECT฀software฀฀for฀viewing฀and฀storing฀measured฀data฀on฀a฀PC,฀฀฀
requires Win 96 or higher. Part number ETC-P2.
•฀ Operating฀manual.
•฀ Carrying฀case.฀
2.3 Optional accesories
ETX-CA Connecting cable for analog signal.
ET-AKKU Rechargeable 9 V battery (NiCd).
ET-AC-115 Battery charger for 115 V AC.
ET-AC-230 Battery charger for 230 V AC.

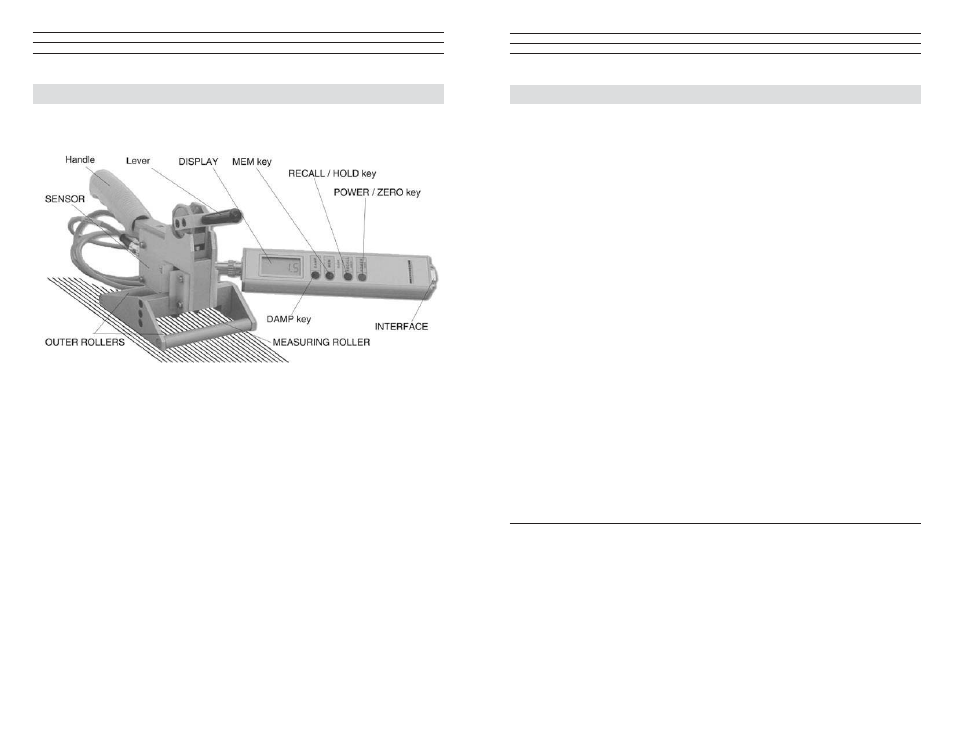

2.1 Controls
