5 Putting into operation
24 Pump Combinations Operation Manual, Version E
For the installation of the mixer and the suction tubing, see chapter 5.3.3.
Connection tubing between the separator heads of the pumps:
1
2
The fitting and ferrule are attached to both tubing
ends.
Attach one end of the connection tubing to the input
of the lower separator head a and the other into
the output of the upper separator head b.
1 3
2
Remove the right rear separator head cover a from
the lower pump. Remove the two small nubs on
the inside by pushing them towards the inside and
outside. Now press the connection tubing b into
the slit of the open separator head c and replace
the separator head cover a.

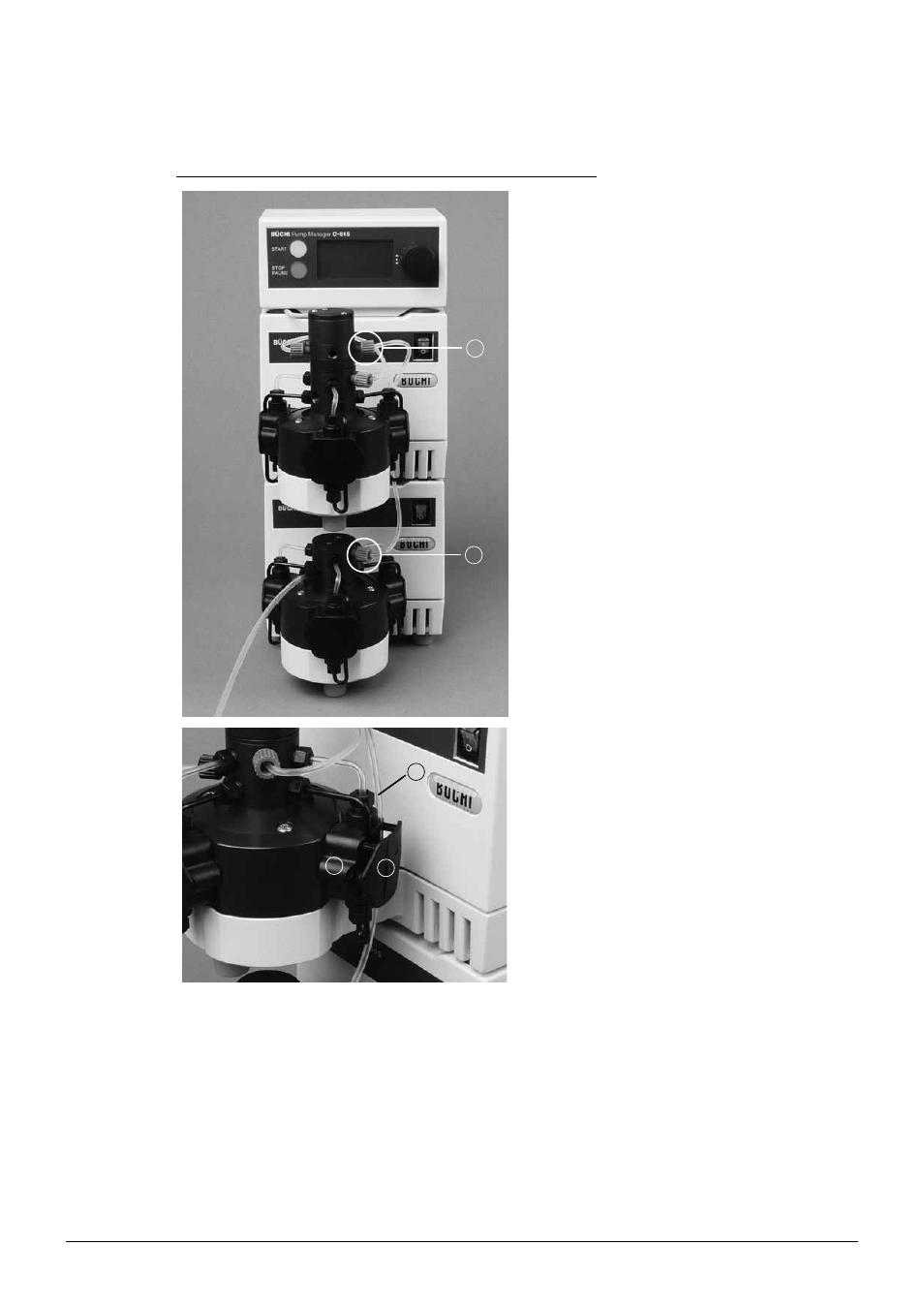

Fig. 5.15: Installing the connection tubing between the separator heads of the pumps
For a description on the installation of the connection tubing between the lower separator head and
the mixer, see chapter 5.3.3.
