5 Putting into operation
22 Pump Combinations Operation Manual, Version E
Installation of the mixer
1
2
3
Click the mixer b to the pump module a. Make
sure that all fittings are hand-tight.
Place the mixer cable c on the left side between
pump module and pump manager, and attach it to
the PRESSURE input of the pump manager (position
f in Fig. 5.10).

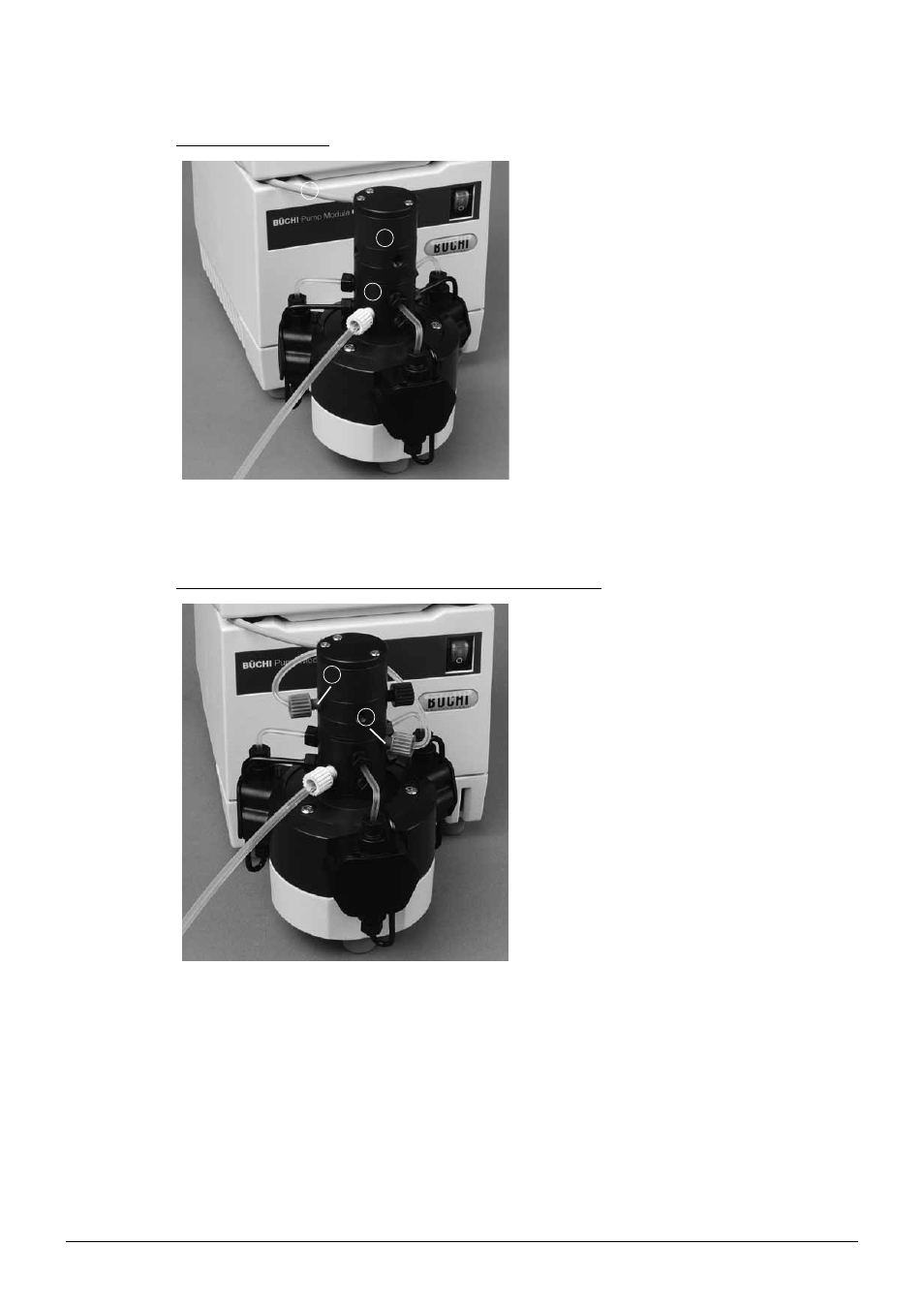

Fig. 5.11: Pump module with attached mixer
For information on the installation of the standard accessories (suction tubing), please see chapter
5.3.1.
Suction tubing between the lower separator head and the mixer
1
2
Click the fitting and ferrule to the two ends of the
tubing, so that one of the ends is attached to the
output of the separator head a, the other to the
input of the mixer b.
Fig. 5.12: Installing the suction tubing
