Aviom A-16R/A-16CS - Manual (Page 45)

36 A-16R P
eRsonAl
M
ixeR And
A-16Cs C
ontRol
s
uRfACe
u
seR
G
uide

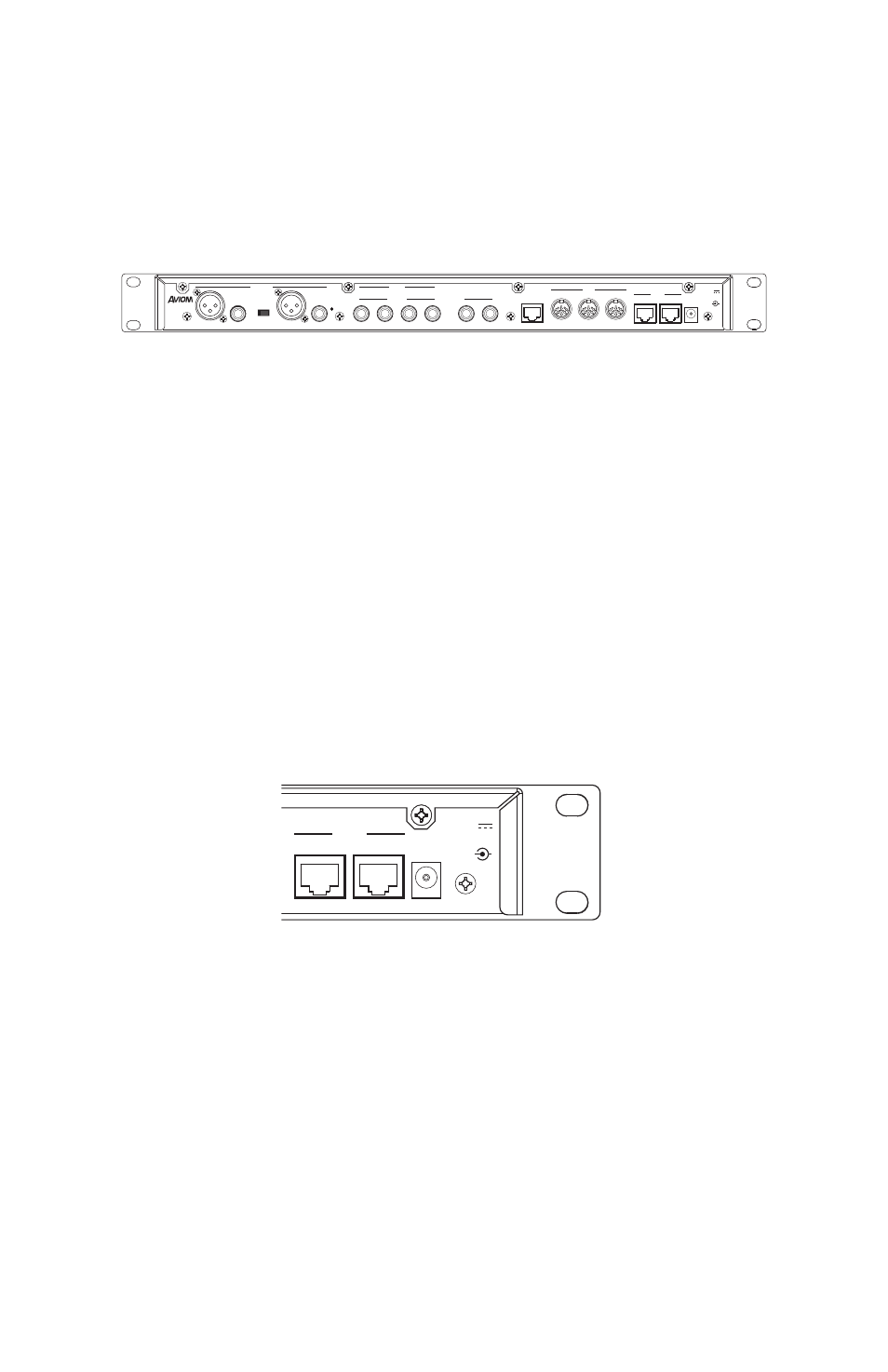

A-16R Rear Panel
On the rear of the A‑16R Personal Mixer you will find the A‑Net connectors,
the power supply input, insert points, auxiliary mix input jacks, MIDI I/O, the
A‑Control connector, and the XLR and TRS line‑level audio outputs.
Regulated
500 mA DC
Power AA--1166RR
18-24V A-Net
Out In A-Control
MIDI
Out Thru In Return Send
R L R L
Left Right
Mono/Stereo
Mix In
R L
Personal Mixer
/T/Pin 2 +_
/S/Pin 1
/R/Pin 3
Line Out Insert
A-16R rear panel
A-Net Connectors
There are two A‑Net connectors on the rear of the Personal Mixer.
The A‑Net In jack on the A‑16R accepts
the A‑Net signal coming from the A‑Net input module if •
the A‑16R is the first Pro16 device in the system, or
the digital A‑Net signal coming from the A‑Net Out jack of
•
another Personal Mixer, or
the digital A‑Net signal coming from the A‑Net Out jack of
•
a Pro16 A‑Net output module such as the AN‑16/o, or
the A‑Net Out signal from an
• A‑16D or A‑16D Pro A‑Net
Distributor
Regulated
500 mA DC
Power AA--1166RR
18-24V
A-Net
Out In A-Control
MIDI
Out Thru In Return Send
R L R L
Left Right
Mono/Stereo
Mix In
R L
Personal Mixer
/T/Pin 2 +
_
/S/Pin 1
/R/Pin 3
Line Out Insert
A-Net Out and A-Net In
The A‑Net Out jack on the A‑16R is used to connect another Pro16 A‑Net
device. This will send the same sixteen audio channels being transmitted
by the A‑Net input module to the next A‑Net device so that another unique
monitor mix can be created. An unlimited number of A‑Net devices can be
connected in series using this method. Any A‑Net device, including A‑Net
Distributors can be connected.
Cat‑5e cables between Pro16 A‑Net devices can be up to 500 feet (150 meters)
in length each.
