To rack mount the A‑16R Personal Mixer, position it in the equipment rack
at the desired location. Use standard rack‑mounting screws (10‑32 size) to
attach the unit to your rack hardware. Tighten all four screws firmly, but
avoid overtightening.
You may want to use non‑metallic washers between the rack‑mounting
screws and the device’s finished surface to avoid marring the painted finish
on your Aviom products.
Always allow adequate ventilation for devices mounted in equipment racks.
Avoid placing your A‑16R Personal Mixer directly above or below other rack‑
mounted gear that produces high levels of heat, such as power amps.
Channel Labels
For writing channel information or names on the A‑16R Personal Mixer (or
A‑16CS) label surface or “scribble strip”, we suggest using a china marker or
other easily removed marking device. A china marker is designed for marking
on plastic, metal, glass, wood, and paper. These are available at most office
supply outlets. Avoid the use of permanent markers. Optionally a strip
of removable artist’s tape can be used instead of writing directly on the
product’s surface.
11 22 33 44 55 66 77 88 99 11 00 11 11 11 22 11 33 11 44 11 55 11 66
Sa
ve
AA--1166RR
Personal Mixer
Solo
Mute
In Recall Mode - All Volumes Zero
Recall
Group Phones
MIDI On
Local
Remote
MIDI Off
M
ut
e
Se
le
ct
M
ut
e
Se
le
ct
M
ut
e
Se
le
ct
Mix In Bass Treble
Master
Volume
Volume
Pan
A-Net
Active
_ + _ +

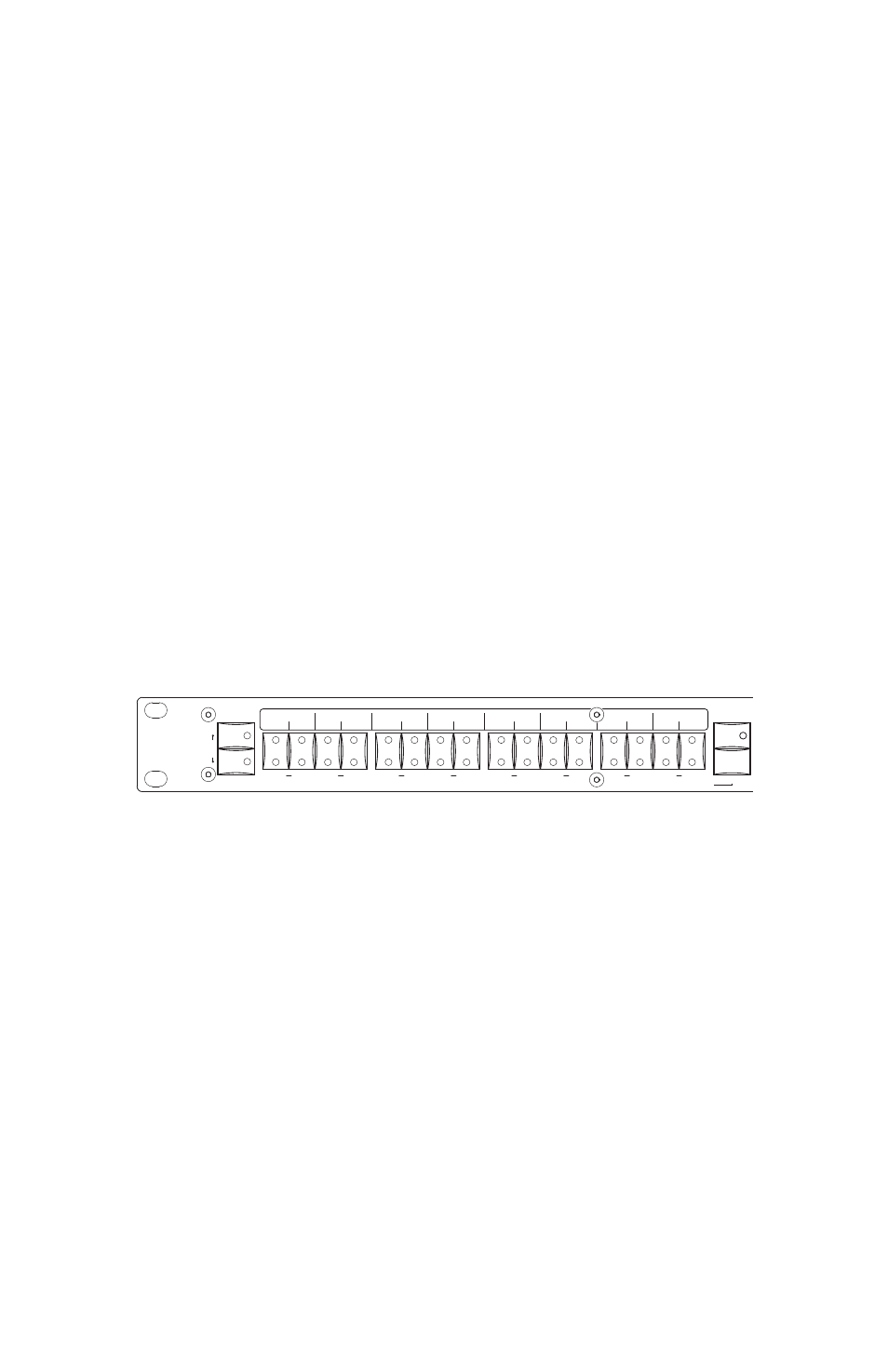

Mixer Label Strip above the channel select buttons
To clean the label area on the A‑16R Mixer or A‑16CS, use a soft clean cloth to
remove most types of temporary marking materials. For difficult‑to‑remove
types of marking devices, a cotton swab moistened with a drop of rubbing
alcohol can be used. Use the minimum amount possible to remove the
writing.
