I NSTALLATION
„
3.07 T HERM E LECT
BRICK LOADING
Step 1 Remove the painted front panel of the brick Storage Module(s) by removing
the sheet metal screws along the top, bottom, and sides of the panel. Detach
by pulling the bottom of the panel forward and down.
Step 2 Remove the sheet metal screws around the outer edge of the galvanized front
panel. Remove the panel and set it aside.
Step 3 Starting at the bottom, carefully lift each of the insulation blankets and drape
them over the top of the Storage Module(s).
Step 4 Remove the rigid insulation boards and place to the side in the order
removed.

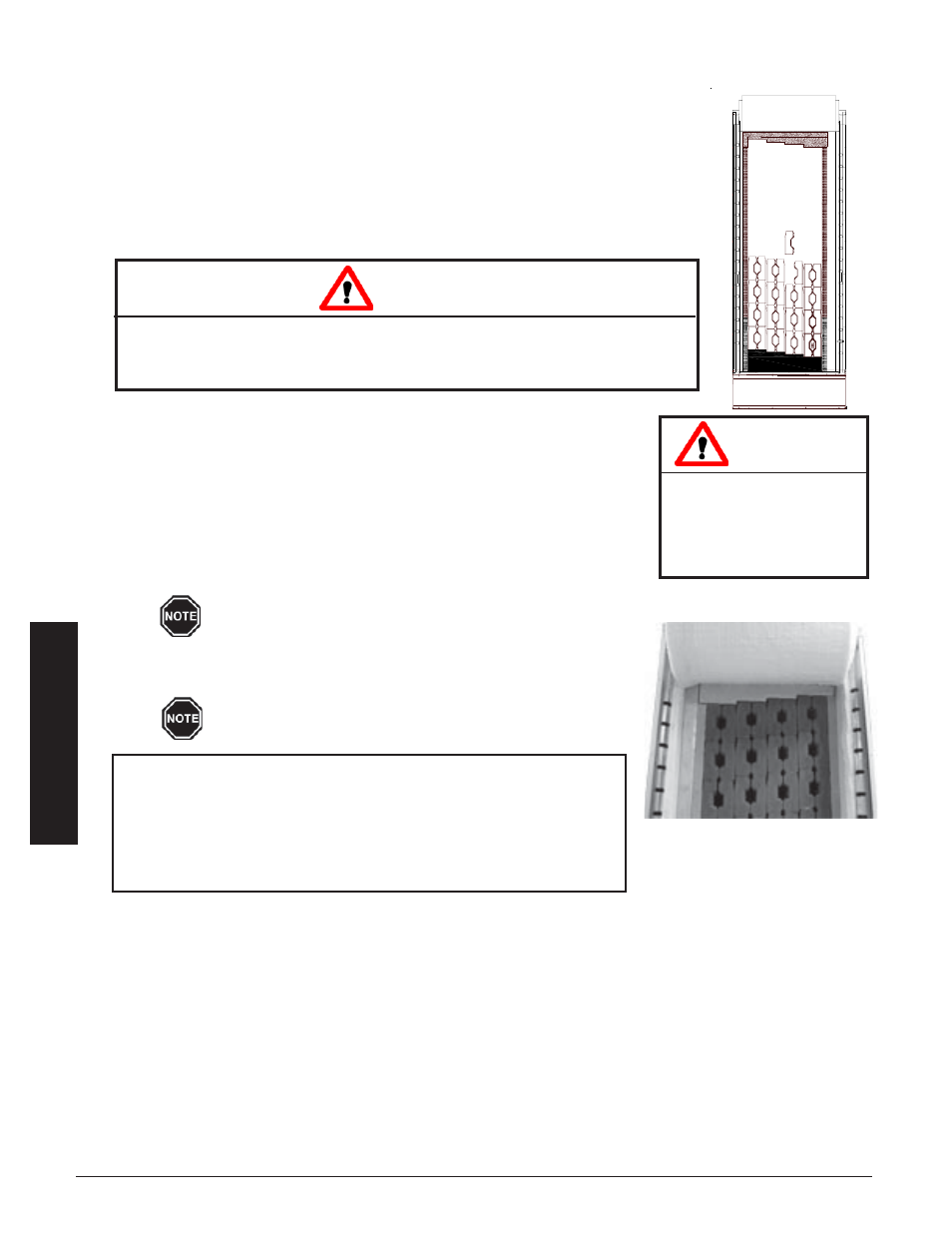

Step 5 Load the brick, one row at a time, starting at the back of the brick
core and working forward. Load bricks as shown in Figure 12. Make
certain brick debris does not interfere with brick alignment front to
back.
Step 6 Install top air channel block by sliding it up and back into place on top
of the bricks. (See Figure 13)
For ease of installation, install top block while loading
bricks.
Step 7 Install rigid insulation boards into the Storage Module(s) in the order
they were removed in Step 4.
The holes in the rigid insulation board MUST line up
with the brick openings so elements can be installed.
Installation
Risk of injury or fire. DO
NOT operate the system if
damage to the insulation
panels on the inner sides
of the brick core occurs.
WARNING
BRICK LOADING
FIGURE 12
Risk of equipment damage or personal injury. Insulation boards located behind
the insulation blankets may fall out when blankets are lifted. Use caution when lifting
insulation blankets to avoid personal injury or damage to the insulation boards.
CAUTION
FIGURE 13
BRICK INSTALLATION TIPS:
• Install bricks carefully to avoid damage to the insulation panels.
• Remove loose brick debris to prevent uneven stacking of brick
as this can make installation of the elements and the brick core
temperature sensor(s) difficult.
• Brick rows MUST line up front to back and top to bottom.
