Caution, Warning, Initial set-up – Steffes 8188 User Manual
Page 13: Attaching storage module(s) to air handler
INITIAL SET-UP
Step 1
Remove the Information Package from the outside of the
electrical panel and unpackage the Storage Module(s) and
Air Handler.
Step 2
Move the system into its installation location. Optional liftting
handles are available from the factory. (Order Item
#1302120).
If using Steffes lifting handles, remove
painted front and back panels from brick
storage cavity.
ATTACHING STORAGE MODULE(S) TO AIR HANDLER
Each side of the Air Handler has a Storage Module Inlet/Outlet Opening, Limit Access Panel
and knockout. If using only one Storage Module follow the instructions below for the side of
the Air Handler where the Storage Module will be attached.
Step 1
Remove the screws around the Storage Module Inlet/Outlet Opening(s) on the side of the Air Handler
where the Storage Module will be placed. (See Figure 3.)
Step 2
Remove the front painted panel from the Air Handler and set aside.
Step 3
Lift the Storage Module Inlet/Outlet Opening cover(s) out through the front of the Air Handler.
Step 4
Attach the top and bottom C-clip drive brackets and the side L brackets to the Air Handler.
(See Figure 3.)
When attaching the top C-clip drive bracket, use the top row of screw holes.
Installation
T
HERM
E
LECT
I
NSTALLATION
3.04

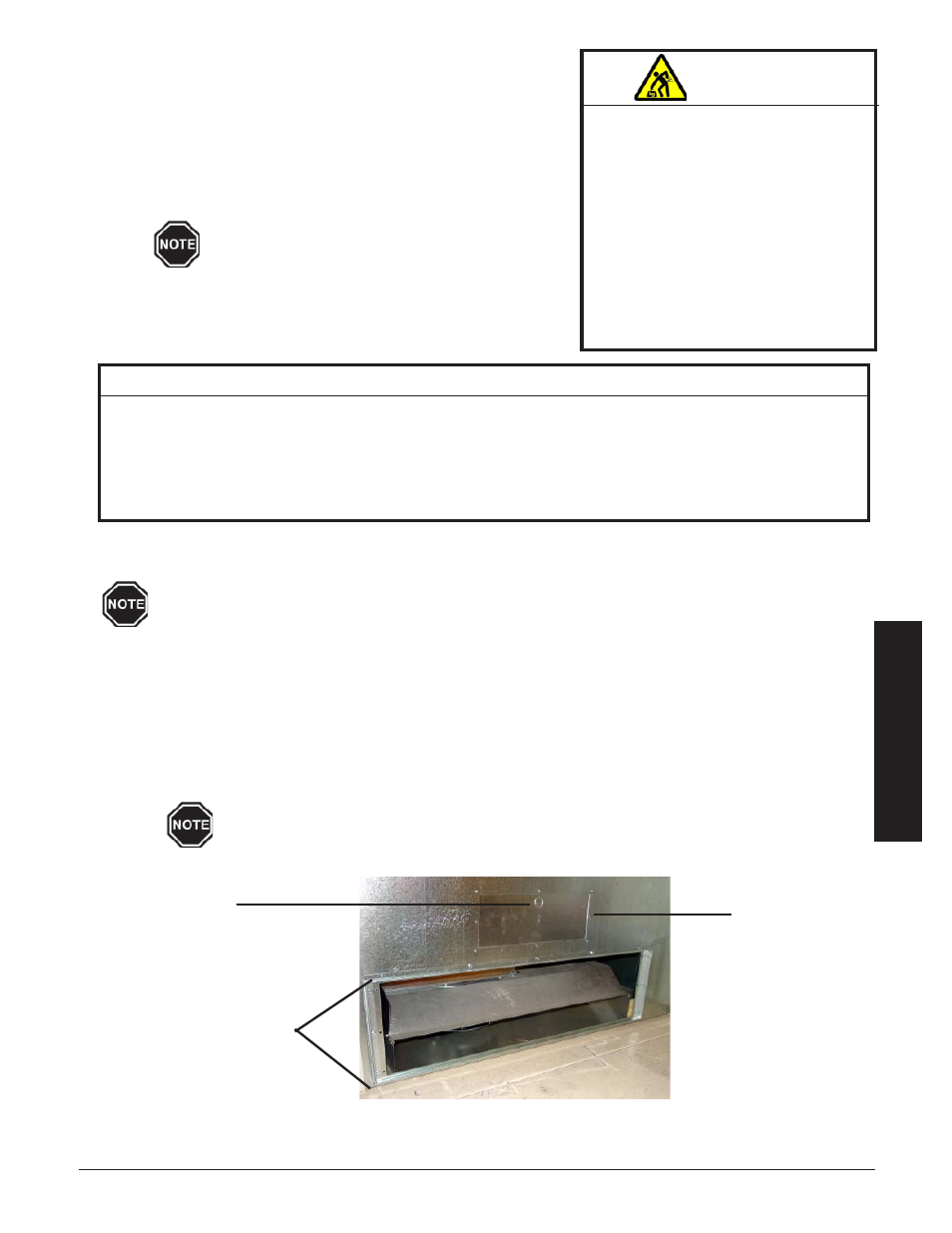

FIGURE 3
Knockout
Limit Access
Panel
Storage Module
Inlet/Outlet Opening
(Cover Removed)
CAUTION
Risk of improper operation or equipment damage. Read and follow installation instructions carefully.
DO NOT install the system on its shipping pallet.
DO NOT extend the leveling legs more than one inch.
DO use and follow generally accepted safety practices when handling insulation materials.
Equipment MUST be installed by qualified technician in accordance with all applicable codes and regulations.
WARNING
HEAVY OBJECT WARNING: Risk
of personal injury, or death.
ThermElect Hydronic systems
are heavy. Use lifting aids to
move system into place.
Do not place object, hands,
and/or body parts under the
system when lifting.
Do use care to keep objects,
hands, and/or body parts clear
of system when lifting.
