Installation

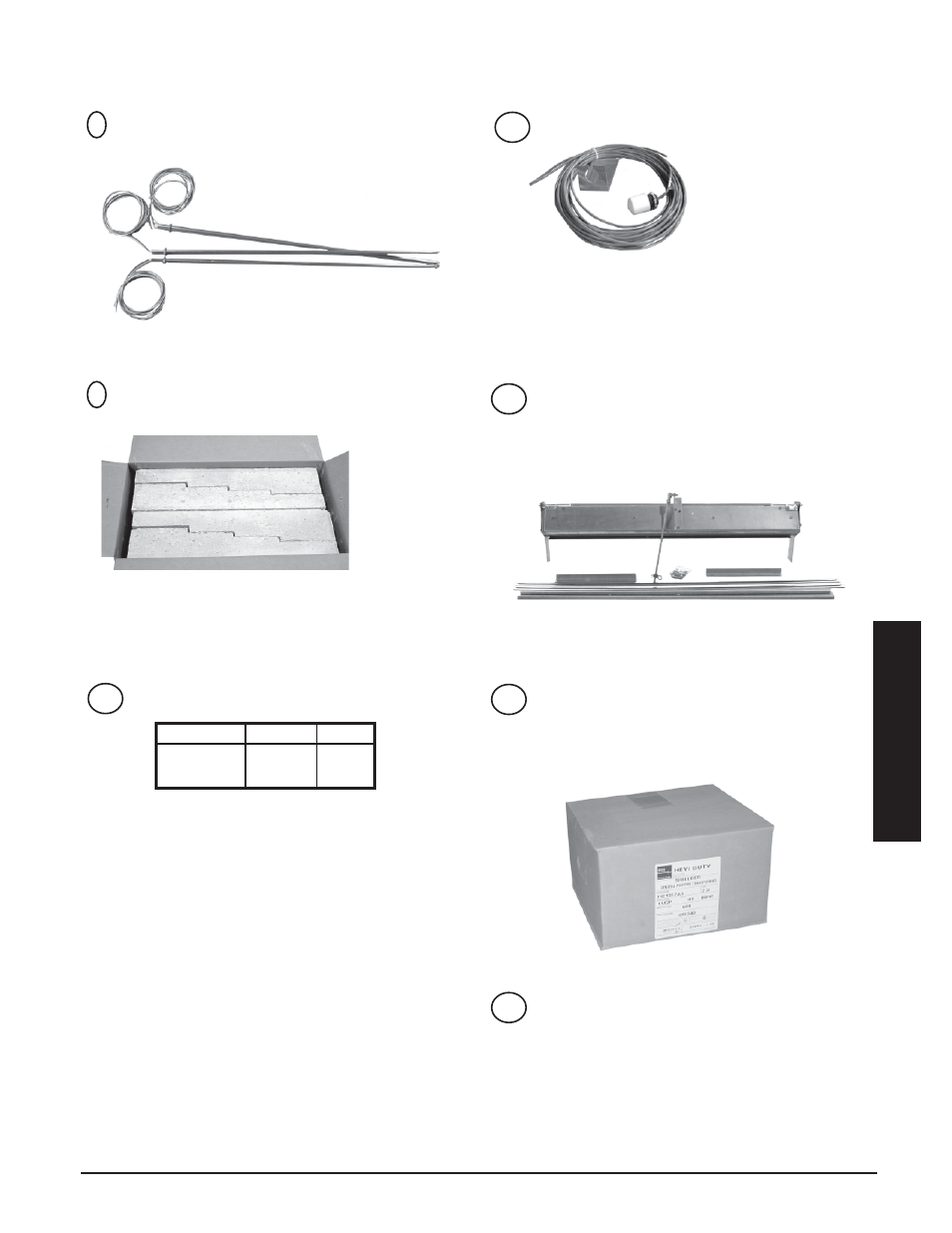

SHIPPING AND PACKAGING CONTINUED...
T HERM E LECT I NSTALLATION
„
3.02
CORE THERMOCOUPLE
WITH 6' CLEAR PLASTIC TUBE
8
53 kW = Qty 2 per module
80 kW = Qty 3 per module
CERAMIC BRICK
MODULE BRICK LBS
53kW 192 3,360
80kW 288 5,040
96 brick per pallet
(shipped separately)
(shipped inside the
electrical panel)
OUTDOOR TEMPERATURE SENSOR
11
HIGH VOLTAGE KIT
(277V & 347V SYSTEMS ONLY)
13
Sized for Air Handler
(includes fuses and transformers)
(shipped separately)
OUTLET DAMPER KIT
1 per Storage Module
(includes Damper Assembly, Damper Linkage, 2
- L Brackets, 2 - C Clip Drive Brackets,
2 - C Drives, Hardware Screw Kit)
(shipped separately)
12
(shipped inside the electrical panel)
TOP AIR CHANNEL BLOCK
(shipped separately)
9
1 box of 4 per Storage Module
14 TRANSFORMER WIRING HARNESS
(277V & 347V SYSTEMS ONLY)
(shipped in electrical panel)
10
