This installation information is designed for experienced installers and is not in­
tended for non-technical individuals. It does not contain warnings or cautions of po­
tential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than qualified in­
staller could cause damage to the electrical system and could result in serious per­
sonal injury or death.

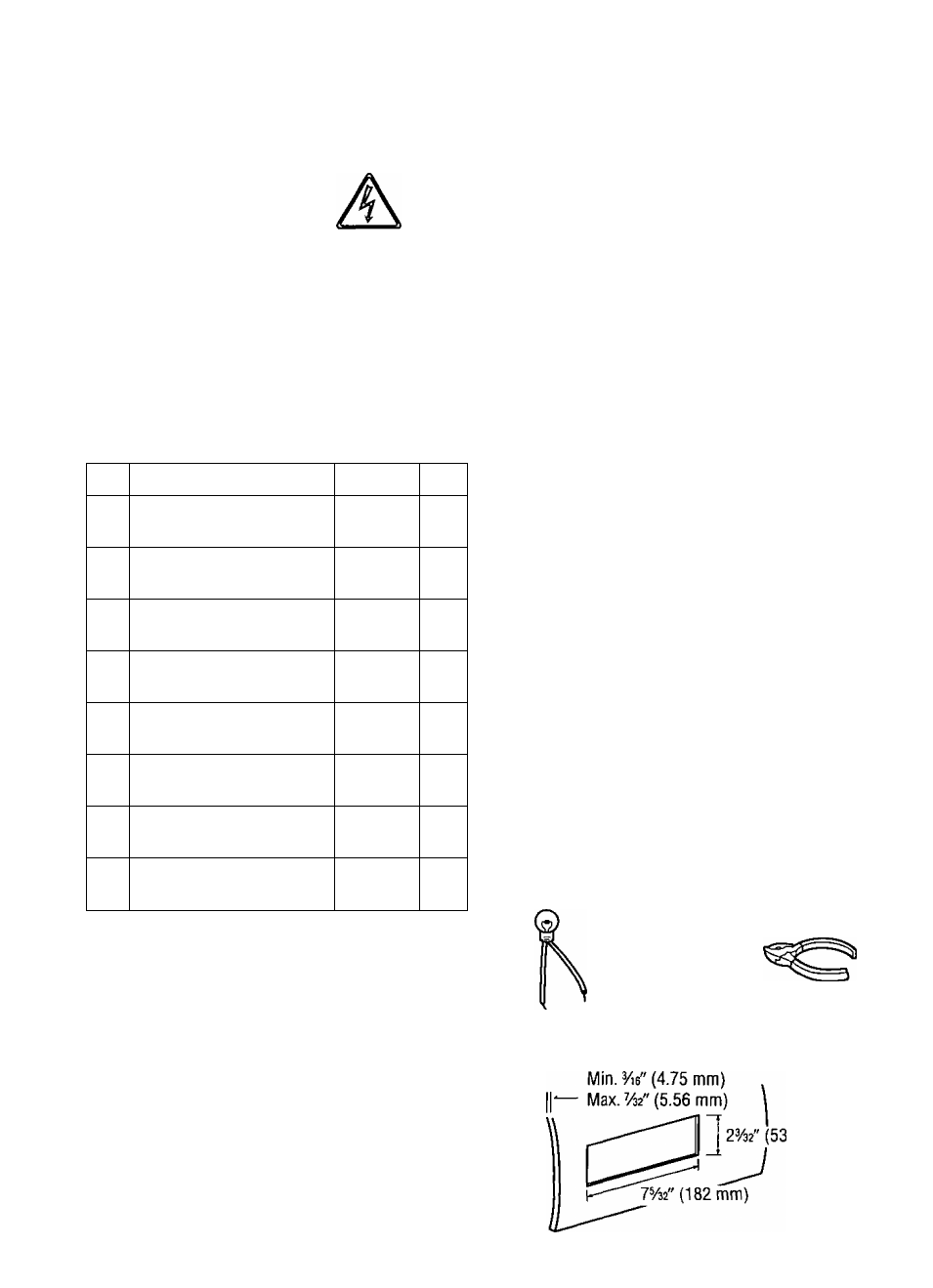

□ Installation Hardware
No. Item Diagram Q’ty
0 Mounting collar
1
Hex. nut (5 mm
0
)
1
Rear support strap
1
0 Tapping screw
(5 mm0x16 mm)
1
® Mounting bolt (5 mm
0
)
1
0 Power connector 1
® Removable face plate case
1
Trim plate
1
18
□ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement
above.)
о Identify and label the car wires,
о Connect the car wires to the wires of the power
connector.
о Install the unit in the dashboard,
о Check the operation of the unit.
тшт
If you encounter problems, please consult your
nearest professional installer.
Caution: This unit operates with a 12 volt DC nega­
tive ground auto battery system only. Do not at­
tempt to use it in any other system. Doing so could
cause serious damage.
Before you begin installation, look for the items
which are packed with your unit.
o Warranty Card... Fill this out promptly,
o Panasonic Servicenter for Service Directory
...Keep for future reference in case the product
needs servicing.
oInstallation Hardware... Needed tor in-dash in­
stallation.
□ Required Tools
You’ll need a screwdriver, a 1.5 volt AA battery, and
the following:
12 V DC Electrical Side-cut
Test bulb tape pliers
□ Dashboard Specifications
Thickness
