Electrical Connection
Caution:
• Confirm the note on page 4, and make connections to the connectors on car side.

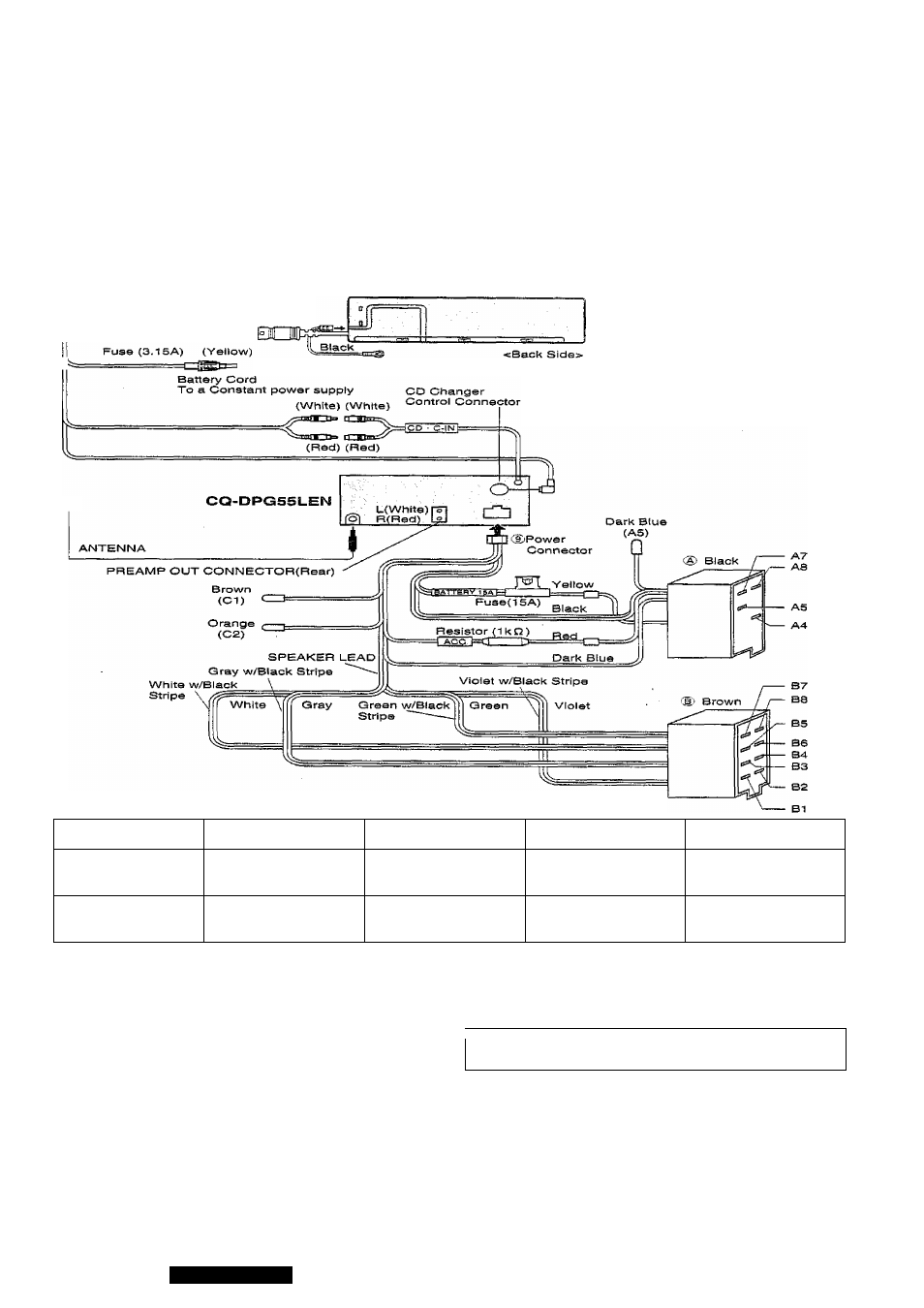

• To prevent damage to the unit, be sure to follow the connection diagram below.
• Remove the covering of the leads about 5 mm long from their end before connecting, {the cords except for ISO
connector’s cords)
• Do not insert the power connector into the unit until the wiring is completed.
• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and
keep cable terminals free from touching any metai parts.
CX-DP601EN
Extension Cord (DIN/BATT/RCA)
=ш[11Е^ —
® This unit can be connected to an
optional CD changer {CX-DP600
EN/AEN or CX-DP1200EN).
For details consult your nearest
authorized Panasonic Dealer.
® For connection to a CD changer,
refer to the operating instructions
of the CD changer (CX-DP600EN/
AEN or CX-DP1200EN).
Loudspeakers (connector B)
Left Left- Right -H Right -
Front B5 (White)
B6 (White w/Black
Stripe)
B3 (Gray)
B4 (Gray w/Black
Stripe)
Rear B7 (Green)
B8 (Green w/Black
Stripe)
B1 (Violet)
B2 (Violet w/Black
Stripe)
A4 A8
BATTERY LEAD (To Battery of Car) (Yellow)
Connect to the ‘BAT’ terminal on the fuse block of the car.
The power should be supplied continuously to the yellow
leads regardless of the on/off position of the ignition key.
GROUND LEAD (Black)
Connect to a well grounded metallic part of your car.
Cl
A5
MOTOR ANTENNA RELAY CONTROL LEAD (Dark Blue)
(To Motor Antenna) (Max. 500mA)
This lead is not intended for use with switch actuated power
antenna.
AMP.RELAY CONTROL POWER LEAD
This lead is for connection to Panasonic power amplifier.
— ------------------------------------ \
Not Used
V____________________________ J
C2
A7
POWER LEAD (Red)
Connect to the “radio" power line of the car or to the “IGN"
or "ACC” terminal of the fuse block.
TELEPHONE MUTE LEAD (Orange)
(To car telephone mute line)
TELEPHONE MUTE
The telephone mute lead, if connected to the car telephone
mute line, will activate the muting circuit and the sound from
the speakers cannot be heard while the telephone conver­
sation is in progress.
Note: This telephone mute lead is for connection only to the
radio mute line. Be sure to ascertain this because it will not
work with other type of output system.
40
CQ-DPG55LEN
