3. Plug the Power Connector d).

4. After instaSiatlon reconnect the nega­

tive (—) battery terminal.

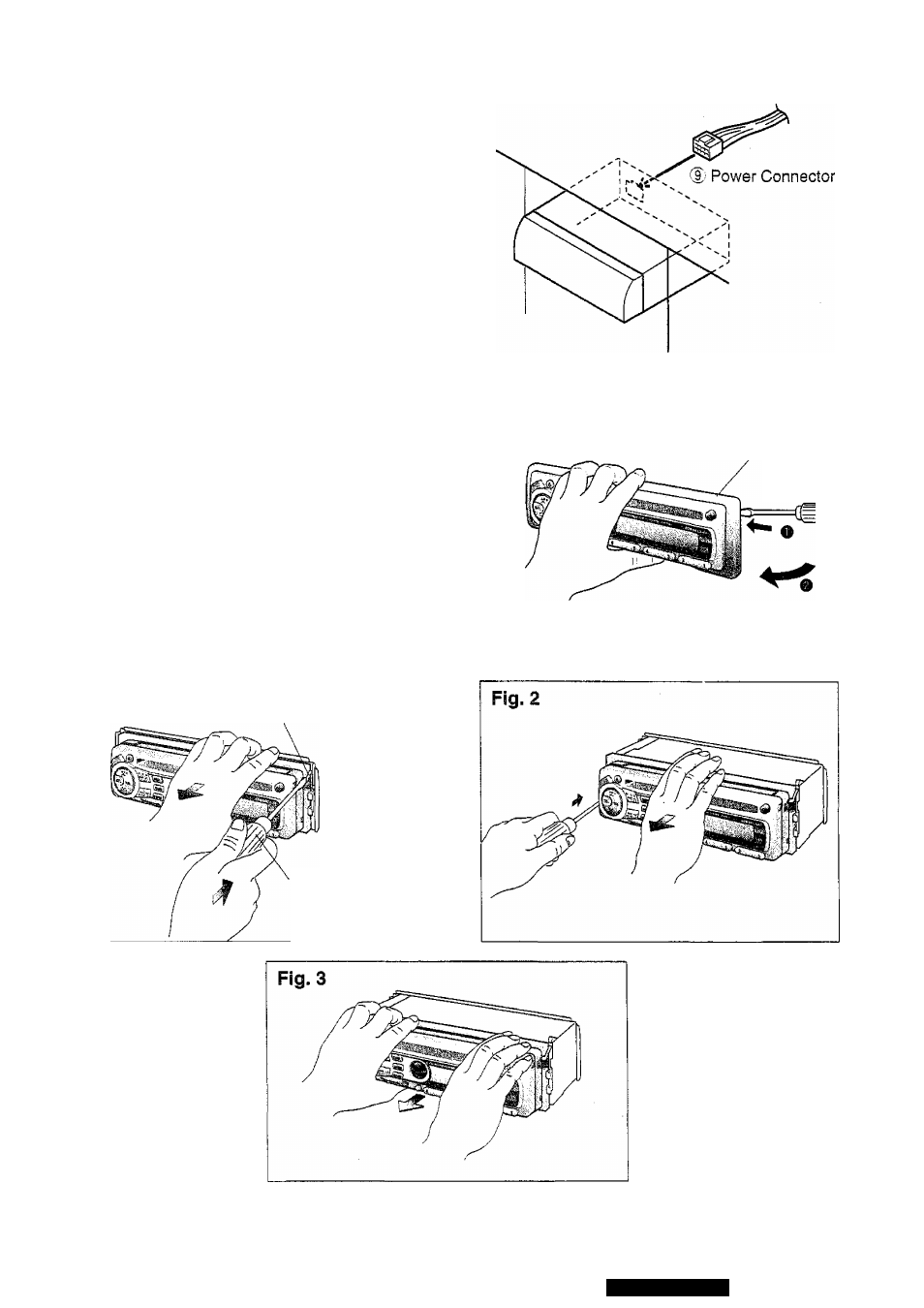

To Remove the Unit

a) Remove the trim plate with a screwdriver as shown in

the figure.

b) Pull out the unit while pushing two lock levers using

Screwdriver in the following order. {Fig. 1,2)

c) Remove the unit pulling with both hands. (Fig. 3)

Trim Plate

Screwdriver

Fig. 1

Lock Lever

Screwdriver

CQ-DPG55LEN

39
