Precautions (ISO connector)
• Wiring for the power connector conforms to the arrangement of standard ISO connectors,
® In case of some car types, the arrangement of connector may differ from the standard ISO as
shown in Table 1, even though ISO connectors are adopted.

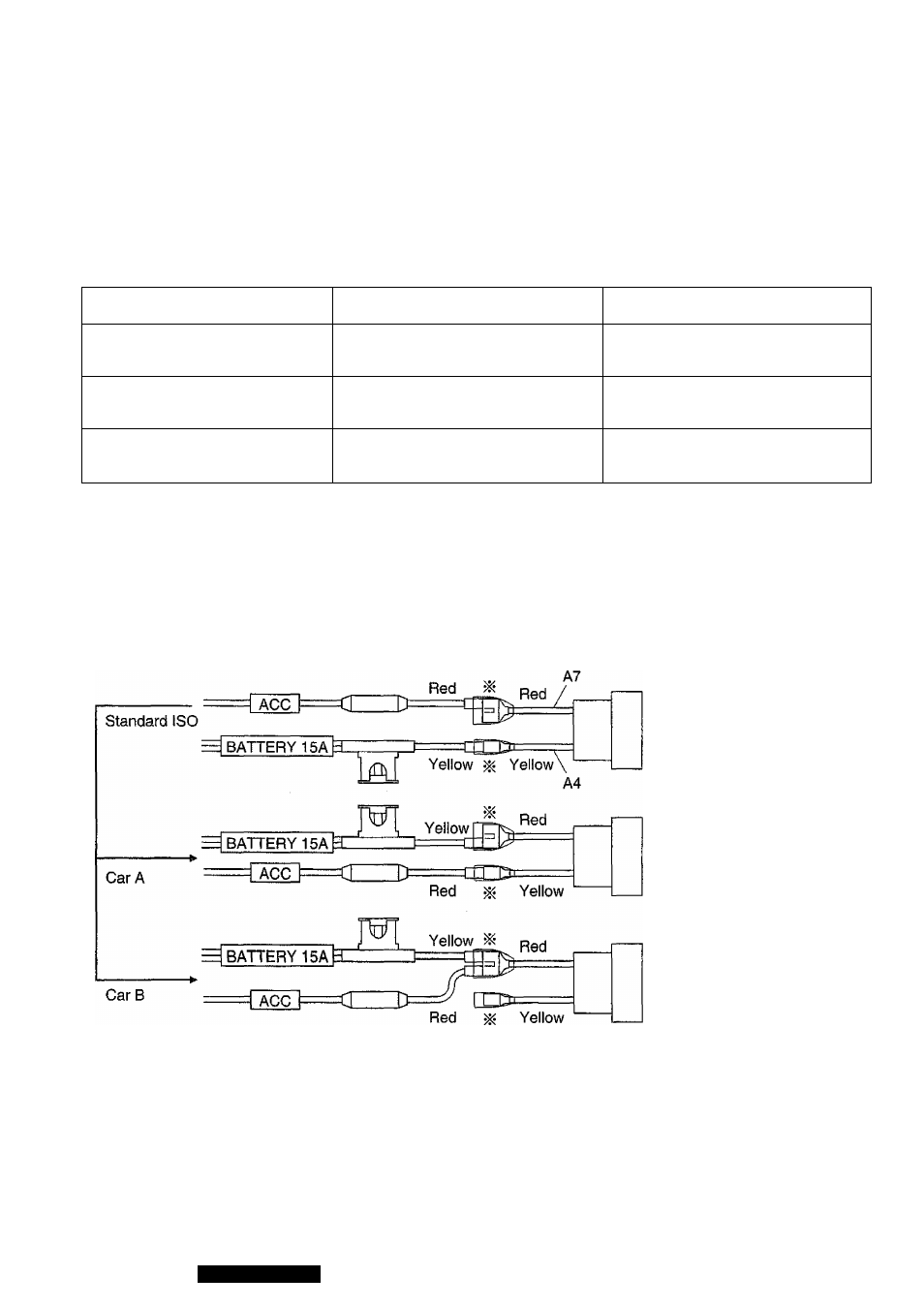

Table 1
A4 A7
Car for standard ISO
Battery
(permanent 12 V supply)
‘1GN”or‘ACC”
(switched 12 V supply)
In case of Car type A
“IGN”or‘ACC”
(switched 12 V supply)
Battery
(permanent 12 V supply)
In case of Car type B No Connection
Battery
(permanent 12 V supply)
e Make sure the ISO connector arrangement in your car side is as same as the standard ISO.
(Table 1, Fig. 1)
® In case of arrangement for Car type A or B, change connections of the red/yellow leads at the
re-connectable joint (iii) as shown in Fig.1.
Fig.1
A7: ACC/IGN Switch
° +12V
A4 : +12V Battery
A7 : +12V Battery
A4 : ACC/IGN Switch
--------------------------------
+12V
A7 : +12V Battery
A4 : NC
• After fix the connections, the part should be insulated with electrical tape to keep away
from unit damage.
CQ-DPG55LEN
