Parts and Functions

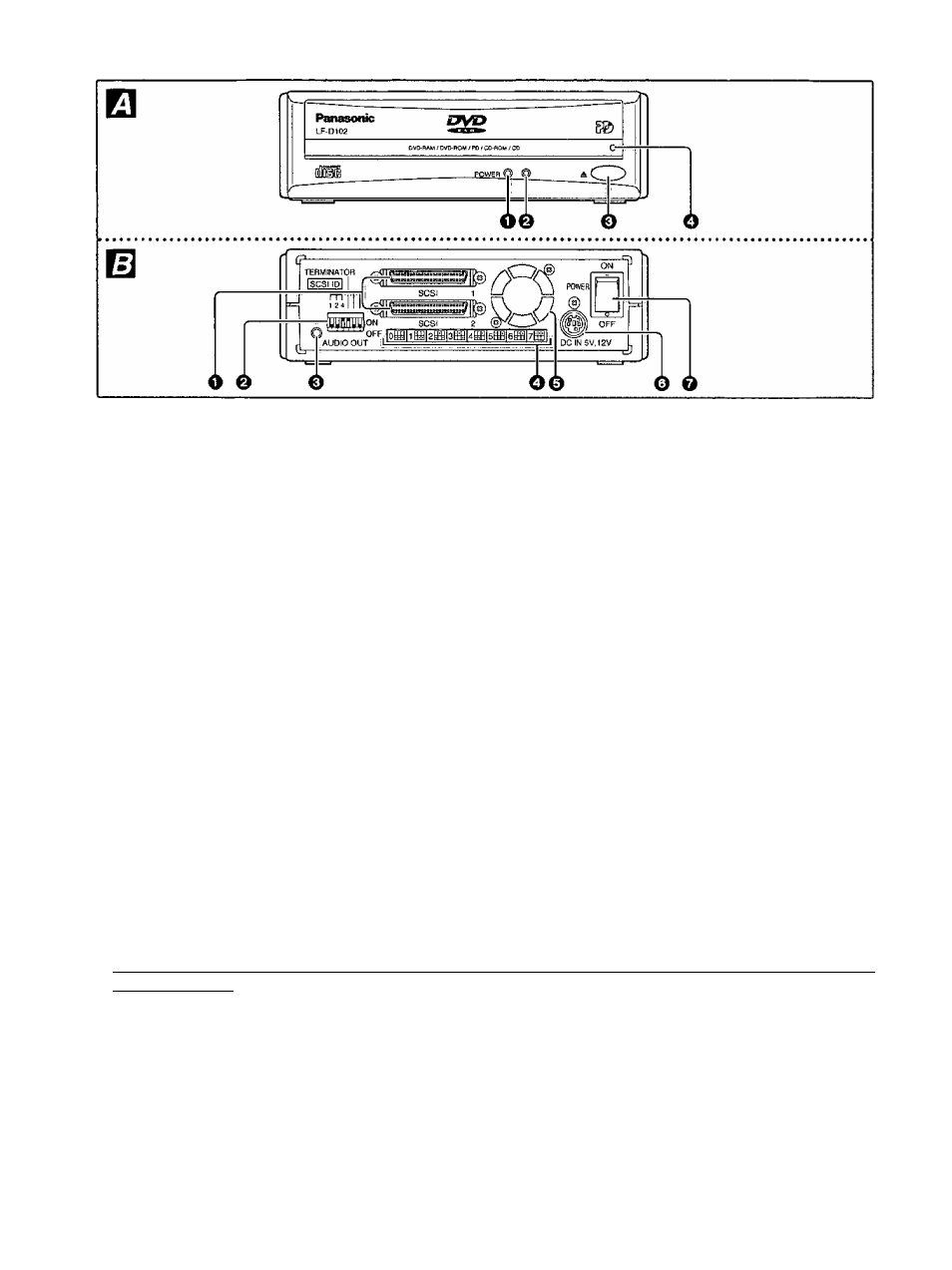

Front panel Q

OPower indicator

Off: DVD-RAM drive is off
Green: DVD-RAM drive is on

OOperation indicator lamp

Off:

No media inside

Steady Green:

Media inserted in DVD-RAM drive

Steady Orange: Recording, piayback or tray opening/closing

Flashing Green: Error (See page 35.)

OOpen/close button

For opening and closing the tray.

O Manual eject hole

Used to manually eject tray in the event that the tray does not eject normally using the open/close button or

software commands.

Pulling out the tray

1. Power off the DVD-RAM drive.

2. Gently insert the emergency ejection pin (included) until shutter opens slightly.

3. Remove the emergency ejection pin.

4. Use your hand to open shutter.

5. Pull out the tray horizontally using your fingertips.

To close the tray after it has been manually pulled out, turn on the DVD-RAM drive’s power and press the
open/close button. (Depending on the position of the tray, it may automatically retract inside the DVD-RAM
drive as soon as the power is turned on.)

Do not use this procedure under normal circumstances as it mav result in the malfunctioning of the
DVD-RAM drive.

Rear panel

audio

out

terminal

Connect half-pitch 50-pin SCSI cables (not included).

Used to change the settings for the terminator and SCSI ID (see page 12).
Connect an audio cable (not included).

Refer to these when changing the settings with the function switches.

Operates if the temperature in the DVD-RAM drive rises. It does not operate under
normal conditions.
Connect the AC adaptor (included).
Switch to turn the DVD-RAM drive on and off.
