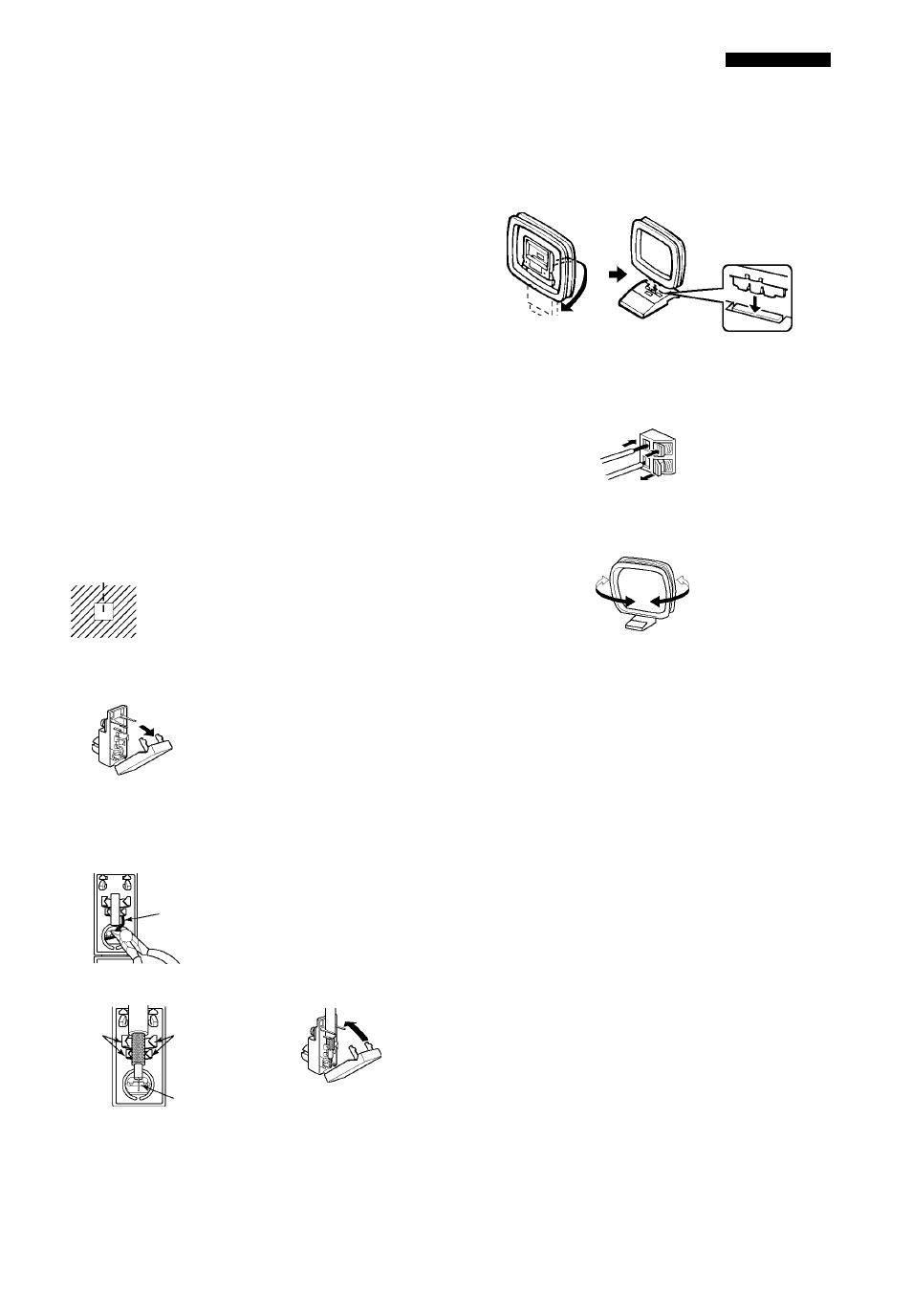

Connecting the antennas
CONNECTIONS
Both AM and FTVI indoor antennas are included with this
unit. In general, these antennas should provide sufficient
signal strength.
Connect each antenna correctly to the designated
terminals.
AM loop antenna
(included)
Indoor FM
antenna
(included)
Ground (GND terminal)
l-'nr maximum safety and minimum
interference, connect the antenna GND
terminal to a good earth ground. A good
earth ground is a metal stake driven into
moist earth.
75-ohm/300-ohm antenna adapter (U.K. model)
1
Open the cover of the
included 75-ohm/300-ohm
antenna adapter.
Lead wire
11 (7/16)
8(5/16) Unit: mm
6(1/14)LT (inch)
Cut the external sleeve
of the 75-ohm coaxial
cable and prepare it for
connection.
Clamp
with
pliers.
Cut the lead wire and
remove it.
Clamp with
pliers.
Insert the wire Snap the cover into
into the slot. place.
Insert the cable wire into the
siot, and ciamp it with pliers.
■ Connecting the AM loop antenna
11 Set up the AM loop antenna, then connect it.
fÜ Press and hold the tab to insert the AM loop
antenna lead wires into the AM ANT and
GND terminais.
ET Orient the AM loop antenna for the best
reception.
Notes
• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
A properly installed outdoor antenna provides clearer
reception than an indoor one. If you experience poor
reception quality, an outdoor antenna may improve the
quality. Consult the nearest authorized YAMAHA
dealer or service center about the outdoor antennas.
FREQUENCY STEP switch (China and General
models)
Because the interstation frequency spacing
differs in different areas, set the
FREQUENCY STEP switch (located on
the rear panel) according to the frequency
spacing in your area.
North, Central and South America:
100 kHz/10 kHz
Other area: 50 kHz/9 kHz
Before setting this switch, disconnect the
AC power plug of this unit from the AC
outlet.
FM/AM 50kHz/9kHz
lOOkHz/IOkHzT
T3
JJ
m
5
3D
o
z
