Placement oí speakers
Superwoofer
2.Ì* La
Center speaker
I ft I nil
Front speaker (Left)
(£)
^^Laj
I Surround speaker (Lett)
I C£)
¡1 jiTiTin jjtl jk itLojjj
TV (not included)
[3^j^ jtf^)
Front speaker
(Right)
(^)
Main unit
±t/l
Surround speaker (Right)
(^)
(^ip^fli) j itiVl r, ^L oé U ü
fcfe"rri^nÌi':òf|fjra
aí,&a;s/н*н-.'.
Place the speakers so that the superwoofer is on the outside. El
•Keep your speakers at least 10 mm away from the system for
proper ventilation.
•To avoid damage to the speakers, do not touch the speaker
cones if you have taken the nets off.
m
Center speoker
Place the center speaker above your TV, as close to it TV as pos­
sible.
Surround speakers
As well as enjoying normal stereo reproduction with the left and
right front speakers, surround speakers can also be connected to
the system in order to enjoy a feeling of depth and movement of
sound.
Place the speakers with the Panasonic logo facing toward the lis­
tening position.
We recommend that surround speakers be placed on the side of or
slightly behind the listener at ear level.
However, the position should be adjusted to your personal prefer­
ence, because the effect varies to some degree depending upon
the type of music and the music source.

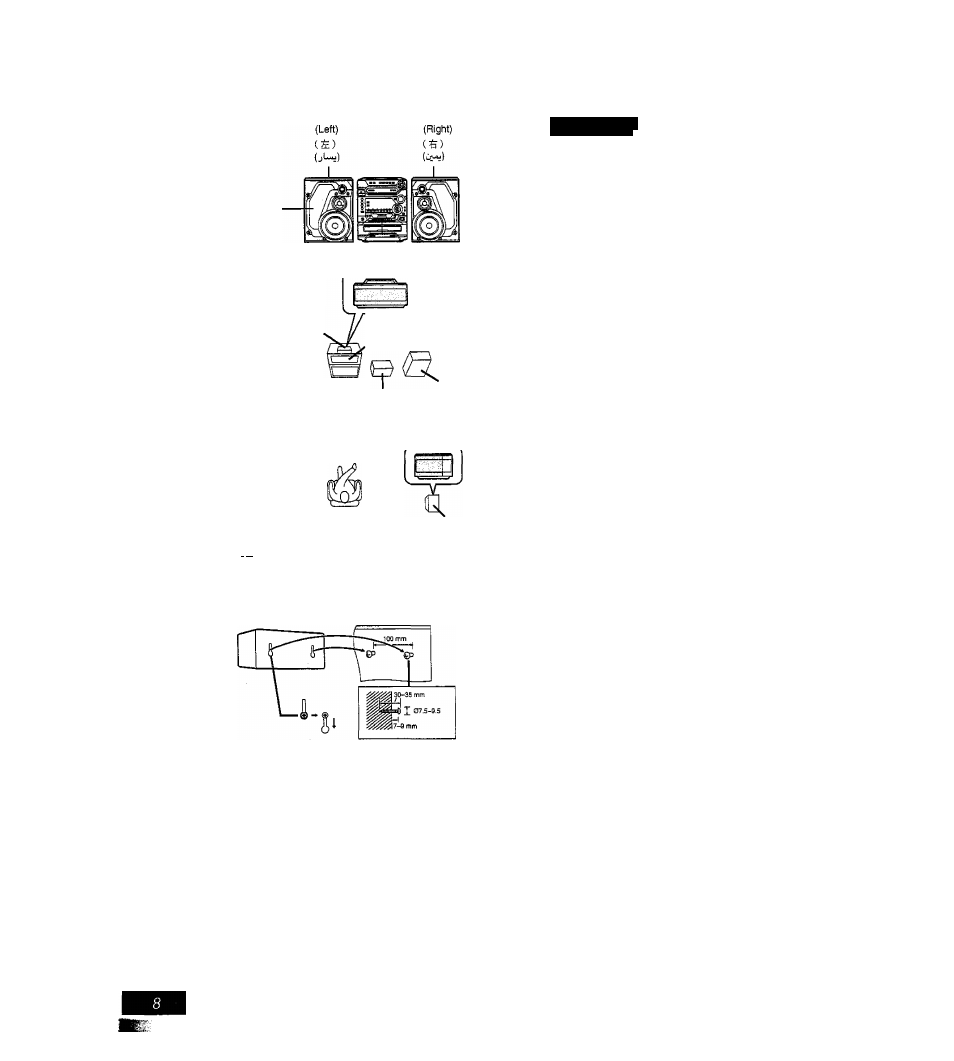

Attaching to a wall B
Set speaker onto screws and slide through bracket to lock into po­
sition.
The wall or pillar on which the speaker systems are to be attached
should be capable of supporting a weight of 5 kg.
Caution
•Use the speakers only with the recommended system.
Failure to do so may lead to damage to the amplifier
and/or the speakers, and may result in the risk of fire.
Consult a qualified service person If damage has oc­
curred or if you experience a sudden change In perfor­
mance.
•Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
The speakers are made so they can be used in close proximity of a
TV, but irregular coloring may result due to how the system is
placed. If such distortion occurs, turn off the TV for between 15 and
30 minutes. The demagnetizing function of the TV will eliminate the
distortion. If the irregular coloring is stili visible, when the TV is
turned on again move the speakers further away from the TV.
