MTS Broadcast/VHS Hi-Fi Stereo System

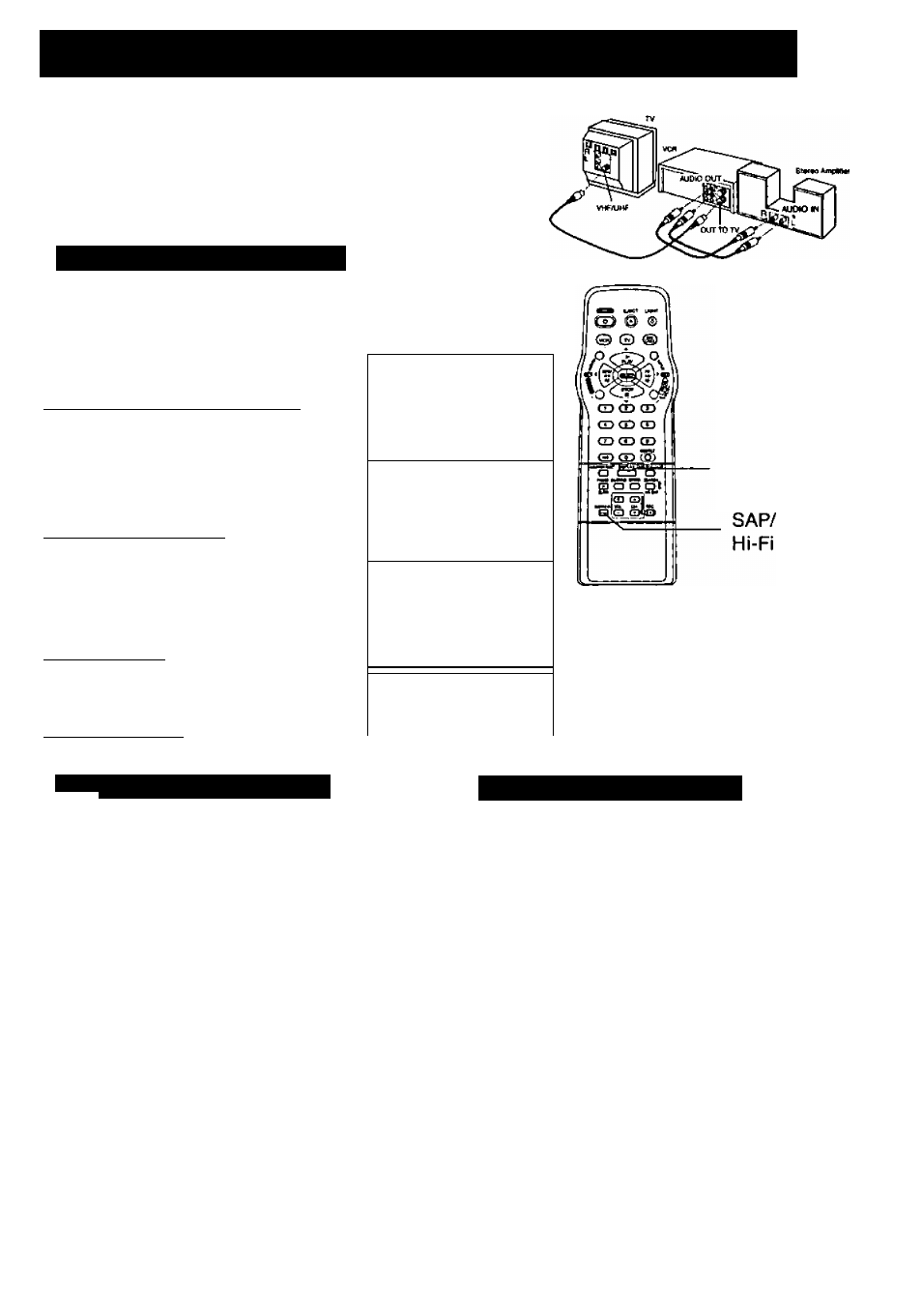

Connection
Make the Audio/Video Connection as shown
on the previous page.
• You can use a TV connected to Stereo amp
and speakers instead of a Stereo TV.
Receivable BroadcastTypes
The following are possible audio broadcast types and on-screen displays.
The signal being received is indicated with an “(((" mark while the selected
audio mode is indicated with an arrow.
Todisplay the broadcast signal being received,
~> press DISPLAY.
MTS Stereo and SAP broadcast
Multi-channel Television Sound Stereo (main
language) and Secondary Audio Program (sub
language) broadcasts are being received
simultaneously. Select STEREO or SAP audio
mode.
MTS Stereo broadcast
Multi-channel Television Sound Stereo
broadcast. Select STEREO audio mode.
• If stereo broadcast is weak and display
flickers, select MONO audio mode for
possibly better results.
SAP broadcast
Secondary Audio Program (sub
language) broadcast. Select SAP audio
mode for the sub language.
MONO broadcast
Normal monaural sound broadcast.
STOP 12:00AM
0
i STEREO ■«
► SAP
MONO
ABC
(00:00
SP
STOP 12:00AM ABC
0 :00:00
►STEREO M SP
SAP
MONO
STOP 12;OOAM ABC
C :00:00
STEREO SP
► SAP
<4
MONO
STOP 12:00AM ABC
C :00:00
STEREO SP
SAP
MONO
<
DISPLAY
Equipped with Noise
Reduction for true MTS
reproduction. dbx*-TV Noise
Reduction is required for good
stereo separation and audio
fidelity, dbx* is a registered
trademark, and is licensed by
dbx* Technology Licensing.
Audio Mode for Recording Audio Mode for Playback 1
Press SAP/ Hi-Fi
to display audio mode.
(Display disappears after 5 seconds.)
1
Start playback.
See page 14.
► STEREO
► SAP
MONO
Arrow indicates
selection.
Press SAP/ Hi-Fi
repeatediy to select
desired mode.
Refer to “Receivable
Broadcast Types' above.
Do a recording.
See page 15.
Press SAP/ Hi-Fi
to display audio mode.
(Display disappears after 5 seconds.)
Press SAP/ Hi-Fi
repeatedly to select
desired mode.
• Select “HIFI(L/R)" or
“HIFI{L)"or“HIFI(R)"to
listen to stereo
recordings in stereo
sound. Select “NORMAL"
for monaural sound.
RIFt(L/R|•
HIF1 (LI
NORMAL
Arrow indicates
selection.
Only tapes recorded in Hi-Fi stereo will playback with true stereo sound. Standard stereo tapes will
playback in monaural sound.
To listen to Hi-Fi stereo playback, the VCR AUDIO (L/R) jacks must be connected to a stereo TV or an
external stereo amp and speakers. (See top of this page.)
If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
Hi-Fi and normal audio playback volume level may differ. 25
