PARTS AND FUNCTIONS
ЙЮШПГ^Ш!й/
HEADPHONE JACK
Accepts a standard 3.5mm
stereo mini plug to connect
your headphones to the CD-
ROM Changer.
DISC TRAY
(inside)
Accepts up to
5 CD-ROM or
digital audio
discs.
Panasonic
5-
disc
CD-ROM
changer
SQ-TC520N
DISC WINDOW
Easy view “DISC WINDOW”. Visual confirmation of
which disc is loaded. The slot with the white mark
missing is the disc which is currently loaded in the CD-
ROM Changer.
O'
I
VOL BU5V
4
^#* Iml
VOLUME
Adjusts the headphone
audio output level.
BUSY INDICATOR
Lights when data is being
accessed from the disc or
when the CD-ROM Changer
is playing an audio CD.
■Q
DISC EJECT/CHANGE
BUTTONS (DISCI-5)
Press quickly to eject a disc tray/
press and hold for a moment to
load the disc.
ШШШШ

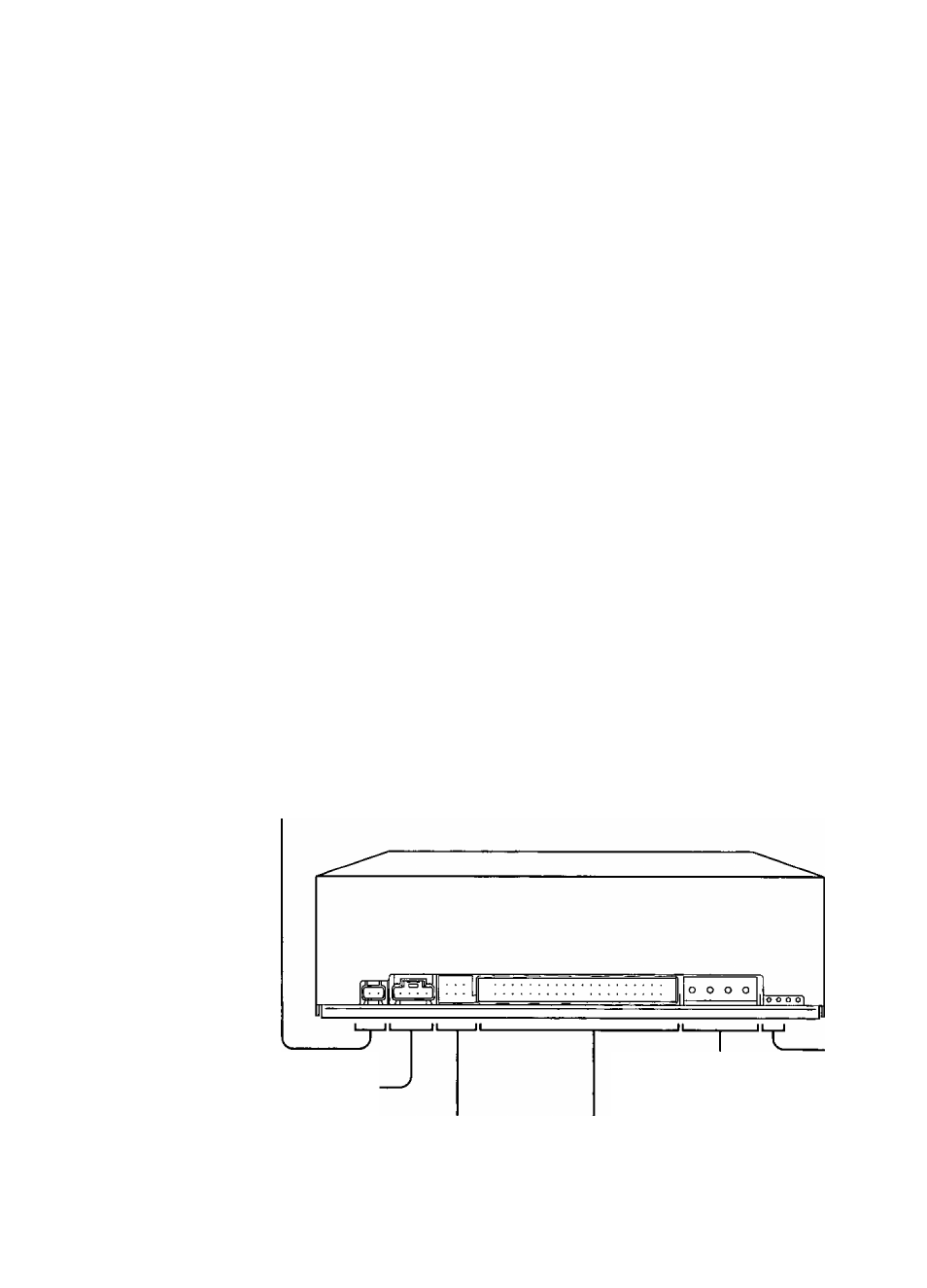

DIGITAL AUDIO CONNECTOR
Serves as a link from the CD-ROM
Changer to digital audio equipment.
AUDIO CONNECTOR
Serves as a link from the CD-ROM
Changer to an amplifier or sound board.
An audio cable is included for connecting
to a sound board.
DMA OFF terminal
Please refer to page 9
for detailed information
JUMPER PIN
These are used to set
the ID. Please refer to
pages 13 and 15 for
more information.
DC POWER CONNECTOR
Connects your CD-ROM
Changer to the power source
inside your computer via the
DC power cable (not included).
INTERFACE CONNECTOR
Connects your CD-ROM
Changer to your computer's
EIDE interface port via the
included interface cable.
