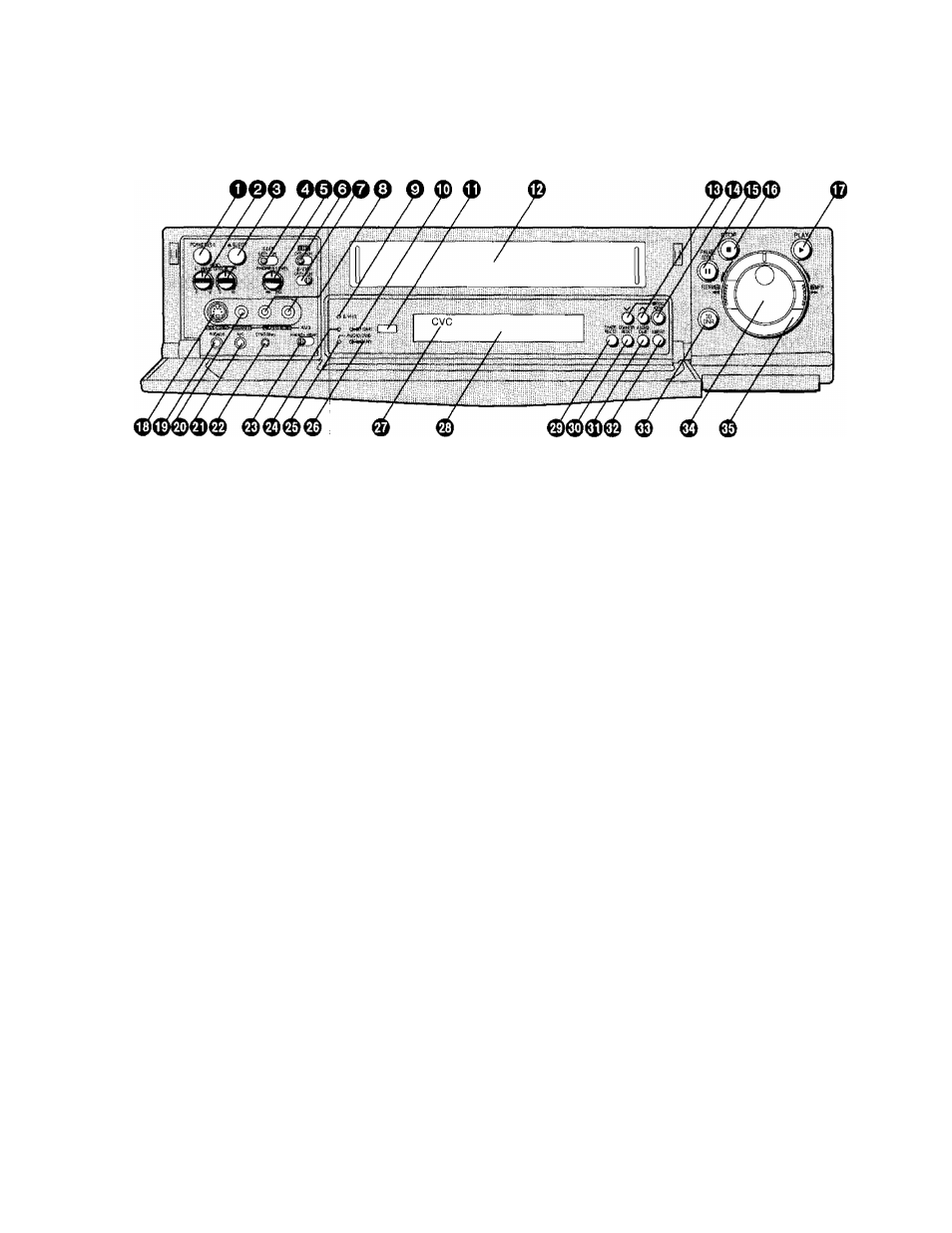

Controls and Connection Sockets

This gives a detailed explanation of th^ function of each button, switch and connection socket.

POWER 6/1 (VCR 6)

Press to switch the VCR from on to standby mode or

vice versa. In standby mode, the VCR is still
connected to the mains.

AUDIO REC LEVEL
To adjust the recording level to p4ak at +4 dB on the

recording level indicator.

EJECT
To eject a video cassette.

EDIT
OFF:
ON:

For normal use of the VCR.
Select this position when editing.

The picture quality is set to a status which is

suited to editing.

■

•The 3D DNR function ceases to work.
•The TBC does not function during slow

playback or still-picture playback.

•This must be set to ON vyhen performing

editing operations using jhe VITC code.

PHONES LEVEL
For adjusting the volume level of connected stereo
headphones.

© TBC

When the tape in the cassette is loose or damaged,
or when the tape movement is un$table during

recording or playback, the playback picture may

shake from side to side and the picture may become
distorted. In this case, activate th^ Time Base
Corrector by setting the TBC Switdh to ON, and the

picture will become stable and thq shaking will be
minimized.
• For normal use, set the TBC Swjtch to OFF.
• During playback, the picture may shake vertically or

horizontally. In such a case, set the TBC Switch to
OFF.

•This function wilt not work during NTSC playback.

O s-vHs

When recording on an S-VHS cassette tape, select
the desired recording format with this switch.

ON:

The recording will be made in the S-VHS

format.

•The S-VHS indicator lights up.

OFF: The recording will be made in the VHS format.

•The S-VHS indicator does not light up.

(It is possible to make a recording on an

S-VHS cassette tape in the VHS format, for
example, in order to play back the tape on
another VHS VCR.)

•When using VHS cassettes, the recording is made

in the VHS format irrespective of the position to

which this switch is set.

•When a tape which was recorded in the S-VHS

format is played back on a conventional VHS VCR,

it is not possible to obtain playback picture.

To connect the audio cable to a movie camera or to
another VCR.

Lights up when the S-VHS format.

When the 3D DNR function is on, this indicator is lit.

0 Infra-red Remote Control Receiver Window

Insert a video cassette here.
