ADJUSTMENT

Alarm Timing Adjustment

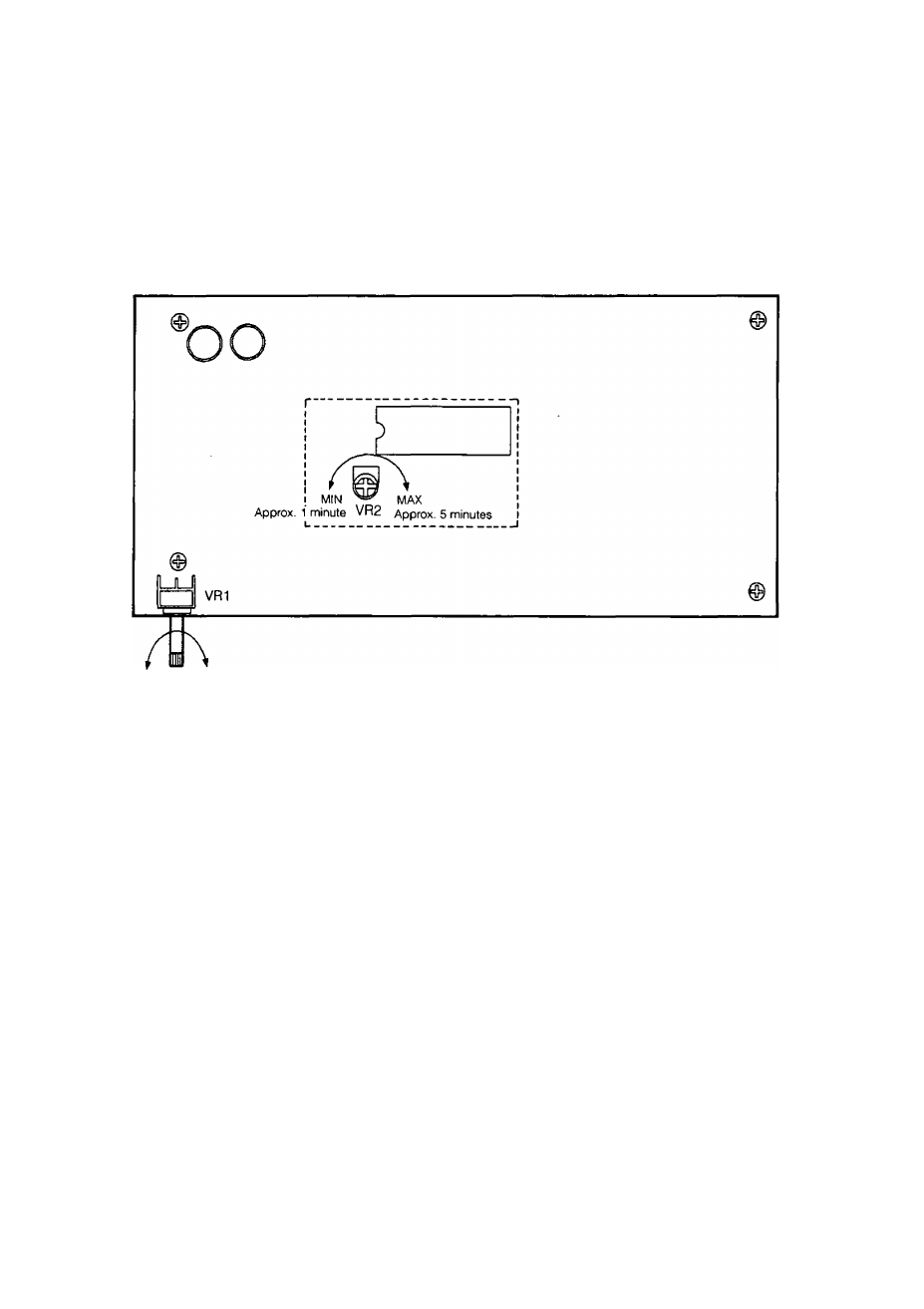

The alarm timing interval is preset to approx, 1 minute. And by turning the VR2, the alarm timing interval can be set from 1 to 5 min

utes.

1. Connect the Alarm Input Connector (7) with the Ground Terminal (GND). The alarm operation can be obtained and the Alarm

Indicator (3) blinks,

2. Adjust the alarm timing interval by turning the VR2 while observing the Alarm Indicator (3) status.

Note : In case of using this switcher with the Time Lapse VTR, be sure to adjust the alarm timing interval of this switcher so that

it is shorter than the Time Lapse VTR.
