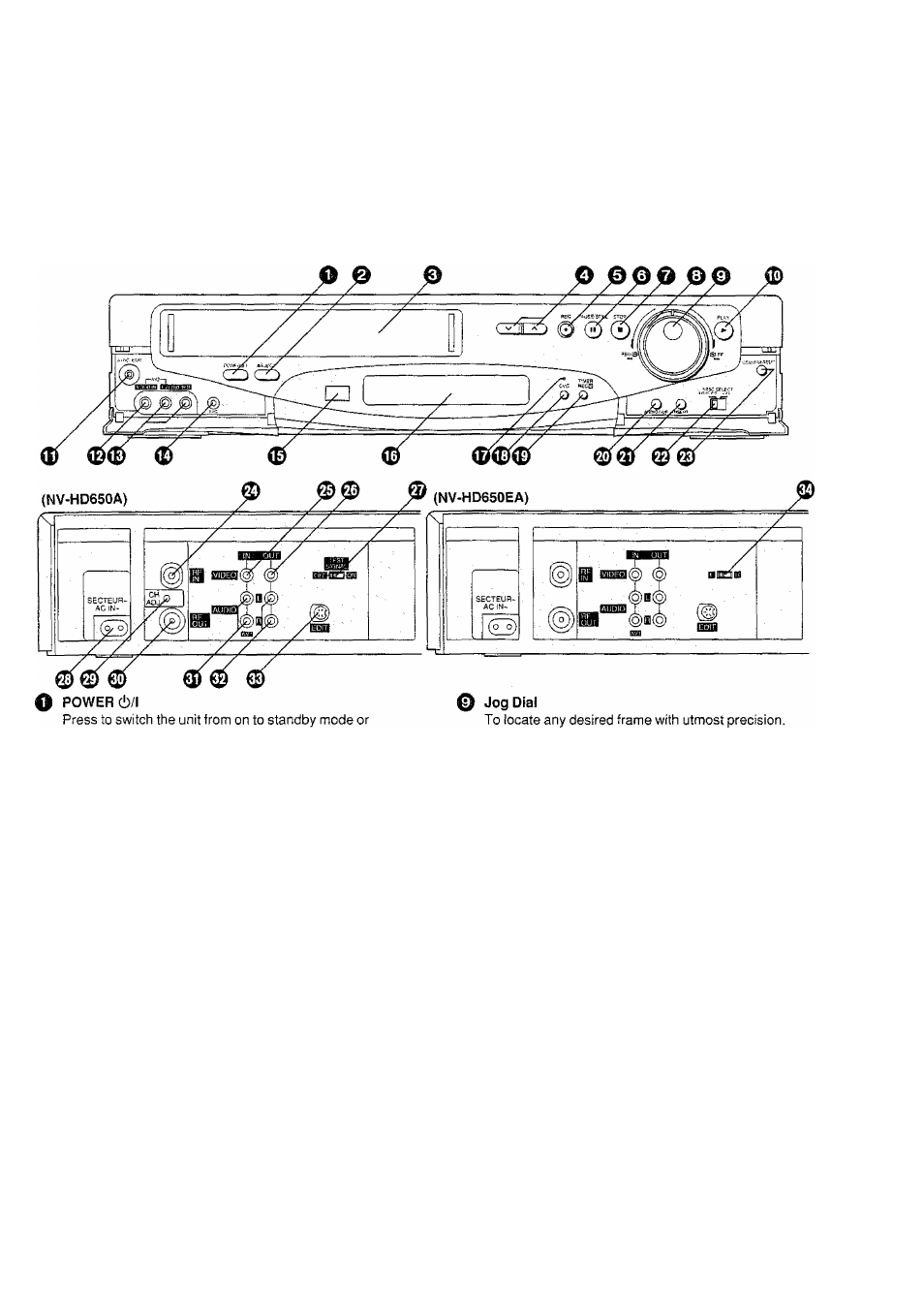

Controls and Connection Sockets
This gives a detailed explanation of the function of each button, switch and connection socket.
vice versa. In standby mode, the unit is still connected
to the mains.
0 EJECT
To eject a video cassette.
0 Cassette Compartment
Insert a video cassette here.
o
To select the required programme position (TV
station).
© REC
To start a recording.
© PAUSE/STILL
in the stop mode: Still picture (Jog/Shuttle mode).
During playback: Still picture (Jog/Shuttle mode).
During recording; To interrupt recording,
O STOP
To stop any playback or recording.
© Shuttle Ring
In the stop mode: To rewind or fast forward the tape.
In the playback mode:
To search picture backward or
forward.
In the still playback mode:
To adjust playback speed backward
or forward.
In the rewind or fast forward mode:
To obtain high speed picture.
® PLAY
To start playback. “O” is lit.
For the repeat playback function.
0 SYNC, EDIT
To connect a movie camera or another VTR equipped
with synchronized editing capability.
0 VIDEO IN (AV2)
To connect the video cable to a movie camera or to
another VTR.
0 AUDIO IN (AV2)
To connect the audio cable to a movie camera or to
another VTR.
0 MIC
To connect a microphone for recording. Once
connected, this socket has priority.
0 Infra-red Remote Control Receiver Window
0 Display
0 CVC Indicator
When the CVC function is on, this indicator is lit.
