Panasonic PV C923 - Manual (Page 8)

FRONT REAR
2 3 4 5 6 7 8
-20
16 17 18 19

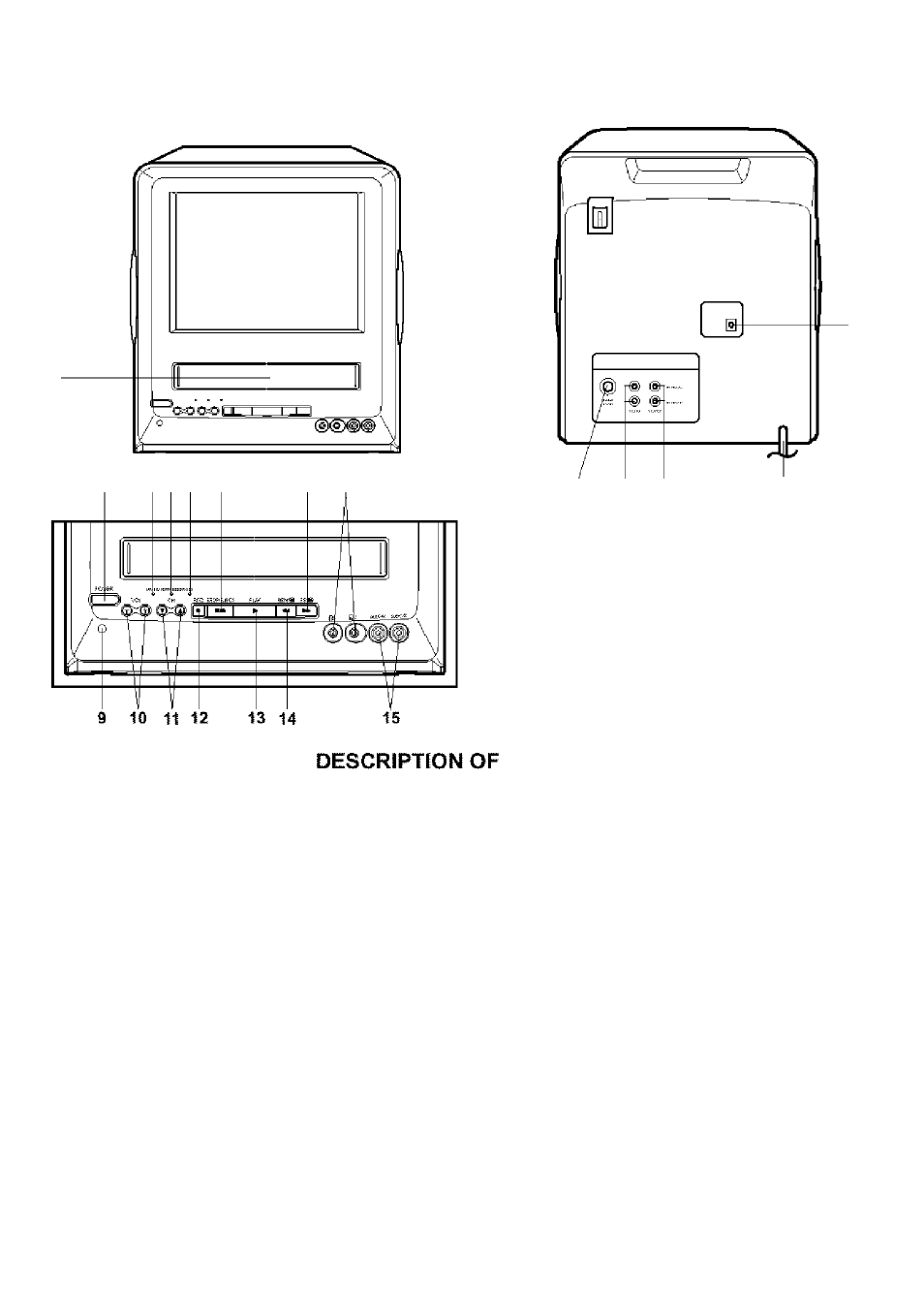

FRONT:
1. Cassette Loading Slot - To insert or remove a
video tape.
2. POWER Button - Press to turn the TVA/CR on or off.
3. POWER indicator - Light when the power is turned
on.
4. PROG TIMER indicator - Lights when the unit is in
the Timer Record Mode.
5. REC Indicator - Lights when the TVA/CR is
recording.
6. STOP/EJECT Button • Press once to stop the tape
in any mode. Press again to eject the tape.
7. FF (Fast Forward) Button - In the Stop mode, this
button rapidly winds the tape forward. In the Play
mode, this button activates forward search.
8. PHONES Jacks • Plug monaural headphones or an
earphone with an 1/8" miniplug into these jacks for
private listening. Two persons can be abie to use
these jacks at the same time.
9. Remote Sensor - Signals from the Remote Control
are received here.
10. VOL - / + Buttons - Press to raise or lower the
volume of the sound.
11. CH A/T Buttons - Press to select a channel for
viewing or recording.
8
12. REC Button - Press once to start normal recording.
Additional presses activate One-touch Timer
Recording.
13. PLAY Button - Press to play a prerecorded tape.
14. REW (Rewind) Button - In the Stop mode, this
button rapidly winds the tape backwards. In the Play
mode, this button activates reverse search.
15. Audio/Video in (LINE 2} Jacks - Audio and video
signal cables from an external source can be
connected here.
REAR;
16. VHF/UHF Antenna Jack - Connect the 75 ohm
coaxial cable from the antenna or Cable TV service
to this jack.
17. AUDiO/VIDEO OUT Jacks - Used to output audio
and video signals to a TV, amplifier or VCR.
18. AUDIO/VIDEO IN (LINE 1) Jacks - Audio and video
signal cables from an external source can be
connected here.
19. AC Power Cord - Connect to a 120V, 60Hz outlet,
20. DC Input Jack - Connect the 12V DC car cord
(supplied) here for DC operation.
