replacing
the
fuse
in
the
car

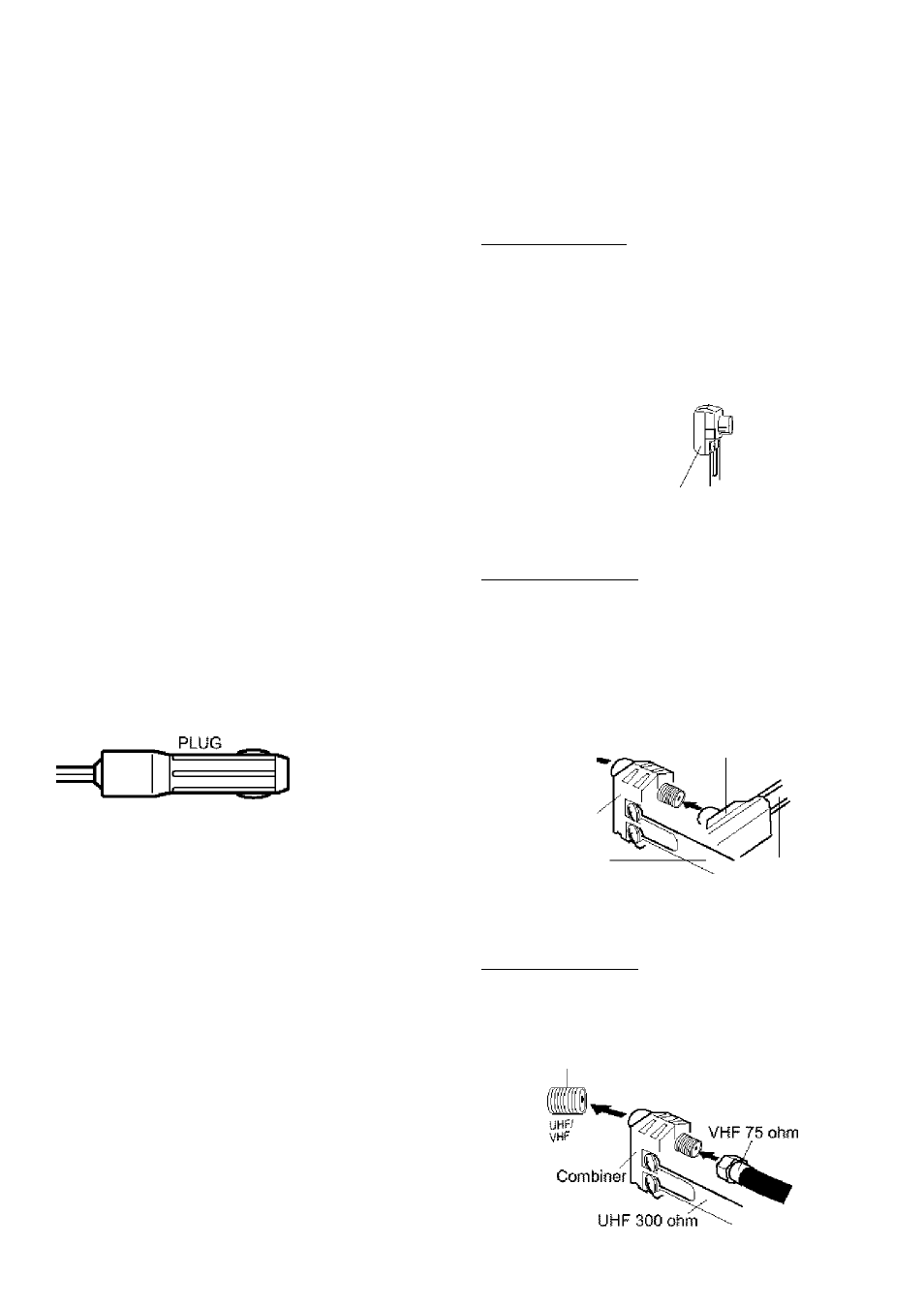

BATTERY CORD PLUG
ff the fuse In the car battery cord plug blows, replace It
with a new 8 A fuse (Fast Blow Type) as shown below.
Unscrew the tip of the plug to remove.
A
Please use correct fuse.
8A FUSE
ANTENNA CONNECTIONS
NOTES: • ALWAYSTURN OFFTV/VCR FIRST BEFORE
SWITCH ON OR OFF THE IGNITION OF CAR
ENGINE.
• Mate sure that the negative terminal of the
battery is grounded. This set is designed for
use with negative ground system only.
• Use the supplied car cord only,
• When the TVAfCR Is not in use, always
disconnect It from the car cigarette lighter
socket to avoid a battery drain.
• If the TVA/CR is to be directly connected to a
12V DC power source, for example, recrea
tional vehicle (RV) applications, make sure
the power cord is connected after the ignition
switch to avoid battery drain.
• Do not operate the TVA/CR if the car battery
is weak. Peak current from the car alternator
could blow the DC fuse.
• Check the battery’s charge level regularly
when the TV/VCR is used in a vehicle.
If you are using an indoor or outdoor antenna, follow
the instructions below that correspond to your
antenna system. If you are using a cable TV service
(CATV), see page 12 for Cable TV connections.
Combination VHF/UHF Antenna
(Singie 75 ohm cable or 300 ohm
twin-lead wire)_____________________
Connect the 75 ohm cable from the combination VHF/
UHF antenna to the Antenna Jack,
If your combination VHF/UHF antenna has a 300 ohm
twin-lead wire, the use of the 300-75 ohm Matching
Transformer may be necessary.
Connect the VHF 75 ohm cable and UHF 300 ohm
75 ohm
Coaxial
Cable
Antenna Jack
UHF/
WF
Antenna Jack
UHF/
WIF
300-75 ohm Matching Transformer
Combination VHF/UHF Antenna
(Separate VHF and UHF 300 ohm
twin-lead wires)____________________
Connect the UHF 300 ohm twin-lead wire to the Combiner
(not supplied). Connect the VHF 300 ohm twin-lead
wire to the 300-75 ohm Matching Transformer. Attach
the Transformer to the Combiner, then attach the
Combiner to the Antenna Jack.
Antenna Jack
UHF/
VHF
Combiner
UHF 300 ohm
300-75 ohm Matching
Transformer
VHF 300 ohm
Separate VHF/UHF Antennas
(75 ohm VHF cable and 300 ohm UHF
twin-lead wires)____________________
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the Combiner (not supplied). Attach
the Combiner to the Antenna Jack.
Antenna Jack
1 1
