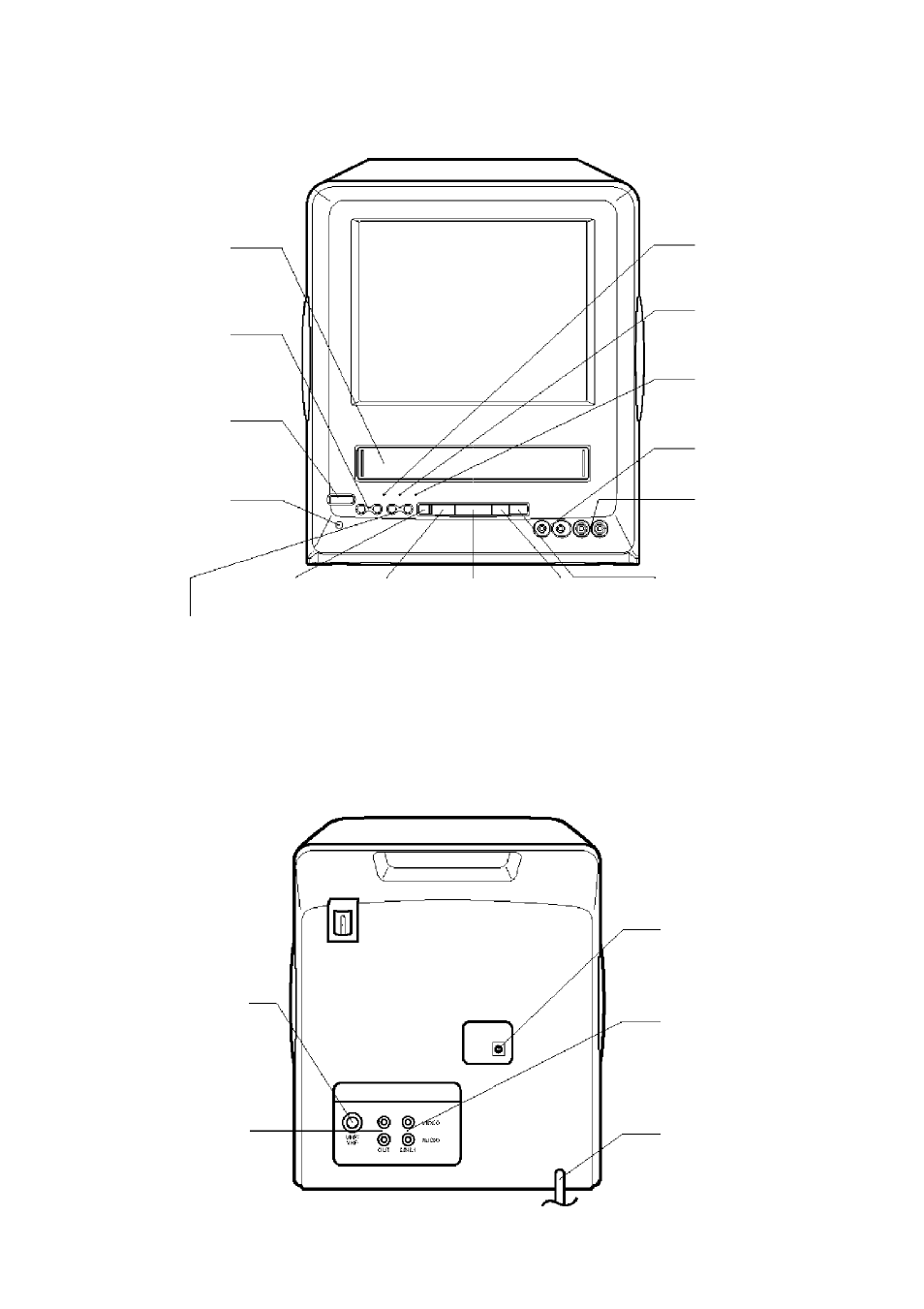

INDEX OF CONTROLS
Front
Cassette Loading Slot
VOLUME +/-
See pages 14,15
POWER
See pages 13,14, 20
Remote Sensor
See page 10
POWER Indicator
Light when the power is
turned on.
PROG TIMER Indicator
Lights when the unit is in
the Timer Record Mode.
REC Indicator
Lights when the TVAi'CR
is recording.
PHONES Jacks
See page 15
Audio/Video in Jacks
See page 24
CHANNEL
A/T
REC
See pages See pages
15,21,22
................
STOP/
EJECT
21,22, 24 See pages
20
,
21
PLAY
See pages
20
,
21
REWIND/
SEARCH
See pages
20
,
21
FIRST
FORWARD/
SEARCH
See pages
20
,
21
Rear
VHF/UHF Antenna Jack
Connect the 75 ohm
coaxial cable from the
antenna or Cable TV
service to this jack.
Audio/Video Out Jacks
Used to output audio and
video signals to a TV,
amplifier or VCR.
DC Input Jack
Connect the 12V DC car cord
(supplied) here for DC
operation.
Audio/Video in Jacks
Audio and video signal
cables from an external
source can be connected
here.
AC Power Cord
Connect to a 120V, 60Hz
outlet.
30
