Replacing the film or film cartridge
When the unit detects the end of the film, the following message will be displayed.
FILM EMPTY
Replace the film or film cartridge with a new one. To order a replacement part, see page 75.

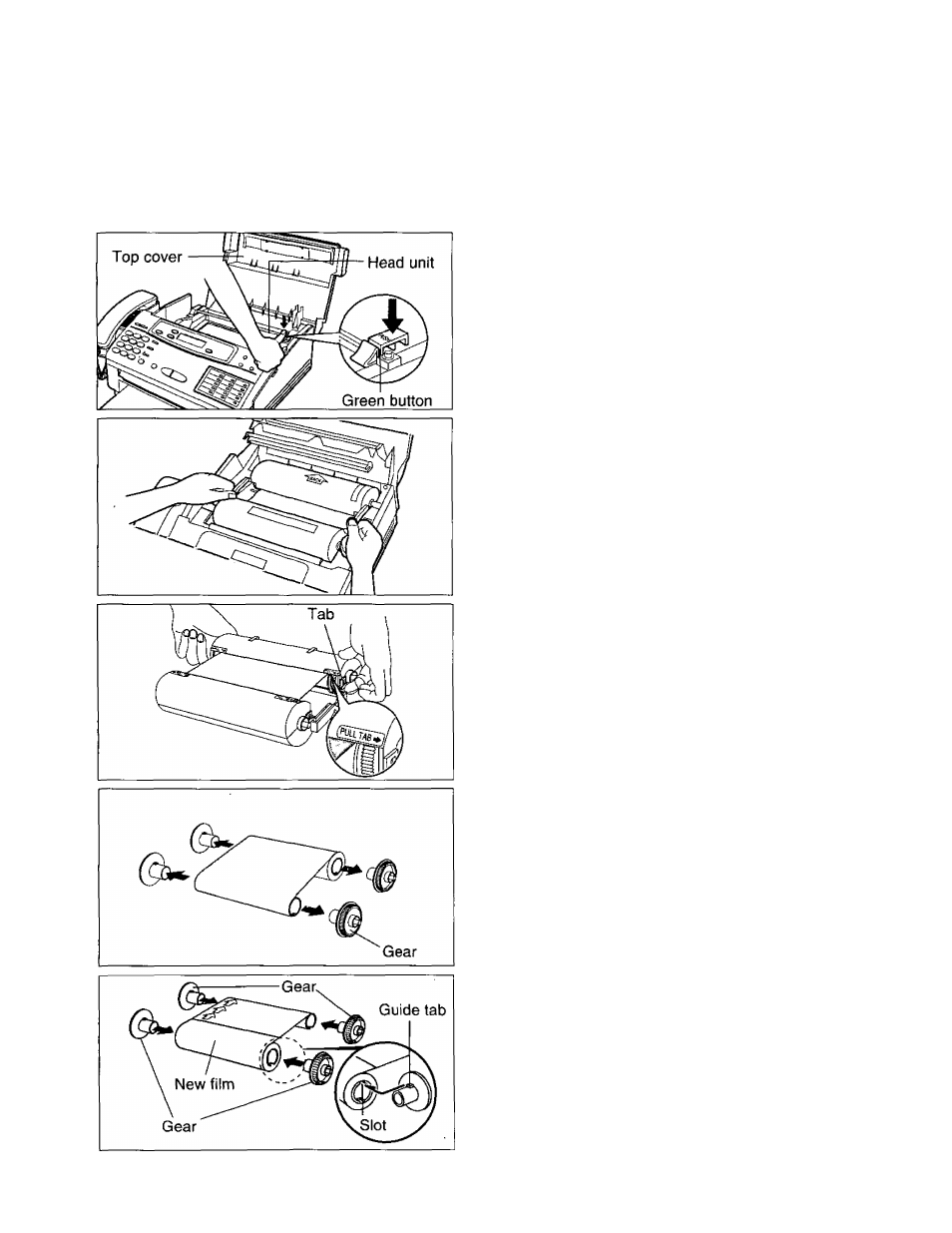

Open the top cover.
1
2
Press the green button on the right marked
“PUSH” and lift up the head unit.
Take out the film cartridge.
• If you purchased a film cartridge (Model no.
KX-FA132) for replacement, skip to step
11
.
•To replace only the film, go to step 4.
4
5
Turn over the cartridge so that the “PULL
TAB” mark is facing up.
Unlock the four tabs of the cartridge, open
the cover of the cartridge and take out the
used film.
Pull out the four gears from the used film
cores.
Insert the four gears into the new film cores
so that the guide tab of each gear fits into
the slot of the film core.
68
