1. Installation and Connection

Installing the film cartridge

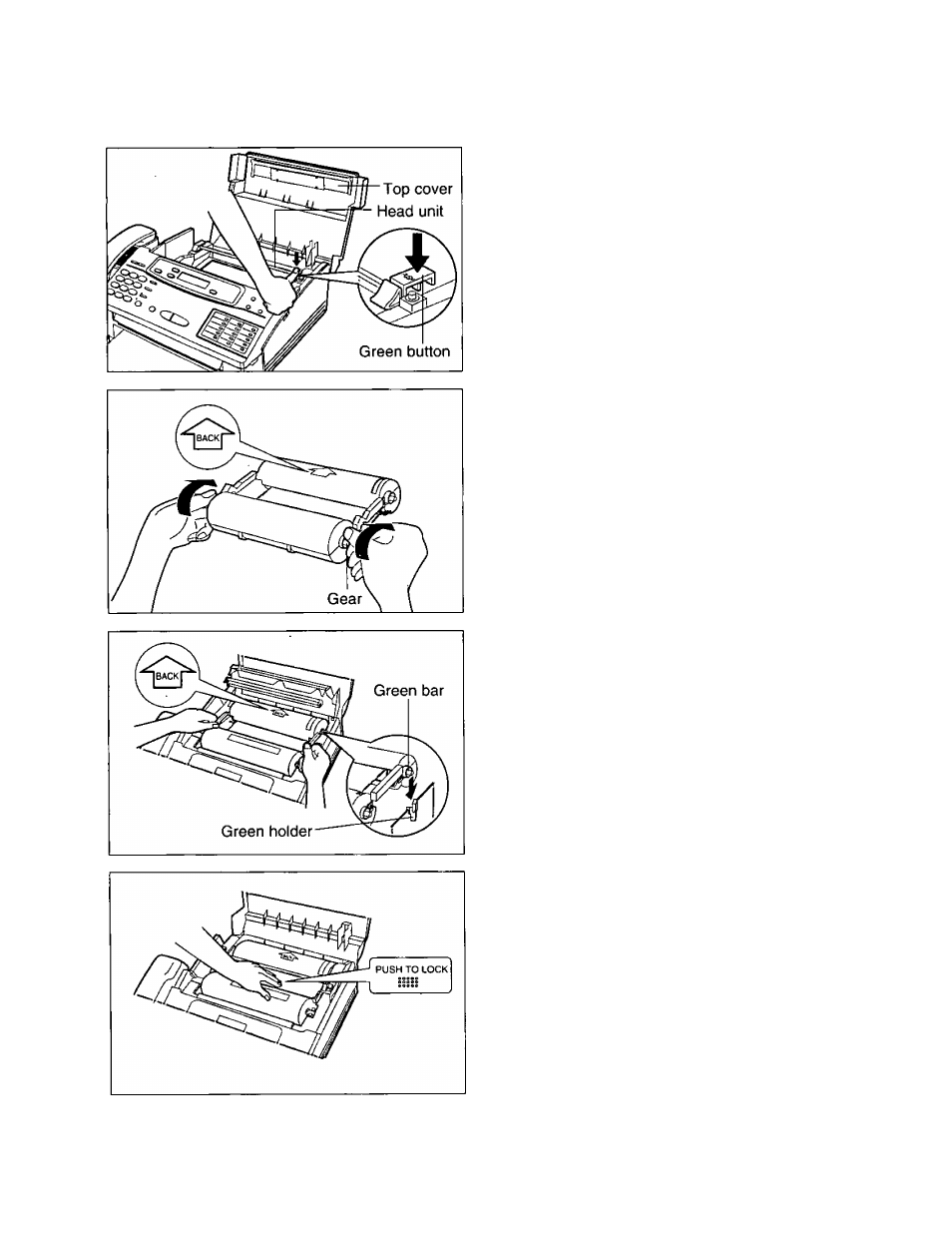

Open the top cover.

Press the green button on the right marked

“PUSH” and lift up the head unit.

Place the cartridge with the “BACK” indicator

facing up and tighten the film by winding the
gears if there is slack.

Incorrect

Correct

___

Slack

Place the “BACK” side of the cartridge into

the unit, by inserting the pins on the sides of
the green gears into the green holders. Then

lower the front of the cartridge into place.

Press the head unit down firmly to lock in
place.

Close the top cover securely by pushing
down on both sides.

Note:

Because the length of the included film is 30 meters, it is recommended to purchase 200 meter length film for
replacement soon. To order, see page 75.
