Center and level

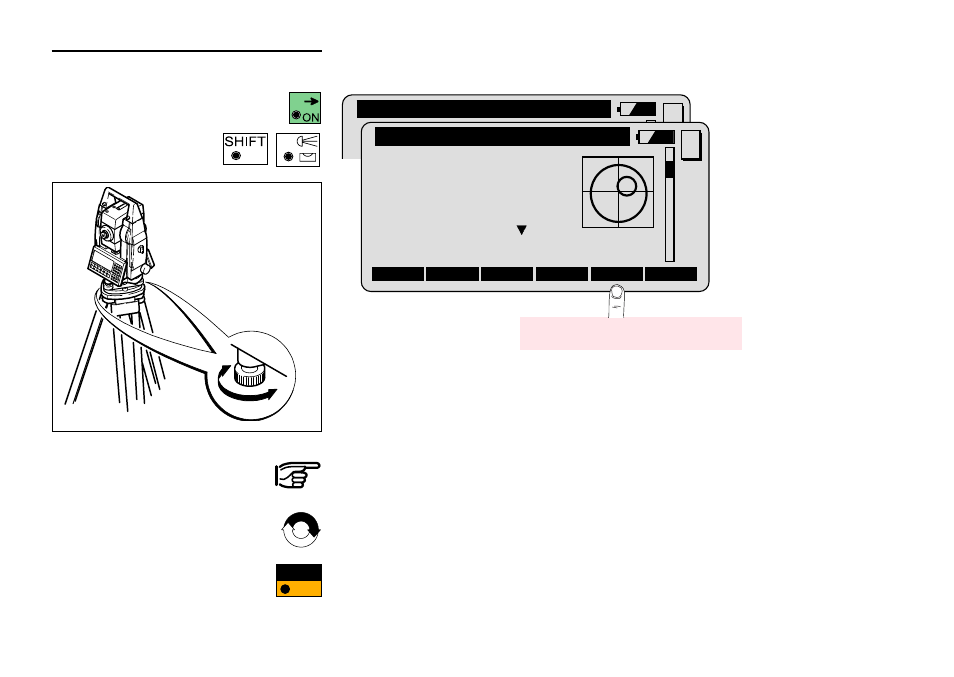

To center and level your instrument, activate the electronic level
dialog.

1. Center the instrument, using the laser plummet: a red laser dot

is projected on the ground.

2. Level up using the footscrews.

With the electronic level, you don’t need to turn the instrument
through 90°/180°.

MAIN\

MAIN MENU

MC

Repeat 1. and 2. until instrument is centered and leveled.

To continue.

F1

CONT

Laser Plummet: ON/OFF

1100QS01

ELECT. LEVEL

Tilt L

:0,0004 g

Tilt T

:0,0012 g

L Plummet :50%

CONT

L.PL-

MC
