Working area, Automatic reflector search – Leica Geosystems TPS1100 Professional Series - System Field Manual User Manual

Page 67

Text mode
Original mode

Working Area

In RCS mode it is possible to define a rectangular working area
within which the instrument searches for the reflector if the reflector
was not found by the default search methods.

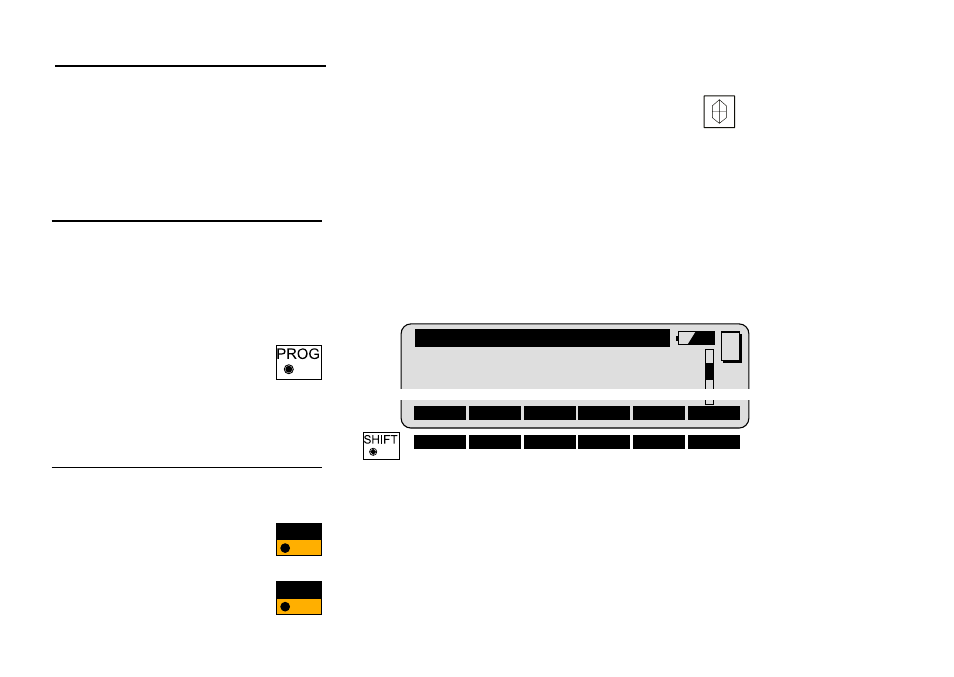

Press the PROG fixed key to access the RCS related functions.

PROG\ Program selection

1 Free Station

COMPS

JSTCK WORK+ LAST

RCS-

Activate/Deactivate Working Area

To activate the defined Working Area.

To deactivate the defined Working Area.

WORK+

WORK-

HZ/V

WORKA

QUIT

Automatic reflector search

The RCS searching window is rectangular (default: Hz 30gon /

V 15gon). If the reflector is found the icon

is displayed.

The dimensions of the RCS search window can be defined in the
instrument configuration (see function "RCS Searching Window" in
chapter Instrument map).
