Check Orientation

The Check Orientation dialog allows to check the orientation to a
known backsight point, and to reset the orientation if necessary.

Enter the Backsight Id. If available, the coordinates are
automatically retrieved from the data job.
Aim to backsight point and compare the angles:
Azimut Calculated Azimut between station and backsight.
Hz

Current orientation

∆∆∆∆∆Hz

Difference between calculated azimut and current
orientation.

To return to the dialog from which FNC has been started.

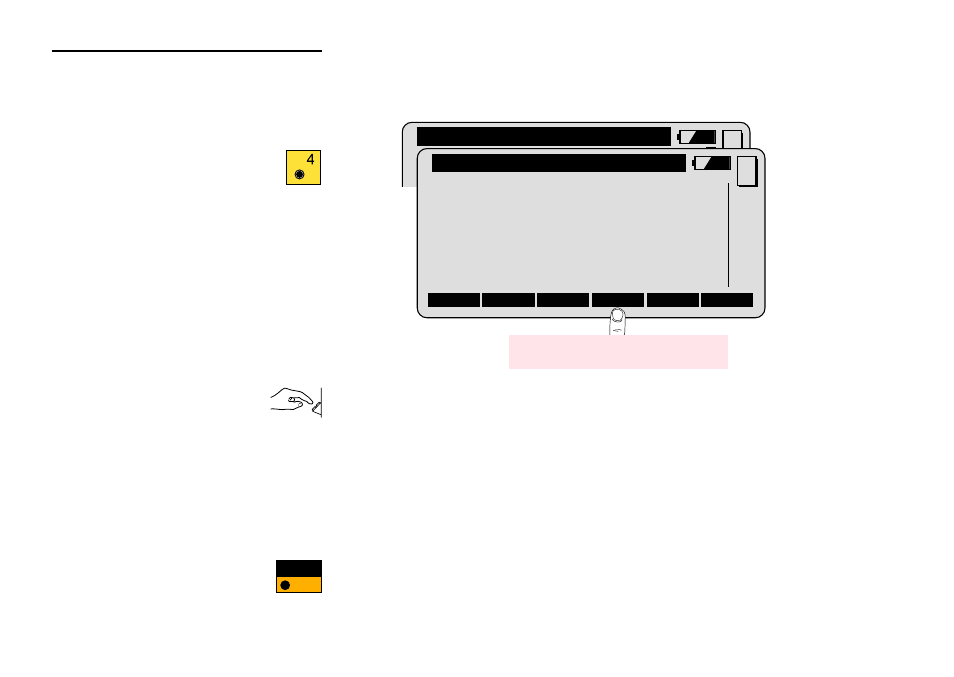

FNC\ Function selection

FNC\ Check Orientation

Station Id : STN

Bscks. Id : BS

Refl. Ht. :

1.600 m

Azimuth

: 95.6670 g

: 95.6650 g

∆∆∆∆∆Hz

: 0.0020 g

CONT DIST POSIT SET

VIEW

LAST

CONT

Reset the orientation
