Orientation

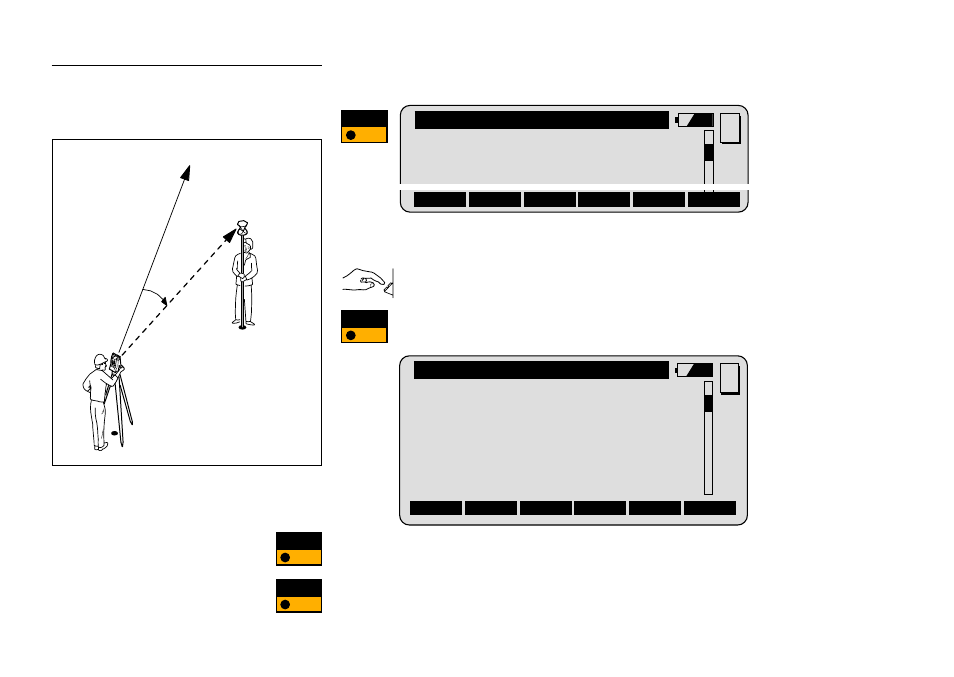

Call the dialog for setting the instrument orientation.

Aim to the backsight point.

Enter the azimuth value (e.g. 30.0000g).

To set the orientation and return to the station data dialog.

To record the station data in the measurement job (optional).

To set the station and continue to the measurement dialog.

F4

SetHz

F1

SET

F3

REC

F1

CONT

MAIN\ Enter Station Data

Station Id :

ST1

Inst. Ht. :

1.600 m

Stn. East :

4132.143 m

Stn. North :

3093.967 m

Stn. Elev. :

450.070 m

Hz

:

30.000 g

CONT

REC SetHz IMPOR

MC

MAIN\ Set Hz to any angle

Set Hz-direction

Hz

:

12.1300 g

MC

SET

Hz=0 HOLD

1100QS06

ST1

Azimuth = 30.000 g
