6

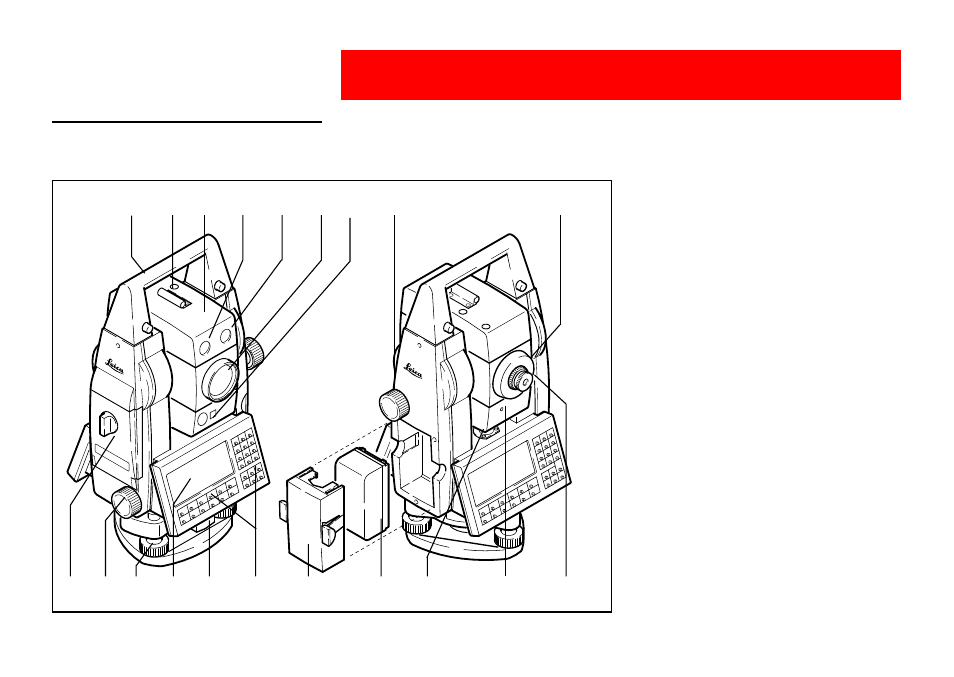

1 Carrying handle

2 Optical sight

3 Telescope with integrated EDM,

ATR, EGL and PowerSearch

4 EGL flashing diode (yellow)

5 EGL flashing diode (red)

6 Coaxial optics for angle- and

distance measurement;

Exit port of red laser beam

(only R-model instruments)

7 PowerSearch

8 Vertical drive screw

9 Focusing ring

10 Memory card housing

11 Horizontal drive screw

12 Footscrew (tribrach)

13 Display

14 Tribrach securing knob

15 Keyboard

16 Batteryholder

17 Battery

18 Bull's-eye bubble

19 Laser emission indicator lamp

(yellow) - only XR-instruments

20 Exchangeable eyepiece

Getting started

Instrument description

2

1

3

4

5

6 7

9

8

12 13

15

11

16

1100Z01

14

19

20

17

10

18
