Page 55

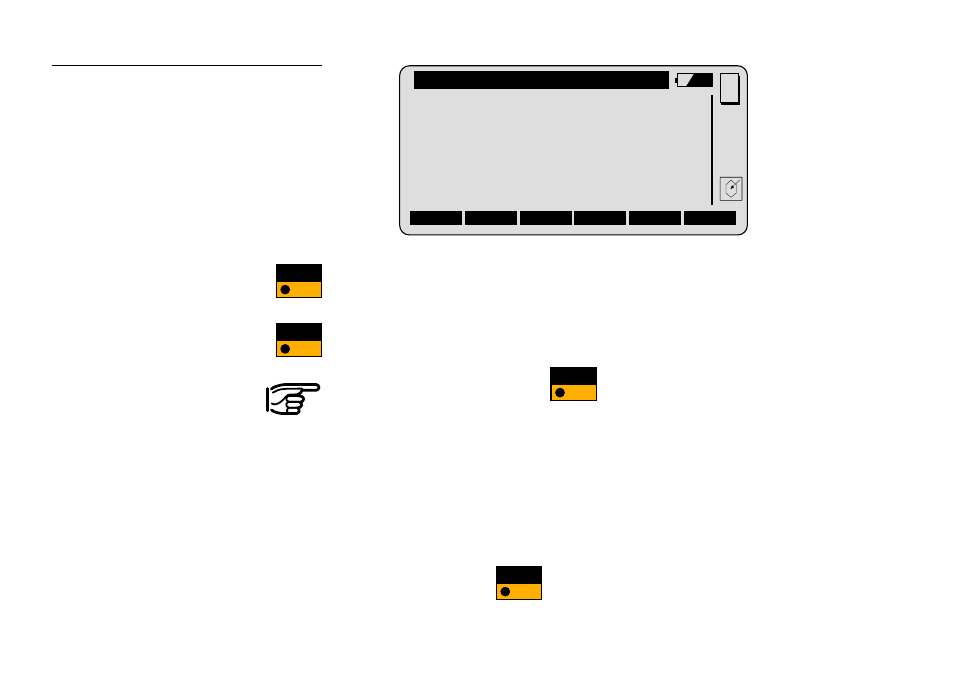

Example: Measure & Record dialog

ALL

DIST

To automatically position the telescope to the prism centre,
measure angles and distance, and record measurement data.

To automatically position the telescope to the prism centre,
measure and display the distance to the prism.

ATR is also active in the function, for setting the orientation
to a reflector with following procedure:

• Approximatively aim at the reflector.
• Enter the azimuth value. ATR will position the telescope to the

reflector centre.

• Set the orientation.

If you want to use to set the orientation to a target without
prism, you first need to switch ATR off.

SetHz

Meas\ Measure & Record

Point Id

123

Refl. Ht

1.700 m

222.3444 g

82.3467 g

Horiz.Dist :

----- m

Elev.Diff. :

----- m

ALL

DIST

REC

SetHz >DISP
