32 EDxtreme User Instructions
There are three soft keys on the first display and four on the second display. The soft
key functions are described below:
Units Changes the displayed unit of measure. Each press advances the display
through this sequence; lbf, kgf, N, custom 1, custom 2.
Print Outputs serial data to peripheral devices attached to COM 1.
C.All Clears the peaks on all EDXs currently in communication with the remote.
Clear Clears the current peak value of the active EDX.
UZ.All Resets all EDXs to calibration zero reference point.
Z.All Zeros all EDXs currently in communication with the remote.
Setup Accesses the Setup menu shown in Figure 6.1 .
Config Accesses the Config menu shown in Figure 6.2 .
6.2 Communicator Setup Menu
The Communicator Setup menu can be accessed using the softkey or the Remote
Setup hardkey.

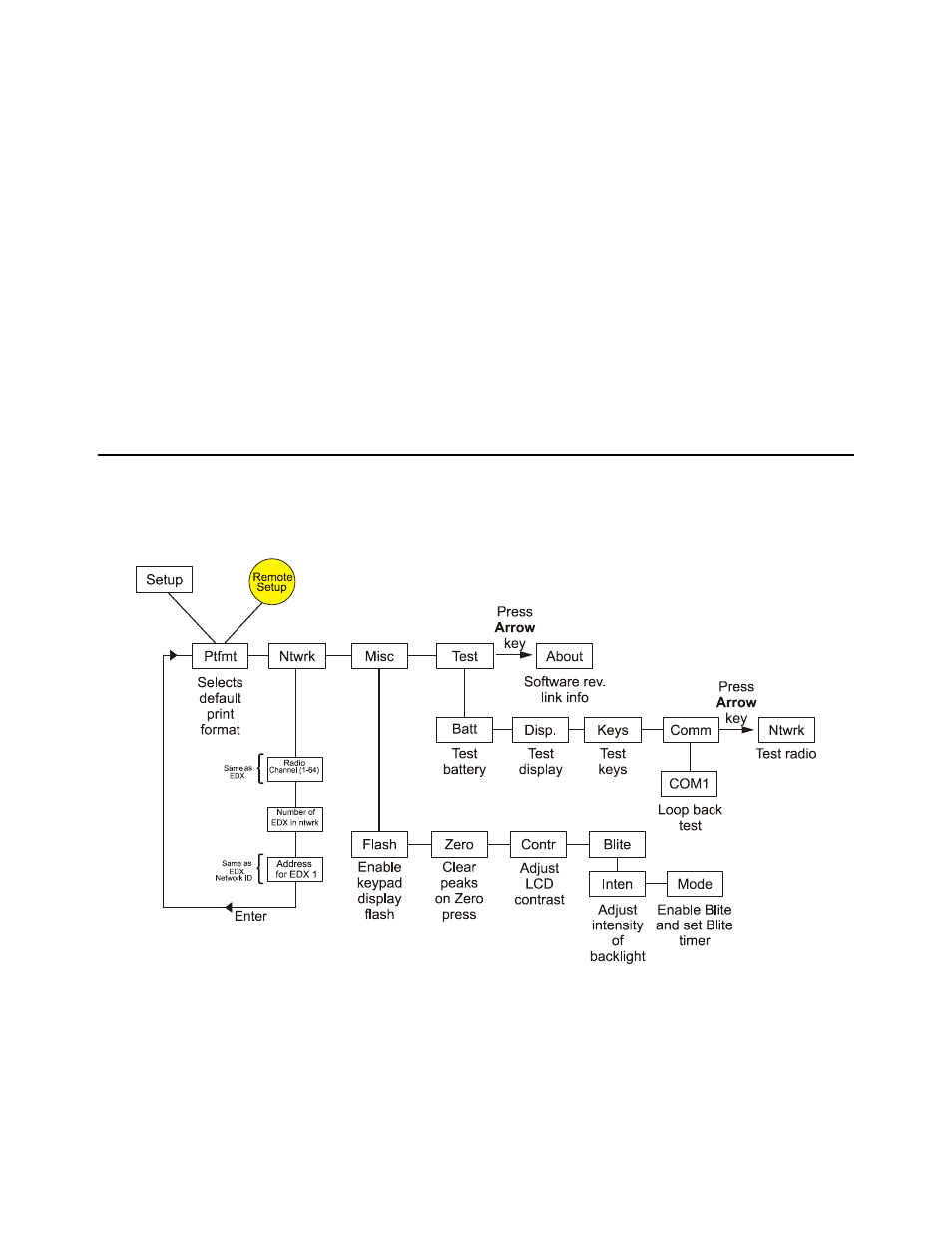

Figure 6.1 Communicator Setup menu
Ptfmt Select from print formats 1-7. See Communicator Print Formats on page
35 .
Ntwrk Setup the network.
First choice is Radio Channel #. Can pick 1-64. All EDXs set to this same
number will communicate with this Communicator.
