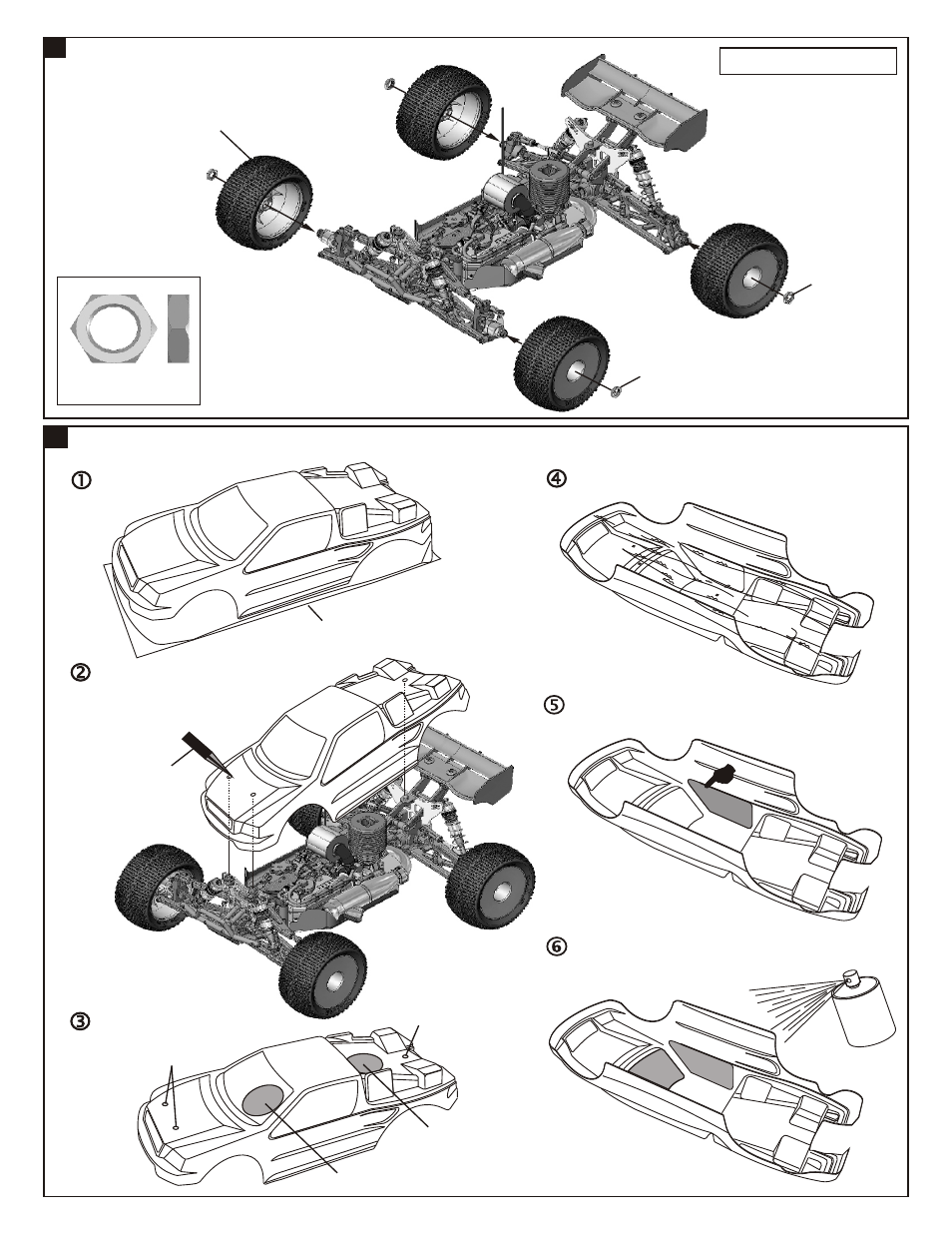

ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB

Assembly for both right and left side.

Cut out the body as shown.

Use a neutral detergent to remove any dirt and oil.

Mask the windows from the inside with masking tape.

Paint the body with polycarbonate spray paints.

Spray Paint

Making two holes on the front and
one hole on the rear for body posts.

7mm

Cut out for engine.

Hole for fuel tank.

ASSEMBLY OF THE BODY AND PAINTING

Body Reamer
( Not included)

Before cutting and making holes on the body,
put the unpainted body on the chassis
to confirm the mounting position and
location for holes and cutouts.

40687

.....x4

40550
Wheel Nut

Tire and Wheel assembly.

40550
